TRI-CLAMP FITTING SIZES
|
Tube Outer Diameter |
Flange Outer Diameter |
Tube Inner Diameter |
|
1.5" |
1.98" |
1.37" |
|
2" |
2.52" |
1.87" |
|
3" |
3.58" |
2.87" |
|
4" |
4.68" |
3.83" |
|
6" |
6.57" |
5.78" |
|
8" |
8.57" |
7.78" |
|
10" |
10.57" |
9.73" |
|
12" |
12.57" |
11.81" |

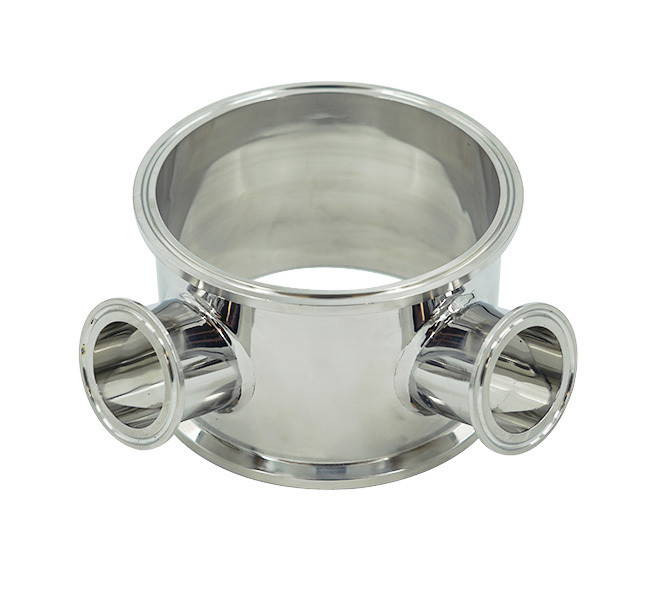

The USA Lab Spool With Sight Glasses includes 3 choices of Tri-clamp as well as 2 X 2" TC ports for sight glasses. The spool with sight glasses can be added to spools and tanks to create a way to view material, liquid or anything that is inside the column and tanks!
|
Included in Kit |
|
2 x 2" Fused Sight Glass |
|
2 x 2" Buna-N Gasket |
|
2 x 2" High Pressure Tri-clamp |
For Technical Support, Questions, or Other Issues Please Email or Call Us!
Fittings and steel do NOT carry any warranty. Fittings and steel items with a defect or other issue must be identified within 30 days of arrival and USA Lab MUST be contacted. After 30 days, there will be no replacements sent for fittings or steel items with a defect or issue. Cross threading, misuse, improper storage, or improper care of fittings/steel are considered user error and are not covered under warranty.
