USA Lab N4 12L Full Bore Short Path Distillation Turnkey Kit with 100mm Head - USA Made Glass




Brand :

MSRP: $15,690.00 - $16,690.00
$12,799.00 - $13,499.00
SKU:
A-SD12L-N4TK
Flask Sizes:
12L | 100MM Main | 24/40F Side
Head Joint Size:
100MM Main | 45/50F Top | 34/45M Side
Condenser Joint Size:
34/45F Inlet | 34/45M Outlet
Isolation Adapter Joint Sizes:
34/45F Inlet | 34/45M Outlet | 24/40M Bottom
Cold Trap Joint Sizes:
34/45F Inlet | 34/45F Outlet
Optimal Capacity:
3000-8000mL
Batch Time:
4-10 Hours
Main Body Flow Rate:
1000-2000 grams/hour
USA-HM-12L Mantle Power:
220-240V 50/60Hz 15A
Heater Chiller Power:
110-120V 50/60Hz 15A
Vacuum Pump Power:
110-120V 50/60Hz 15A

Our 12L Full Bore Turnkey Short Path Distillation Kit is made with high quality USA Made Glass and a wide 100mm head to allow for excellent distillationhigh production, and consistent results.

This distillation kit comes with a large 100mm distillation head, a 34/45 vacuum take-off adapter to allow for easy switching of receiving flasks, a 34/45 cold trap for large amounts of condensing, and full-bore attachments to allow for high pulling vacuum.

Choose the best quality at the best value with this lattice supported high quality glass distillation kit.



A-SD12L-N4TK Specifications

Model

A-SD12L-N4TK

Flask Size

12L / 12,000ML

Flask Joint Sizes

100MM Flange Main | 24/40F Side

Distillation Head Joint Sizes

100MM Flange Bottom | 45/50F Top | 34/45M Side

Condenser Joint Sizes

34/45F Inlet | 34/45M Outlet

Isolation Adapter Joint Sizes

34/45F Inlet | 34/45M Outlet | 24/40M Bottom Discharge

Cold Trap Joint Sizes

34/45F Inlet | 34/45F Outlet

Optimal Capacity

3,000-8,000mL

Batch Time

4-10 Hours

Main Body Flow Rate

1,000-2,000 grams/hour

Footprint

80" x 24" x 40" Including Pump / Chiller

USA-HM-12L Heating Mantle Specs

300°C | 3000RPM | 1400W

USA-RHC-7L Heater Chiller Specs

-20°C to 150°C | 6.8L | 1.5Kw Heat

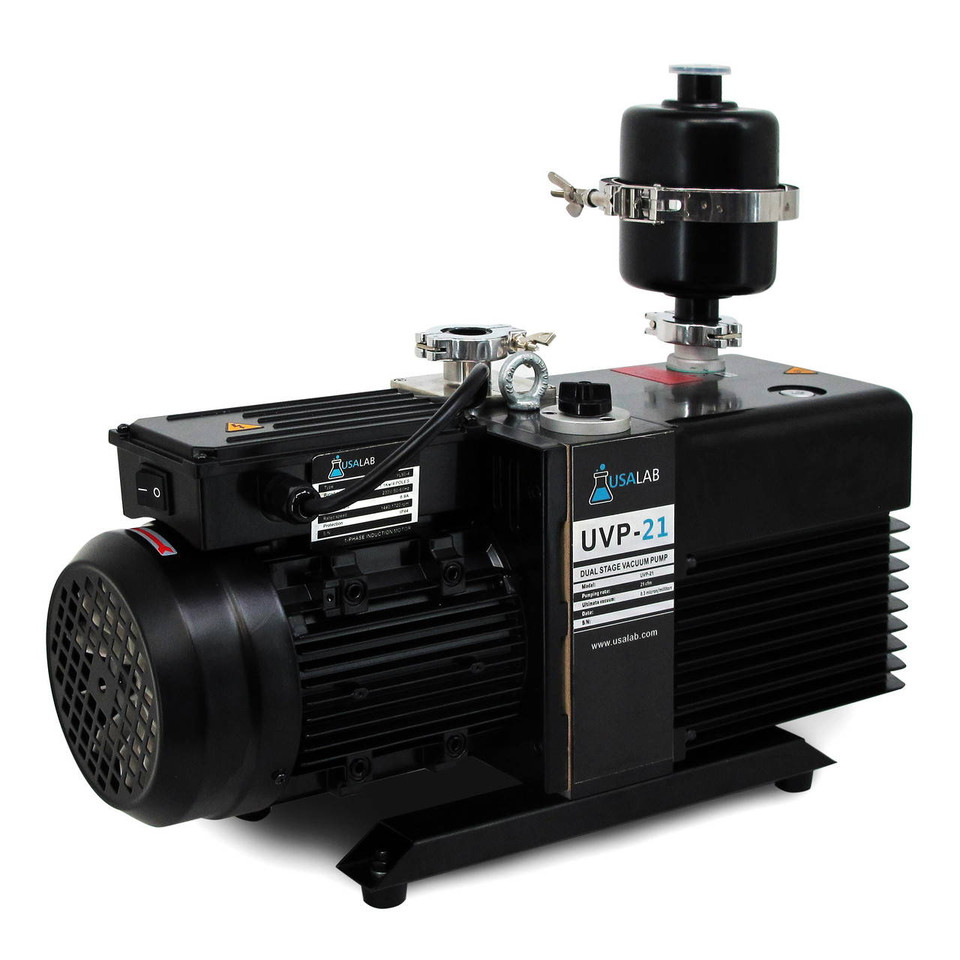

UVP-21 Vacuum Pump Specs

21CFM | 0.3 Micron | UL Recognized

Heating Mantle Power

220-240V 50/60Hz 15A

Heater Chiller Requirements

110-120V 50/60Hz 15A

Vacuum Pump Requirements

110-120V 50/60Hz 15A

Warranty

1 Year (Pump carries a 2 Year Warranty)





A-SD12L-N4TK Packing List

Name

SKU

Quantity

USA Lab 12L Digital Heating Mantle With Insulating Top

USA-HM-12L

1

20mm x 64mm Rare Earth Magnet

REE-20x64

1

USA Lab Black Powder Coated Mantle Stand
16" x 14" x 6" - Made in the USA

M-STAND-16X14X6

1

USA Made N 12L 2 Neck Round Bottom Flask
100MM Center - 24/40 Side

N-12LRBF-100MM-2440-2N

1

USA Made 12L 24/40 Thermowell

N-12-2440-THERMO

1

Chemglass 100MM FEP-Silicone O-ring

CG-147-41

1

Chemglass 100MM Stainless Steel Duran Flange

CG-141-02

1

USA Made N4 100MM Jacketed Distillation Head
45/50 Top - 34/45 Side

N4-100MM-HEAD

1

USA Made N4 Single Jacketed Swing Arm Isolation Adapter w/ Valves 34/45 Sides - 24/40 Bottom

N-3445-2P-SWING

1

USA Made Two Port Jacketed Swing Arm Adapter Cow
34/45 (Optional)

N4-3445-ISO

1

USA Made N4 Angled Cold Trap - 34/45

N4-3445-CT

1

USA Made N Cold Trap Lid

N-COLDTRAP-LID

1

USA Made N 12L Short Path Condenser 34/45

N-12L-3445-CONDENSER

1

USA Made Short 45/50 Thermowell for Distillation Heads

N-12-22L-4550-THERMO

1

USA Made 5L 1 Neck Round Bottom Flask - 24/40

N-5LRBF-2440-1N

1

USA Made 2L 1 Neck Round Bottom Flask - 24/40

N-2LRBF-2440-1N

2

USA Made 2L 1 Neck Round Bottom Flask - S35/20

N-2LRBF-S3520-1N

1

DigiVac Bullseye Precision Vacuum Gauge

BPG

1

USA Lab USA-TM Premium Digital K-type Thermometer w/ Probe

USA-TM

1

USA Lab UL Listed 21CFM UVP-21 Corrosion Resistant
2-Stage Vacuum Pump

UVP-21

1

USA Lab -20°C to 150°C 7L Compact Recirculating Heater Chiller 110V

USA-RHC-7L

1

KF-25 to KF-25 x 1/8" FNPT Adapter

KF25X238

1

USA LAB KF25 90 Degrees

KF2590

1

USA Lab KF25 3-Way Tee

KF25-3WAY

1

KF25 Pressure Release Valve Stainless Steel

KF25PRV

1

USA LAB KF25 Right Angle Valve

KF25RAV

1

Aluminum KF25 Vacuum Pump Flange Centering Ring

KF25RING

6

Vacuum Pump Clamp KF25

VPCKF25

6

KF25 Bellow Hose 36"

KF25BELLOW36

1

Eisco Jack Laboratory 20cm x 20cm

CH0642B

1

Eisco Extra Large Laboratory Stand Kit
12.4" X 8" w/ 39.5" Rod

CH0652DKIT

3

Stainless Steel Rod for Lattice Supports

6FT-SSROD

3

Premium Boss Head Clamp

P-BHC

15

Eisco Blue Large Clamp Retort 3 Prong

PRCMP07

4

Eisco 8" Chain Clamp for Lab Stand

PRCMP21

1

4" Diameter Extension Support Ring

SUPPORTRING

1

Lab Cork Stand Ring

CORK2L

3

Chemglass GL-14 Cap with Aperture

CG-195-01

4

Chemglass Removable GL-14 Straight Hose Connectors

CG-198-02

4

Inland 19 Vacuum Pump Oil 1 Gallon

INLAND191GAL

1

Propylene Glycol USP Kosher 100% Concentrate 5 Gal

PG5GAL

1

USA Lab KF25 to 34/45 PTFE Adapter

KF25TO3445

1

USA Lab Stainless Steel S35 Pinch Clamp

S35-CLAMP

1

Heating Mantle Manual

1

Heater Chiller Manual

1

Vacuum Pump Manual

1







  HEATING MANTLE INFO
  USA Lab 12L W/ Heating Top - 300°C 3000RPM | 220-240V 60Hz 15A 800W | SKU:USA-HM-12L
  HEATER CHILLER INFO
 USA Lab -20°C to 150°C 7L Compact Recirculating Heater Chiller 110V USA-RHC-7L USA Lab -20°C to 180°C 7L Compact Recirculating Heater Chiller 220V UHC-720
  VACUUM PUMP INFO
USA Lab UL Listed 21CFM UVP-21 Corrosion Resistant 2-Stage Vacuum Pump USA Lab UL Listed 21CFM UVP-21 2-Stage Vacuum Pump | 110-120V 60Hz 15A | SKU:UVP-21
  VACUUM GAUGE INFO
DigiVac Bullseye Precision Vacuum Gauge

DigiVac Bullseye Precision Vacuum Gauge

  THERMOMETER INFO
USA Lab USA-TC Premium Digital K-type Thermometer w/ Probe

USA Lab USA-TM Premium Digital K-type Thermometer w/ Probe



VACUUM GREASE INFO



Apiezon PFPE 501 High Temperature Vacuum Grease 100g





Apiezon PFPE 501 High Temperature Vacuum Grease 100g
