SPECIFICATIONS |
|||
|

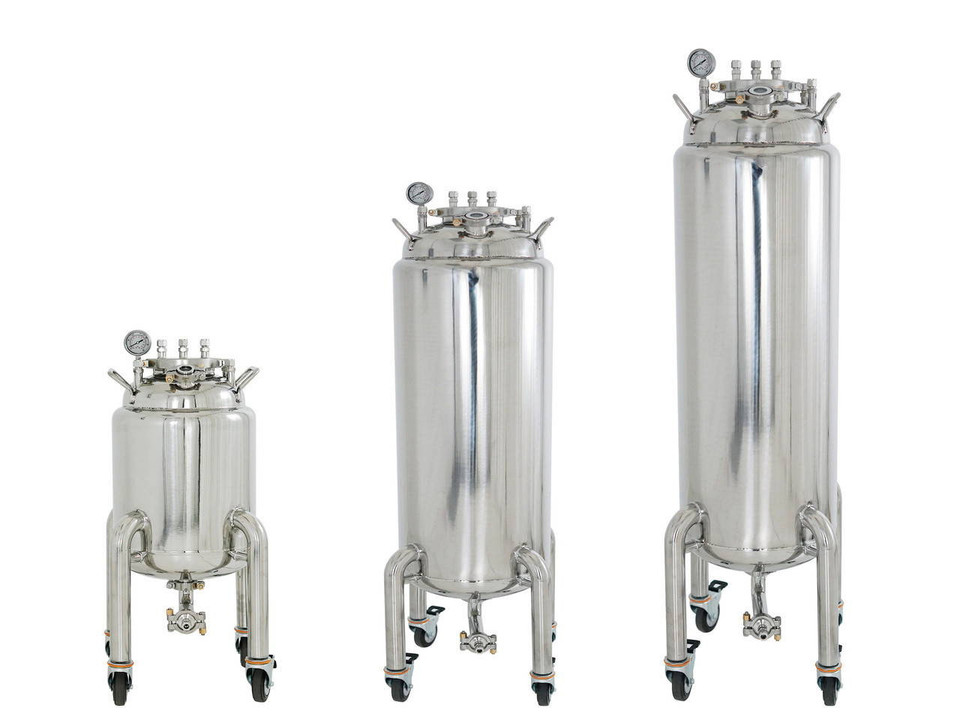

Model |
SOLV-50LB-JACK-C |
SOLV-100LB-JACK-C |
SOLV-200LB-JACK-C |
|
Size |
50LB |
100LB |
200LB |
|
Water Capacity |
25L |
60L |
100L |
|
Butane Capacity |
24.04LB |
48.08LB |
96.16LB |
|
Jacket Capacity |
7L |
18L |
24L |
|
Coil Capacity |
.45L |
.78L |
1.29L |
|
Weight |
91LBS |
148LBS |
208LBS |
|
External Dimensions |
19" x 19" x 32" |
19" x 19" x 49" |
22" x 22" x 56" |
|
Internal Dimensions |
12" x 12" x 13.5" |
12" x 12" x 31" |
15" x 15" x 39" |
|
Shell PSI Rating |
-80°C at 260PSI | 150°C at 260PSI |
||
|
Jacket PSI Rating |
150°C at 87PSI |
||
|

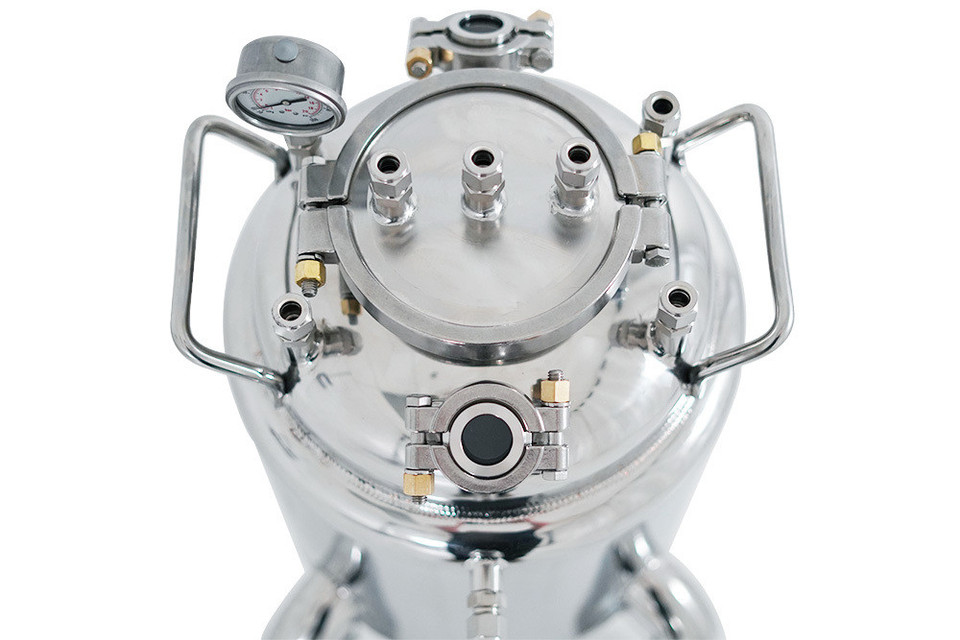

Lid Connections |
6" TC w/ (2x 1/2" Compression for Coil), (1x 1/2" Compression for Dip Tube) |
||
|
Top Connections |
4x 1/2" Compression Ports |
||
|
Bottom Connection |
1.5" Tri-Clamp |
||
|
Jacket Connections |
2x 1/2" Compression |
||
|
|
|||
|
PACKING LIST |
|||
|
Item |
50LB |
100LB |
200LB |
|
Main Tank |
1x 50lb |
1x 100lb |
1x 200lb |
|
Meta Sight Glass 1.5" TC |
2 |
2 |
x |
|
Condensing Coil w/ 6" Lid |
1 |
1 |
1 |
|
1.5" HP Tri-Clamp |
4 |
4 |
2 |
|
2" HP Tri-Clamp |
x |
x |
2 |
|
6" HP Tri-Clamp |
1 |
1 |
1 |
|
1.5" Buna Gasket |
4 |
4 |
2 |
|
Meta Sight Glass 2" TC |
x |
x |
2 |
|
6" Buna Gasket |
1 |
1 |
1 |
|
1.5" End Cap w/ Compression |
1 |
1 |
1 |
