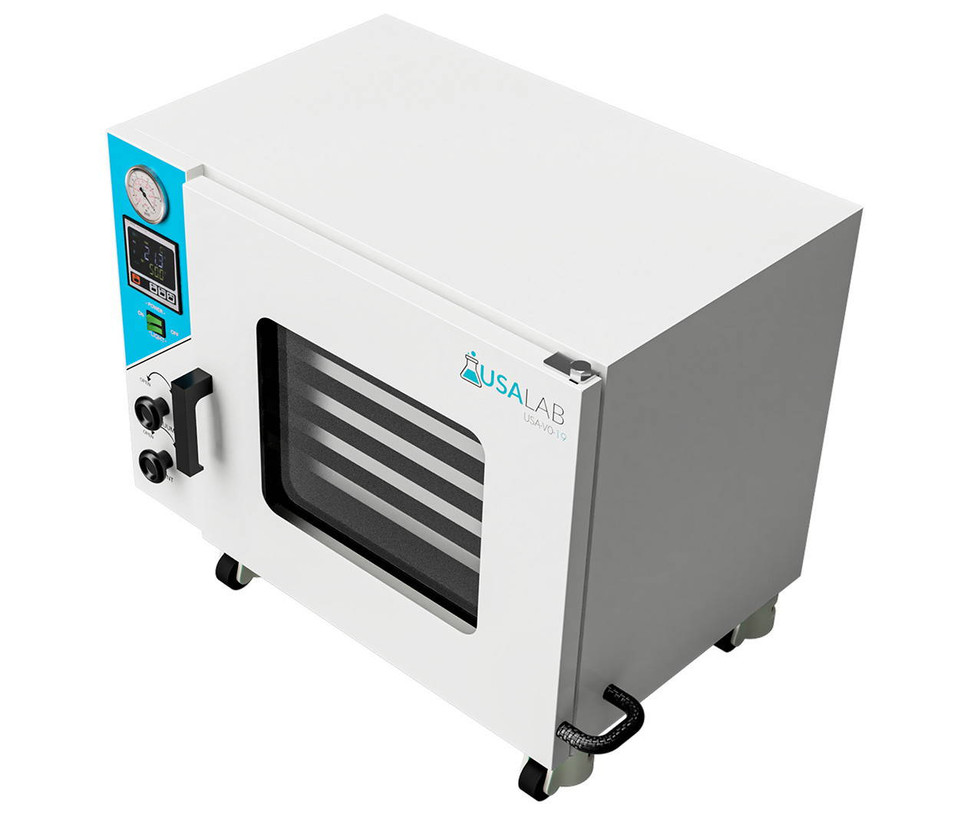

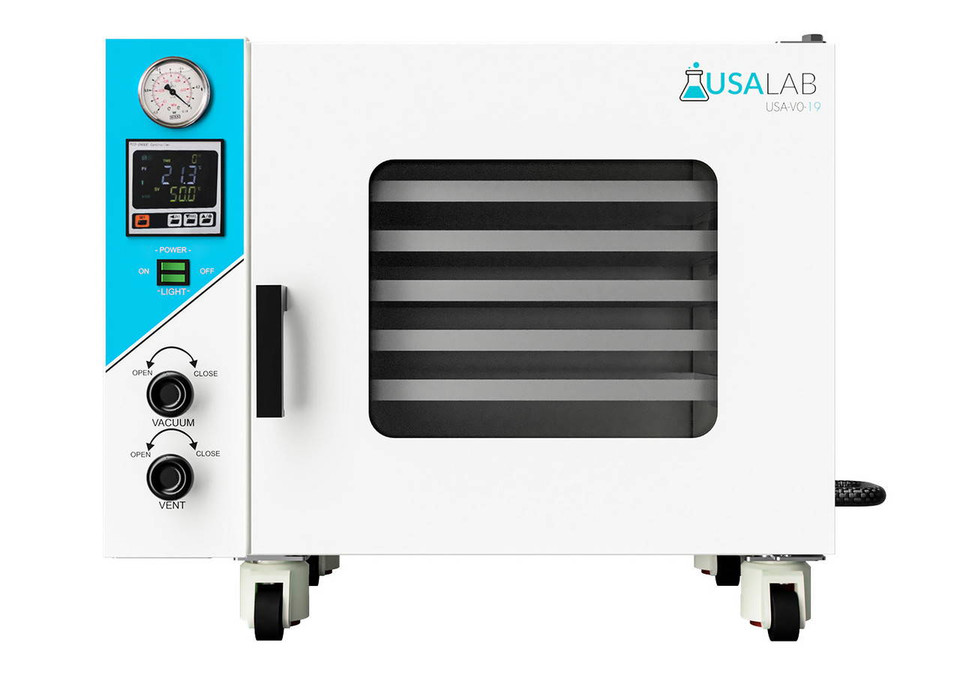

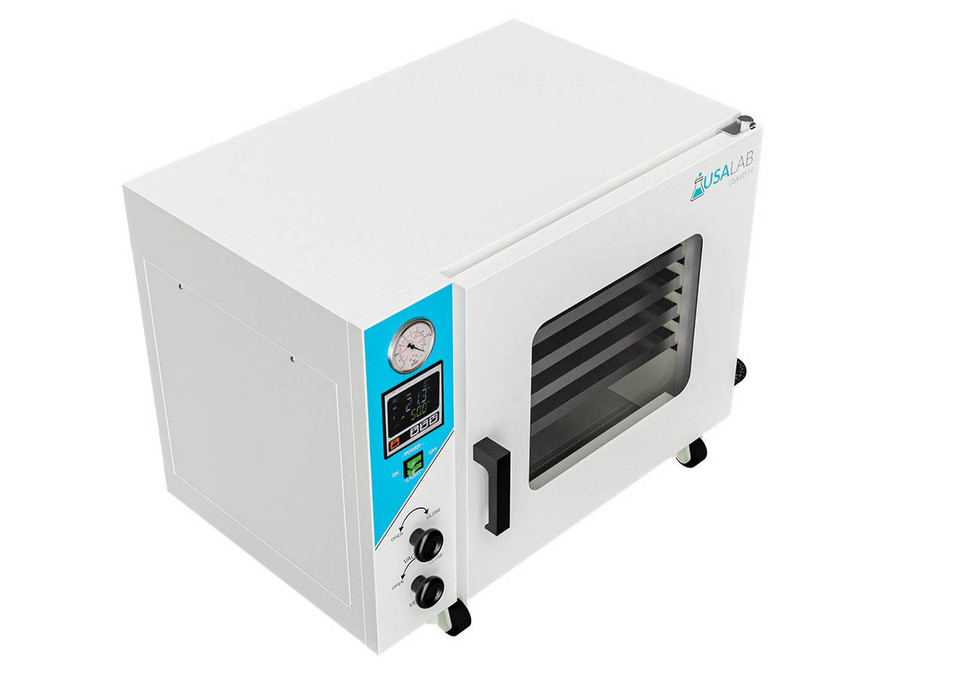

Introducing our USA Lab vacuum ovens, now with ETL Certifications! These ovens stand out as top-of-the-line products compared to others in the market, all while maintaining an affordable price point. We take pride in offering features such as an all stainless-steel tubing interior, oil-filled vacuum gauge, stainless steel vacuum vent & valve, and a reliable 1-year warranty.
Ease of use is a priority for us, and our ovens can be conveniently stacked, allowing manifold vacuum lines to be connected effortlessly. Not only do they heat the bottom, back, left side, and right side, but they also enable users to significantly reduce drying times by creating a uniform vacuum level inside the oven.

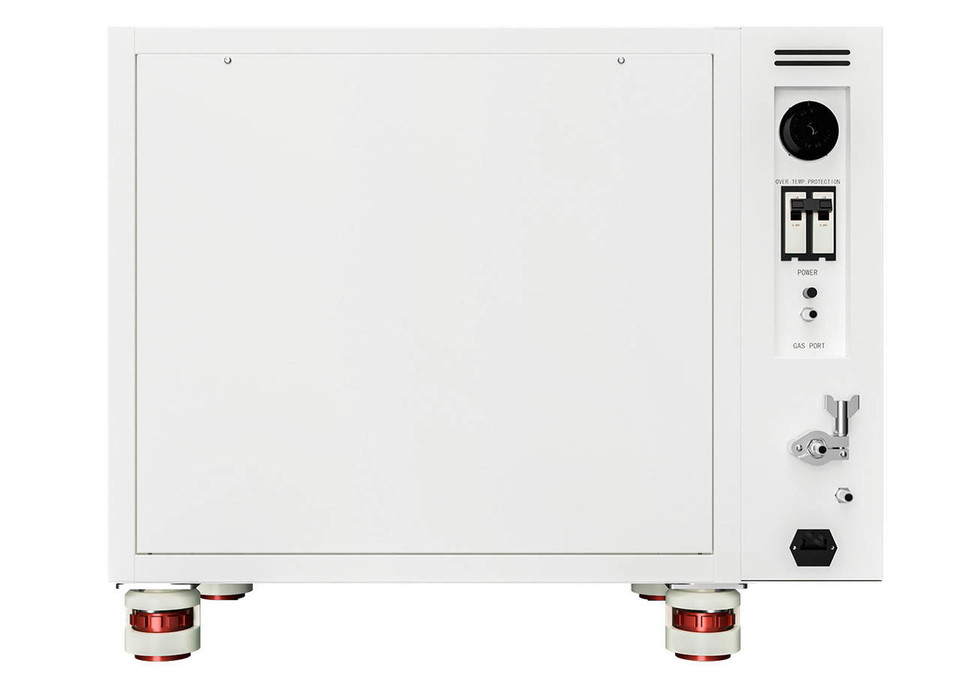

Safety is paramount, which is why our ovens come with essential features like a circuit breaker and an over temperature controller. We use only the highest quality parts to ensure better performance and longevity of your equipment.
Upgrade your equipment today and experience the remarkable USA Lab quality difference! With ETL Certifications, you can have confidence in the safety and reliability of our vacuum ovens.
Upgrade today and see the USA Lab quality difference!
This Oven comes with 5 individual shelves.
|
Specifications |
|
|
Model |
USA-VO-19-ETL |
|
Capacity |
53.8L / 1.9 cu ft |
|
Input Power |
1,450W |
|
Power Requirements |
110-120V | Single Phase | 60Hz |
|
Temperature Range |
RT+10°C to 200°C |
|
Temperature Accuracy |
± 1°C |
|
Lowest Vacuum Depth |
1 Torr / 1,000 Microns / 1 mmHg(a) |
|
Vacuum Port Size |
KF25 / NW25 |
|
Wattage |
1,400W |
|
Plug Type |
NEMA 5-15p |
|
Heated Walls |
Back, Bottom, L Side, R Side |
|
Shelves Included |
5 Shelves |
|
Shelving Configurations (Max) |
10 Shelves |
|
Light Strip |
White LED |
|
Interior Material |
SS304 |
|
Chamber Dimensions (in) |
16.4" x 14.7" x 13.6" |
|
Exterior Dimensions (in) |
28.7" x 22.1" x 23.3" |
|
Packing List |
||||
|
Model |
USA-VO-19 |
USA-VO-19-TK |
USA-VO-19-ETL |
USA-VO-19-ETL-TK |
|
Oven Model |
Non ETL |
Non ETL |
ETL Certified |
ETL Certified |
|
Shelves |
5 (+5 available with USA-VO-19-WS) |
5 (+5 available with USA-VO-19-TK-WS) |
5 (+5 available with USA-VO-19-ETL-WS) |
5 (+5 available with USA-VO-19-ETL-TK-WS) |
|
KF25 Clamp |
2 |
1 |
1 |
1 |
|
KF25 O-ring |
2 |
1 |
1 |
1 |
|
Manual |
1 |
1 |
1 |
1 |
|
VPD-280 Vacuum Pump w/ Oil |
x |
1 |
x |
x |
|
UVP-5 Vaccum Pump (UL Certified) |
x |
x |
x |
1 |
|
Inalnd 19 Vacuum Pump Oil |
x |
1 |
x |
1 Gallon |
|
KF25 Bellow hose: 48" |
x |
1 |
x |
1 |

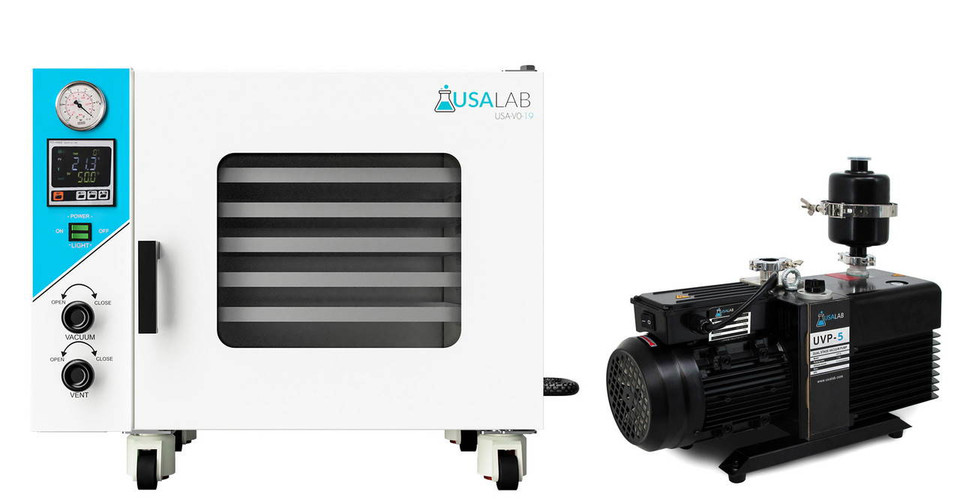

| SPECIFICATIONS | |||
| Model | UVP-5 | UVP-11 | UVP-21 |
| Pumping Speed (60Hz) | 5.5 cfm | 11 cfm | 21 cfm |
| Ultimate Total Pressure Gas Ballast Close | 4x10-2 Pa (3.0x10-4 torr) 0.3 Micron |
||
| Ultimate Total Pressure Gas Ballast Open | 8x10-1 Pa (6x10-3 torr) 6 Micron |
||
| Power Supply | 1 Phase (110V, 60Hz) | ||
| Power Rating(kW) | 0.4 | 0.75 | 1.1 |
| Inlet/Exhaust Flange | KF 25 | ||
| Oil Capacity (L) | 0.6~1.0 | 0.9~1.5 | 1.3~2.0 |
| Ambient Temperature (℃) | 10~40℃ | ||
| Noise Level (dB) | ≤56 | ≤60 | ≤60 |
| Weight (kg) | 21 | 30 | 43 |
| External Dimensions | 440x144x217MM 17.3x5.6x8.5" |
530x188x272MM 20.8x7.4x10.7" |
567x188x272MM 22.3x7.4x10.7" |
| Certification | UL | ||
| Warranty | 2 Year | ||
| PACKING LIST | |||
| Model | UVP-5 | UVP-11 | UVP-21 |
| Main Vacuum Pump | 1 | 1 | 1 |
| KF25 x 3/8" Barb | 1 | 1 | 1 |
| KF25 Clamp | 2 | 2 | 2 |
| KF25 O-Ring | 2 | 2 | 2 |
| Oil Mist Trap | 1 | 1 | 1 |
| Quart of Oil | 1 | 1 | 1 |
| Manual | 1 | 1 | 1 |

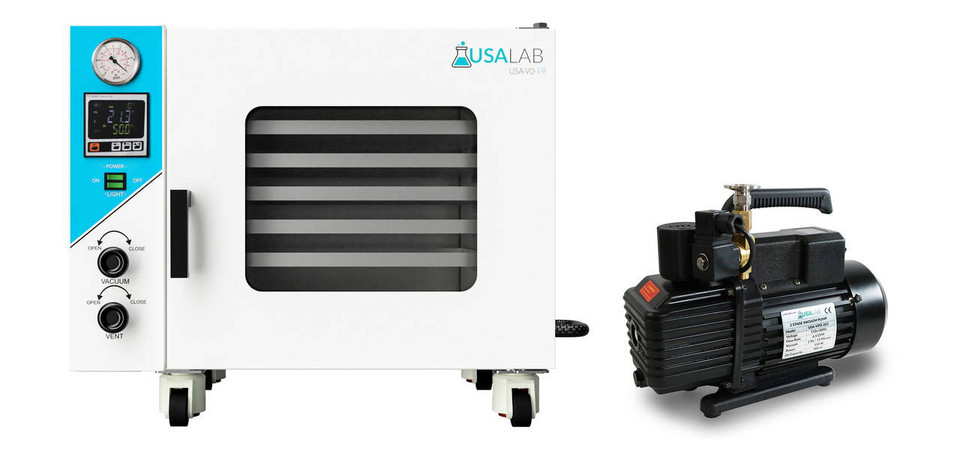

Our VPD Vacuum Pumps provide superior quality that can complement multiple applications. These pumps are designed for reliable, long-term use. Each 2-stage lab vacuum pump comes standard with an exhaust oil mist filter and all parts needed to connect to any system for immediate use. Our 8 CFM vacuum pump is great for any laboratory application, including vacuum ovens, closed loop systems, filtration, and much more. Upgrade today for superior vacuum at an affordable price.
Additionally, our updated design features a KF25 port for better compatibility and a solenoid check valve to prevent leaks. We've also incorporated a built-in oil mist filter with a longer life capacity, ensuring extended use and reduced maintenance.
|
Specification |
Details |
|
Model |
USA-VPD-280 |
|
Power |
110-120V - 60Hz - 5.4A - 5-15 Plug |
|
Motor Wattage |
650W |
|
Flow Rate |
8.0 CFM |
|
Ultimate Vacuum |
2 Pa - 15 Micron |
|
Oil Capacity |
400 mL |
|
Exterior Dimensions |
14" L x 6" W x 13" H |
|
Weight |
30 lbs |
|
Oil Included |
2x 16oz Bottles |
For Technical Support, Questions, or Other Issues Please Email or Call Us!
