Compact Recirculating Stainless Steel Heater

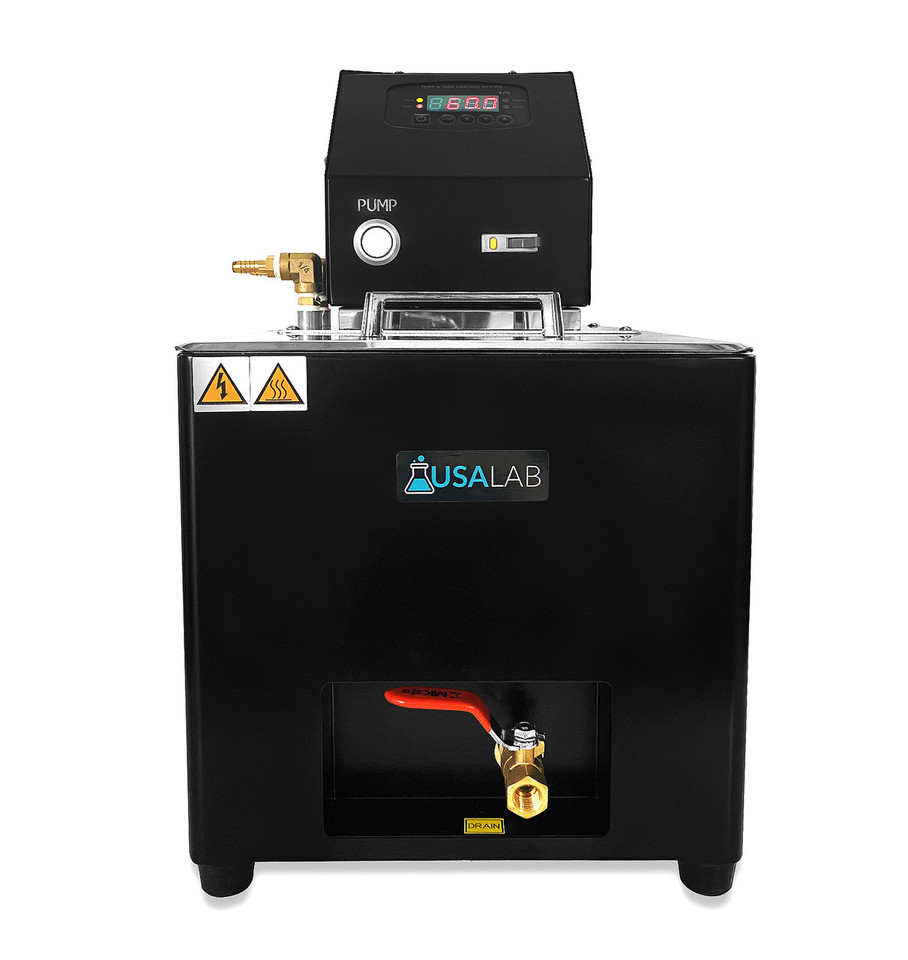

USA Lab 99°C 11L Compact Recirculating Heater 220-240V USA-RH-11L

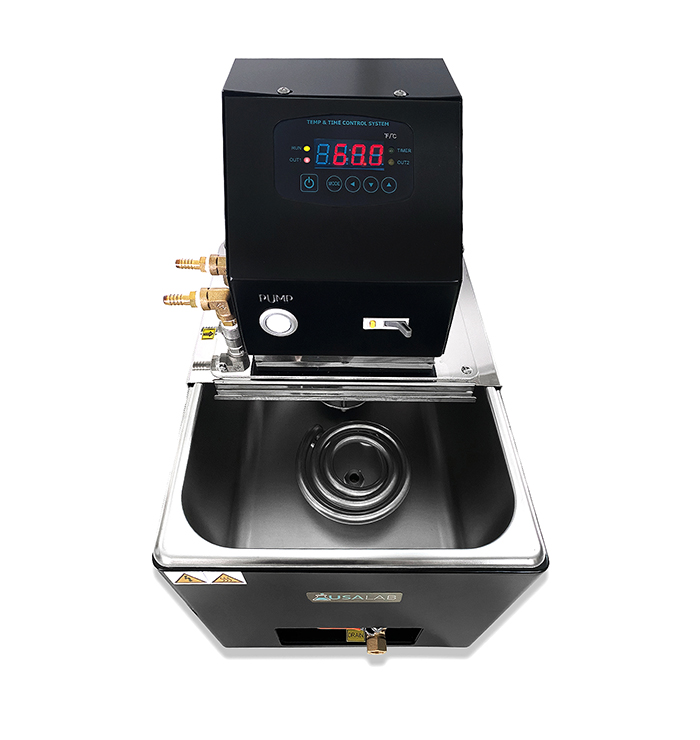

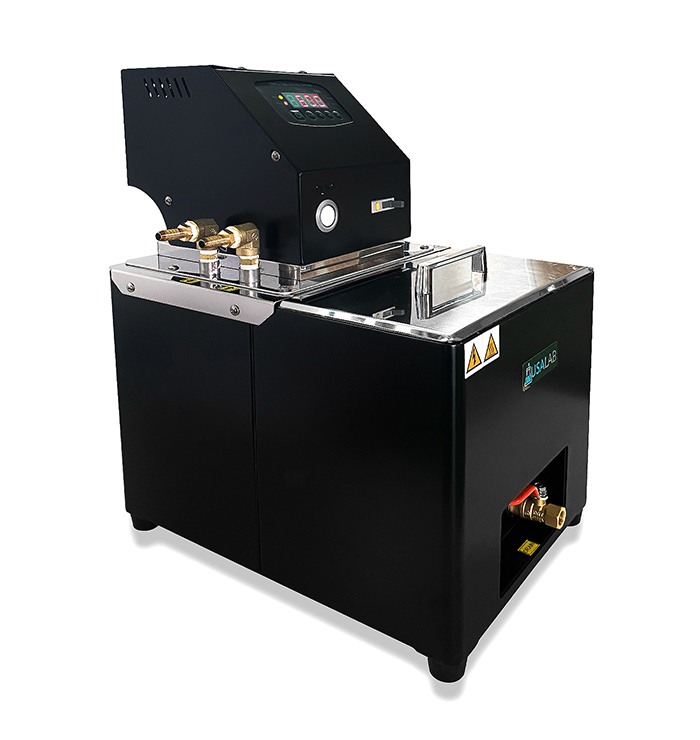

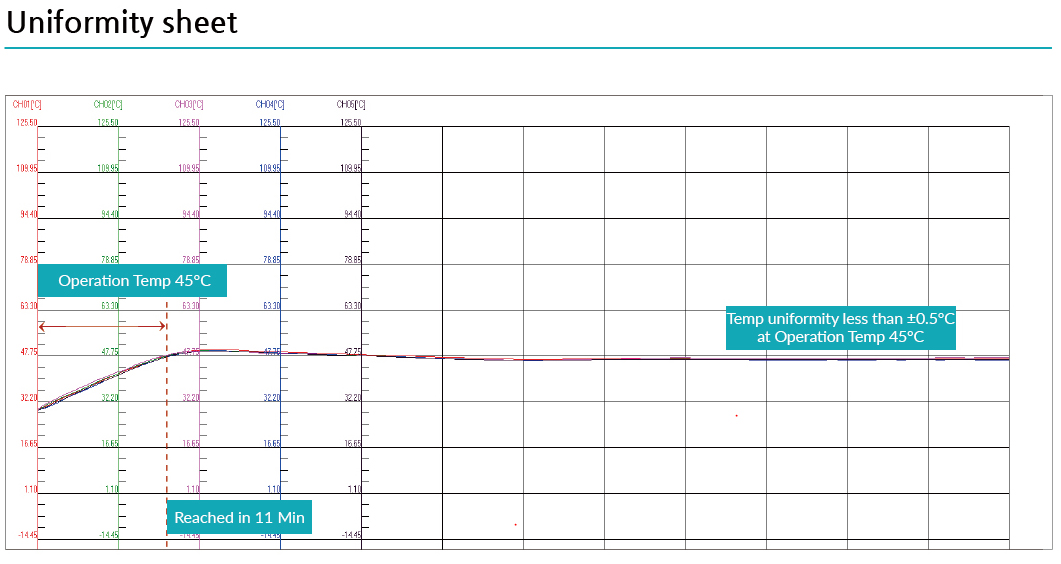

The USA Lab compact heater is a top of the line product compared to others that are currently on the market while maintaining an affordable price. Each stainless steel recirculating heater comes standard with a digital display for ease of use and accurate control. Our heaters contain a powerful circulation motor allowing for excellent temperature distribution as well as extremely accurate temperature uniformity. We also make sure to include top tier safety features including, automatic reset function when the incoming power is cut, an electrical leakage circuit breaker, over temperature protection and a buzzer when the set time has been arrived.

*DISTILLED WATER ONLY, no tap water. Using anything other than distilled water will void the warranty.*

Our heaters come equipped with high quality parts to serve you better and to make your investment last longer.

Upgrade today and see the USA Lab quality difference!

Manual

USA-RH-11L Specifications
Model	USA-RH-11L
Temp Range	Ambient +5°C to 99°C (Ambient + 9°F to 210°F)
Temp Controller	Digital PID Controller
Time Range	00.00 to 99HR 59MIN (MIN SEC) Selectable Digital Display
Capacity	10.8 L
Heater Capacity	4 Kw
Motor Wattage	15W
Flow Rate	3.5L/Min
Pump Pressure	3psi
Dimension Internal (W×D×H)	240x300x150(mm) \| 9.45x11.81x5.91(inch)
Dimension External (W×D×H)	290x390x470(mm) \| 11.41x15.35x18.50(inch)
Top Open (W×D)	240x124(mm) \| 9.45x4.88(inch)
Net weight	15.43lbs
Material Internal	Stainless Steel
Material External	Steel Plate with Powder Heating Coated
Electrical Requirements	220-240V, 50/60Hz, 1Φ 17.4 A \| 6-20P Plug Installed

USA-RH-11L Packing List
Model	USA-RH-11L
USA-RH-11L Heater	1
Heater Lid	1
6ft Silicone Hose	1
Manual	1

For Technical Support, Questions, or Other Issues Please Email or Call Us!

Other Details

Temp Range:

Ambient +5℃ to 99℃

Temp Controller:

Digital PID Controller

Time Range:

00:00 to 99HR 59MIN

Capacity:

10.8 L

Heater Capacity:

4 Kw

Motor Wattage:

15W

Flow Rate:

3.5L/Min

Pump Pressure:

3psi

Dimension Internal:

240x300x150(mm) | 9.45x11.81x5.91(inch)

Dimension External:

290x390x470(mm) | 11.41x15.35x18.50(inch)

Net weight:

15.43 lbs

Electrical:

220-240V, 50/60Hz, 1Φ 17.4 A | 6-20P Plug installed

Warranty Information

Warranty Policy

Heater: 1 Year

Reviews and Q&A

Categories

Brands

Navigate

USA Lab 99°C 11L Compact Recirculating Heater 220-240V USA-RH-11L

Brand : USA Lab

Questions & Answers

Categories

Brands

Navigate

USA Lab 99°C 11L Compact Recirculating Heater 220-240V USA-RH-11L

Brand : USA Lab

Questions & Answers

Related Products

USA Lab 200°C 30L Recirculating Heater RH-30L 18.3L/Min The USA Lab RH-30L Recirculating Water Heater MSRP: Was: Now: $2,998.80

USA Lab 200°C 50L Recirculating Heater RH-50L 18.3L/Min The USA Lab RH-50L Recirculating 200 Heater MSRP: Was: $2,599.00 Now: $2,000.00

USA Lab 110V 5L -10°C to 99°C Magnetic Recirculating Heater Chiller HC-5/10 [You must have an NEMA L5-30 outlet installed.] MSRP: Was: Now: $1,749.95

USA Lab -20°C to 180°C 7L Compact Recirculating Heater Chiller 220V UHC-720 Our USA Lab 7L -20°C to 180°C Desktop Recirculating Heater Chiller is a top of the line product comp MSRP: Was: Now: $2,600.00

USA Lab Recirculating Heater 200°C - 5L, 20L, 30L, & 50L - ETL Certified Introducing our exceptional ETL certified RH Series Heaters, a versatile and reliable solution for a MSRP: Was: Now: $1,800.00 - $4,200.00

USA Lab 50L Dual Set-up Explosion Proof Rotary Evaporator -180°C - 220-240V The USA Lab 50L rotovap EXRDS Series recovers solvents efficiently and fast with two times the surfa MSRP: Was: Now: $8,899.00

USA Lab 50L Explosion Proof Rotary Evaporator RotoVap EXR-1050 - 180°C - 220-240V The USA Lab 50L EXR Series Rotary Evaporator recovers solvents efficiently and fast. Our EXR Se MSRP: Was: Now: $9,599.00

USA Lab -30°C 30L Recirculating Chiller UC-30/30 42L/Min The USA Lab UC-30/30 is a powerful -30°C Chiller with a 30L Reservoir. This chiller is a MSRP: Was: Now: $4,999.00

USA Lab -40°C 30L Recirculating Chiller UC-30/40 42L/Min The USA Lab UC-30/40 is a powerful -40°C Chiller with a 30L Reservoir. This chiller is a true l MSRP: $8,637.60 Was: $8,637.60 Now: $6,479.99

USA Lab 200°C 30L Recirculating Heater RH-30L 18.3L/Min

The USA Lab RH-30L Recirculating Water Heater

MSRP:

Was:

Now: $2,998.80

USA Lab 200°C 50L Recirculating Heater RH-50L 18.3L/Min

The USA Lab RH-50L Recirculating 200 Heater

MSRP:

Was: $2,599.00

Now: $2,000.00

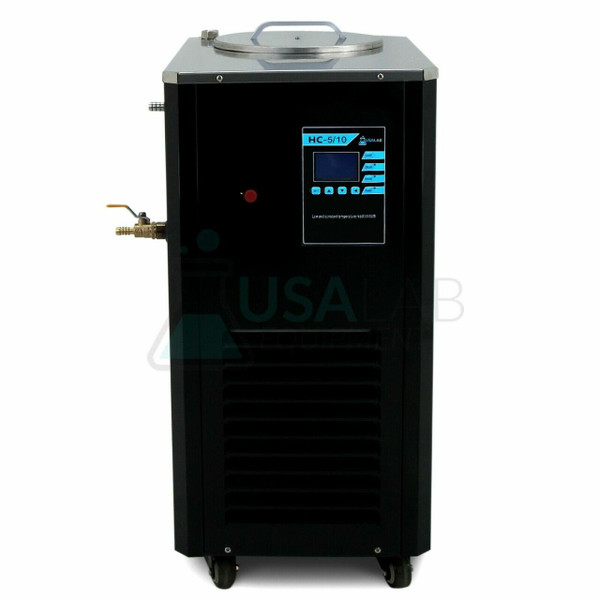

USA Lab 110V 5L -10°C to 99°C Magnetic Recirculating Heater Chiller HC-5/10
