Description

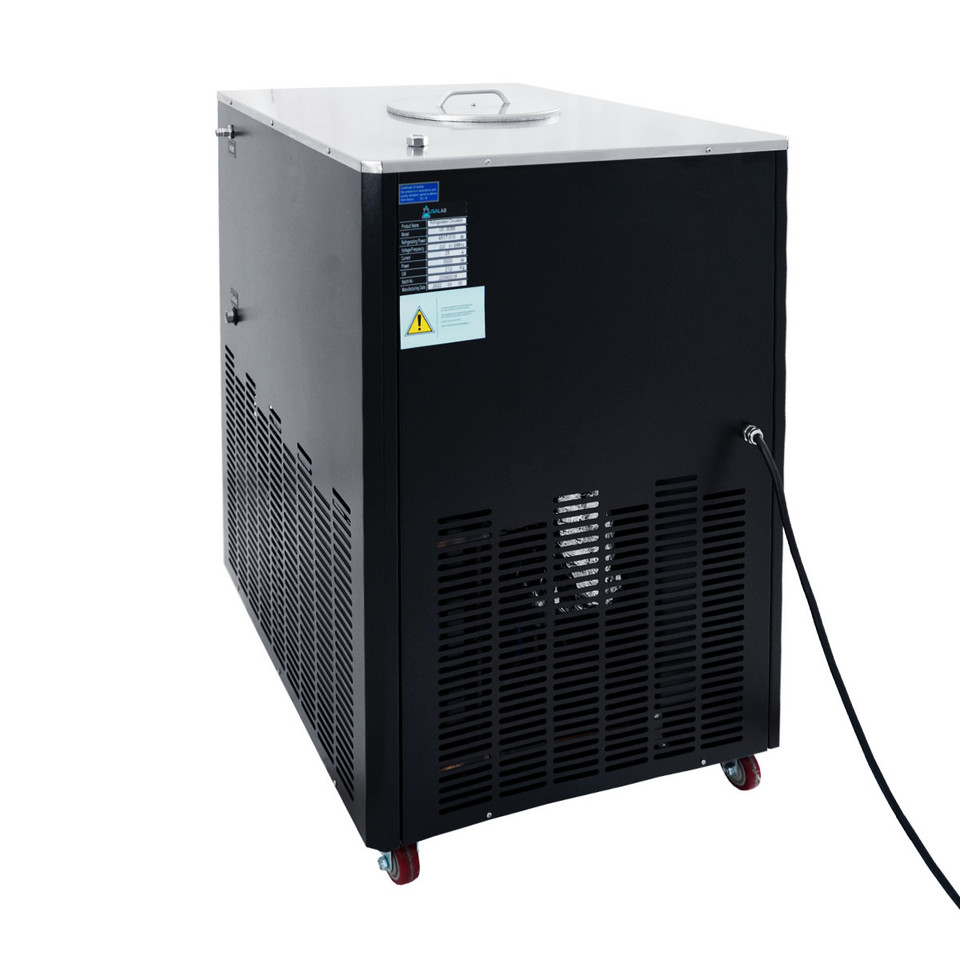

The USA Lab UC-30/80 is a powerful -80°C Chiller with a 30L Reservoir. This UC recirculating chiller is a true lab chiller ideal for applications involving vacuum systems, jacketed reactors, rotary evaporators, columns, solvent tanks, and even analytical instruments.
The USA Lab UC-30/80 chillers offer unbeatable performance, ease of use and high reliability. These units keep quiet despite having a powerful pump allowing for constant flow rates to match the needs of demanding applications.
** Notice **
NOT Compatible With 208V Power Input
(Acceptable range: 219V - 253V)
NOT Compatible With 208V Power Input
(Acceptable range: 219V - 253V)
NOT intended for 24-hour operation, maximum operation time is 16 hours.
|
SPECIFICATIONS |
||
|
Model |
UC-30/80 |
|
|
Reservoir Capacity |
30L |
|
|
Reservoir Dimensions |
13.7" x 13.7" |
|
|
Temperature Range |
Room Temp to -80°C / -112°F |
|
|
Power Requirements |
220-240V 60Hz 30A 5250W Single Phase |
|
|
Control Type |
PLC Touchscreen |
|
|
Refrigeration BTUs |
16,000BTU - 1,450BTU |
|
|
Circulating Pump Wattage |
100W |
|
|
Temperature Accuracy |
+/- 0.5°C |
|
|
Pump Flow |
42L/Min |
|
|
Lift (Max Pumping Height) |
18.7ft |
|
|
Pump Pressure |
2.5psi @ 3.9ft - 8.8psi @ 18.7ft |
|
|
Barb Size |
5/8" |
|
|
Refrigerant |
R404 |
|
|
External Dimensions |
39" x 31.9" x 48.4" |
|
|
Weight |
473lbs |
|
|
Warranty |
1 Year |
|
|
PACKING LIST |
||
|
Model |
Quantity |
|
|
USA Lab UC-30/80 -80°C Chiller |
1 |
|
|
5/8" Insulated Tubing |
11Ft |
|
|
5/8" Barbed Valve |
1 |
|
|
PTFE Sealing Tape |
1 |
|
|
Manual |
1 |
|
For Technical Support, Questions, or Other Issues Please Email or Call Us!
