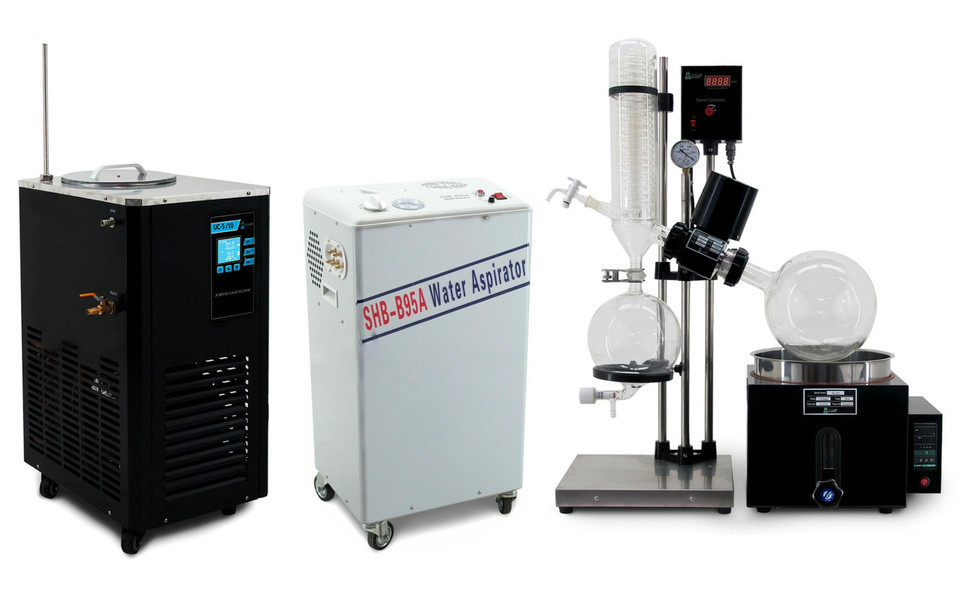

USA Lab 5L Rotary Evaporator Turnkey Setup Rotovap RE-501

Description

Specifications

Warranty

Shipping & Returns

Description

* This listing has been updated with a large water aspirator to repalce the older model

(blue aspirator) *

The USA Lab 5L RE-501 Series Rotovap Setup Turn-Key kit recovers solvents efficiently and fast. This unit provides consistent and repeatable results at an affordable price. With 3.3 High Borosilicate Glass, all pieces have been designed for efficient use of surface area. This means faster recovery without compromising quality. All valves and ports are high efficiency allowing a continuous feed of material as well as draining the receiving flask without breaking the water aspirator vacuum.

No expense has been spared with these evaporators, yet we crush the market on pricing to provide great value at a low cost. Our evaporators are the best value on the market and each one comes with fantastic customer service, local product support, and a 1 year warranty.

*Water Asdpirator / Vacuum pump is 220V*

*RE501 Specifications*
Glass Material	3.3 Borosilicate Glass
Evaporation Flask Capacity	5L
Collection Flask Capacity	3L
Rotary Speed	0-120RPM
Bath Temperature Range	Room Temp to 198°C (388°F)
Lifting Mechanism	Manual
Power Requirements	110V 60Hz 20A Single Phase
Temperature Control Accuracy	+/ 1°C
Motor Wattage	40W
Heater BTUs	6,800BTU
Maximum Vacuum	0.0033 Mpa \| 25 Torr \| 25,000 Micron
Evaporating Capability	Water≥1.5L/H; Alcohol≥4L/H
Dimensions	18"L x 30"W x 44"H
Speed Regulation	Digital Stepless
Vacuum Barb	1/2"
Condenser Barb	1/2"

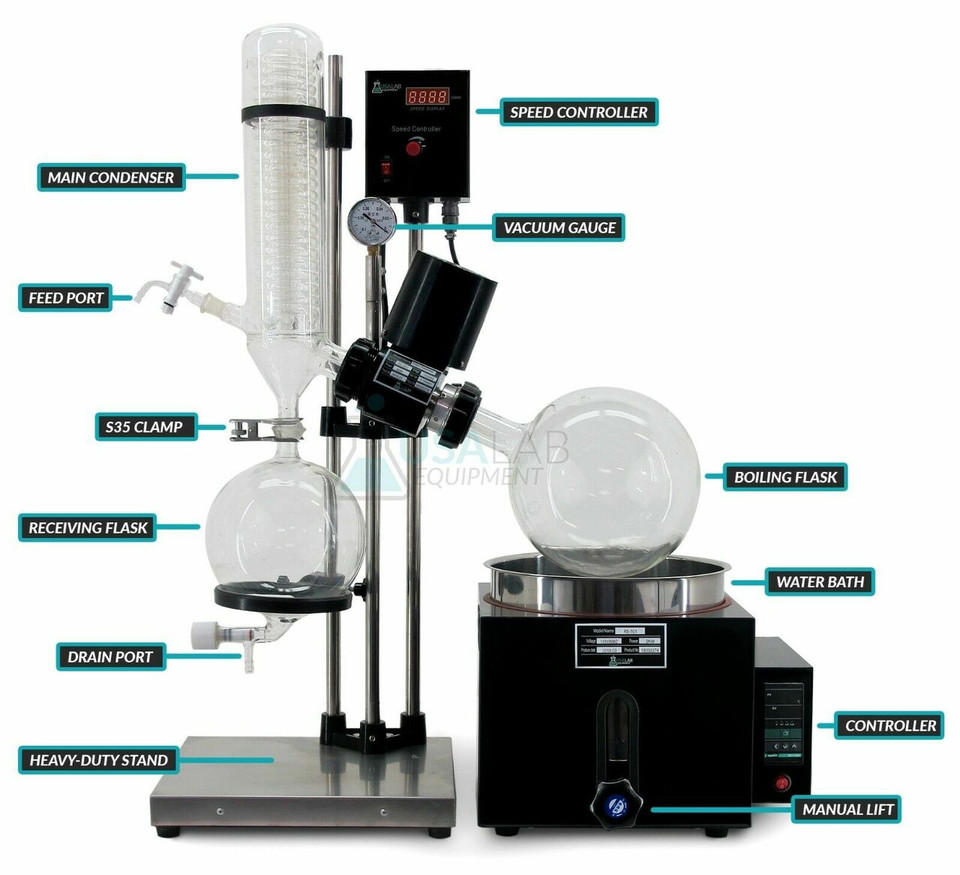

*RE-501 PACKING LIST*
Stainless Steel, 3 Bar Stand	1 set
USA Lab Water Bath	1 set
USA Lab RE-501 Motor	1 set
USA Lab Speed Controller	1 set
Main Condenser	1 pc
5L Boiling Flask	1 pc
3L Receiving Flask	1 pc
Vapor Duct with Seal (Pre-Installed)	1 set
PTFE Vacuum Sealing Kit (Pre-Installed)	1 set
Glass Feed Port with PTFE Valve	1 set
PTFE Feeding Tube Extension Hose	1 pc
Vacuum Gauge	1 pc
Support Ring	1 pc
Rubber Strap for Condenser	1 pc
32A Fuse	1 pc
15A Fuse	1 pc
Set Screw	3 pcs
Allen Key	1 pc
S35 Clamp	1 pc
Vacuum Hose	3ft

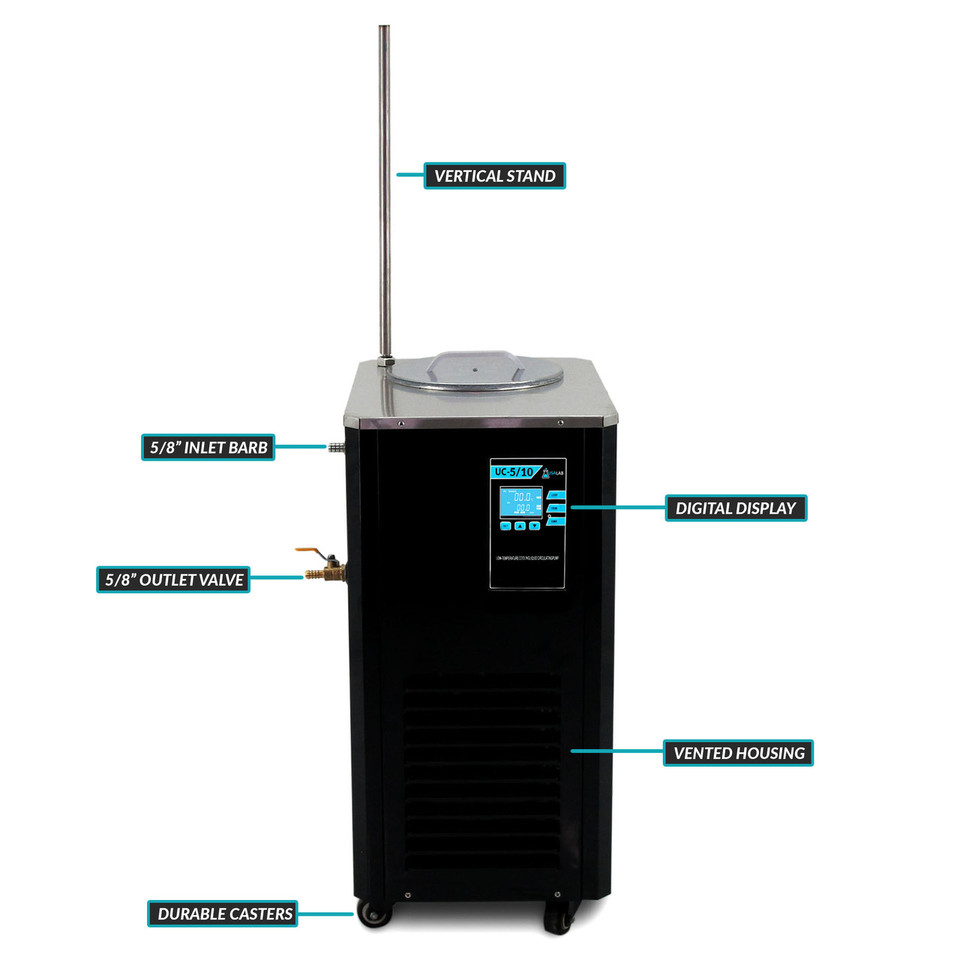

*UC-5/10 SPECIFICATIONS*
Model	UC-510
Reservoir Capacity	5L
Reservoir Dimensions	8" x 8"
Temperature Range	Room Temperature to -10°C / 14°F
Power Requirements	110-120V 60Hz 20A 1800W Single Phase
Refrigerating BTUs	4,500BTU - 1,000BTU
Circulating Pump Wattage	100W
Temperature Accuracy	+/- 0.5°C
Pump Flow	30L/Min
Pump Pressure (lift/height)	2.2bar (4M/12ft)
Barb Size	5/8"
Refrigerant	R-404A
Dimensions	19" x 14" x 29"
Weight	100lbs

*UC-5/10 Packing List*
USA Lab UC-5/10 Chiller	1 unit
1/2" Insulated Tubing	11ft
1/2" Barbed Valve	1 pc
PTFE Sealing Tape	1 pc

*Extra Packing List*
USA Lab Propylene Glycol	1 Gallon
3/8" Vacuum Hose	10ft

We ship all glassware products with additional care, but sometimes they arrive broken. If glassware arrives broken, please contact us within 3 days of receiving your product and we will either send you a brand new piece or send you a refund! Any glassware broken after delivery voids all warranties. Thank you for understanding!

For Technical Support, Questions, or Other Issues Please Email or Call Us!
