USA Lab 5L Rotary Evaporator RotoVap RE-1005 w/ ETL Certification to UL and CSA Standards)




Brand :

$4,199.00
View Details
SKU:
RE1005-ETL
Brand:
USA Lab

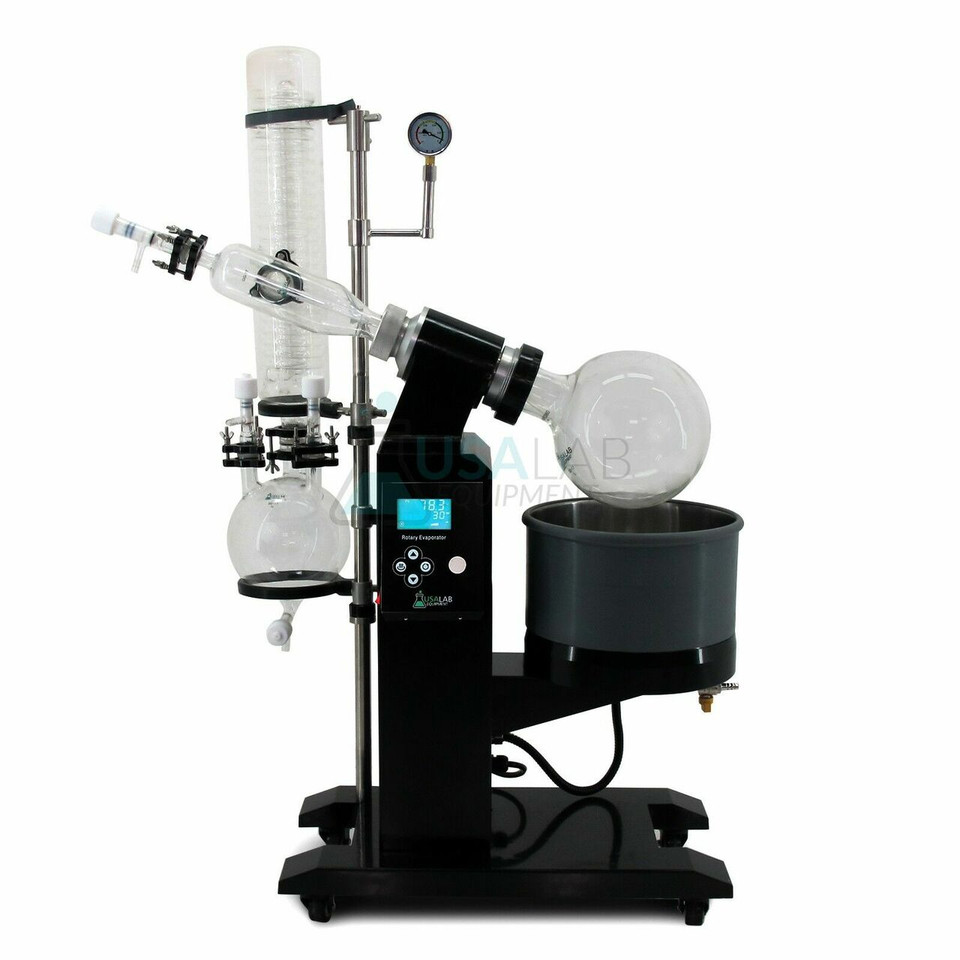

USA Lab 5L Rotary Evaporator RotoVap RE-1005 w/ ETL Certification to UL and CSA Standards)
The USA Lab 5L RE Series rotary evaporator recovers solvents efficiently and fast. This unit provides consistent and repeatable results at an affordable price. With GG-17 High Borosilicate Glass, all pieces have been designed for efficient use of surface area. This means faster recovery without compromising quality. Our evaporators come standard with safety features such as over-temperature shut off and dry-run protection. All valves and ports are high efficiency allowing a continuous feed of material as well as draining the receiving flask without breaking vacuum.

No expense has been spared with these evaporators, yet we crush the market on pricing to provide great value at a low cost. Our evaporators are the best value on the market and each one comes with fantastic customer service, local product support and a 1 year warranty.


RE-1005 SPECIFICATIONS

•Glass Material: GG-17 Borosilicate Glass

•Evaporation Flask Capacity: 5L

•Collection Flask Capacity: 3L

•Rotary Speed: 10-120RPM

•Bath Temperature Range: Room Temp to 180°C /356°F

•Lifting Mechanism: Electric

•Power Requirements: 110-120V 50-60Hz 20A Single Phase

•Temperature Control Accuracy: +/-1°C

•Motor Wattage: 40W

•Heater BTUs: 6,800BTU

•Achievable Vacuum: 399.9Pa

•Evaporating Capability: Water≥2L/H; Alcohol≥4L/H

•Water Bath Volume: 12L

•Dimensions: 35"L x 19"W x 53"H

•Condensing Glass Surface Area: Main: 0.27㎡

•Speed Regulation: Digital Step-Less

•Vacuum Barb: 13.3MM

•Condenser Barb: 15.5MM



We ship all glassware products with additional care, but sometimes they arrive broken. If glassware arrives broken, please contact us within 3 days of receiving your product and we will either send you a brand new piece or send you a refund! Any glassware broken after delivery voids all warranties. Thank you for understanding!

1 Year parts and labor warranty included. Does not include glassware.



For Technical Support, Questions, or Other Issues Please Email or Call Us!


Brand:
USA Lab
Warranty Policy

Rotary Evaporator: 1 Year
