NOT Compaible With 208V Power Input
(Acceptable range: 230V - 253V)
|
FEATURES |
|||||
|
• ETL to UL and CSA Standards (Optional) |
|||||
|
• All glassware is made from high grade borosilicate glass that is durable and resistant. |
|||||
|
• Wide range of temperature operations -80°C to 210°C |
|||||
|
• All seals are PTFE to increase durability and longevity. PTFE is resistant to a large portion of solvents and chemicals. |
|||||
|
• Rugged, High RPM stirring motor for superior stirring power. |
|||||
|
• Large condensing area for faster condensing. |
|||||
|
• Durable stainless steel support frame with casters. |
|||||
|
• 1 Year warranty with US base parts and support. |
|||||
|
SPECIFICATIONS |
|||||
|
Model |
JR5 |
JR10 |
JR20 |
JR50 |
JR100 |
|
Vessel Capacity |
5L / 1.32Gal |
10L / 2.6Gal |
20L / 5.28Gal |
50L / 13.20Gal |
100L / 26.41Gal |
|
Material Flask Capacity |
1L / 0.26Gal |
1L / 0.26Gal |
5L / 1.32Gal |
5L / 1.32Gal |
5L / 1.32Gal |
|
Receiving Flask Capacity |
Not included |
5L / 1.32Gal |
5L / 1.32Gal |
10L / 2.6Gal |
10L / 2.6Gal |
|
Fluid Jacket Capacity |
0.8L / 0.21Gal |
8L / 2.11Gal |
9L / 2.37Gal |
16L / 4.22Gal |
25L / 6.60Gal |
|
Glass Material |
GG-17 Borosilicate Glass | Thickness: 6.5mm ±0.5mm |
||||
|
Rotary Speed |
0-450RPM |
||||
|
Glass Temperature Range |
-80°C to 210°C / -112°F to 410°F |
||||
|

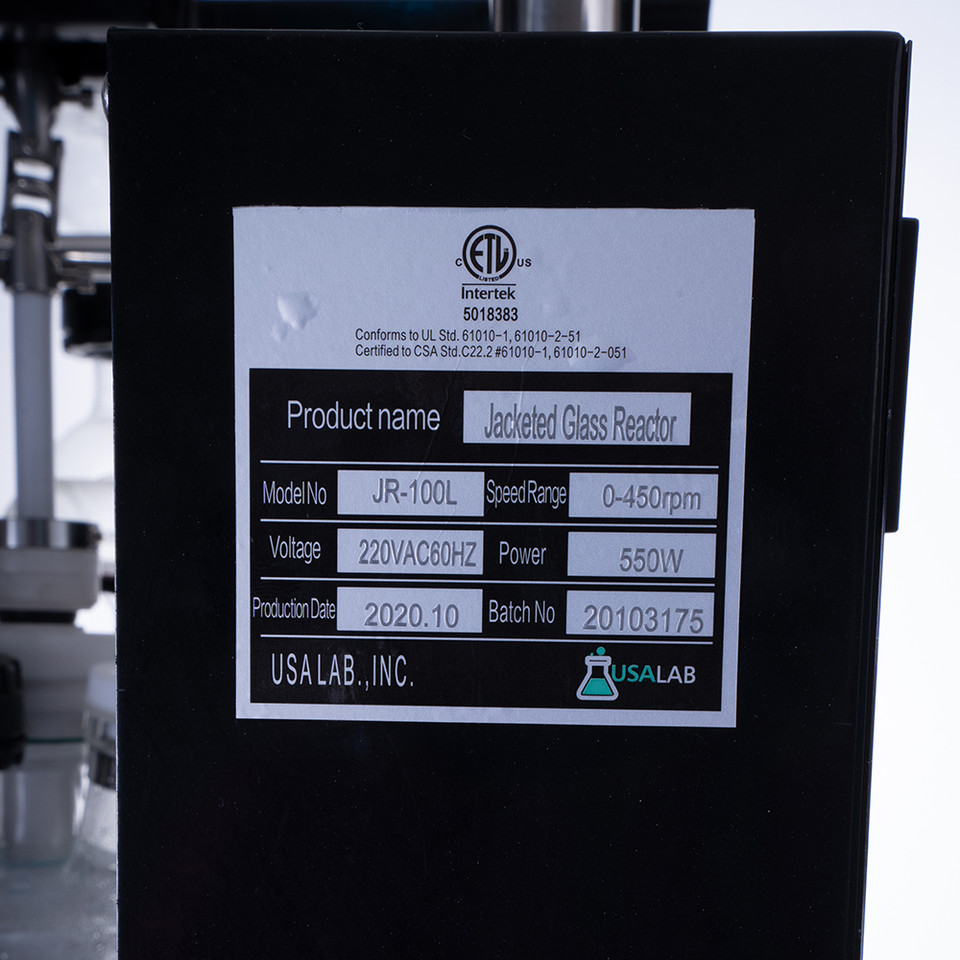

Power Requirements |
Non-ETL: 110-120V 60Hz 15A 1p | ETL: 230V 60Hz 15A 1p |
||||
|
Stirrer Wattage |
90W |
90W |
90W |
90W |
200W |
|
ETL Stirrer Wattage |
120W |
120W |
120W |
120W |
200W |
|
Lowest Vacuum Level |
0.0033 Mpa | 25 Torr | 25,000 Micron |
||||
|
Speed Regulation |
Digital Step-Less |
||||
|
Condenser and Feed Valve Barbs |
10MM - 3/8" |
||||
|
Bottom Drain Port |
35MM - 1 3/8" |
||||
|
Receiving Flask Barb |
16MM - 5/8" |
||||
|
Jacket Pressure |
Maximum 29 psi - Nominal 25 psi |
||||
|
Fluid Connection |
16MM - 5/8" barb or 1/2" NPT (JR-100: 5/8 Barb or 3/4" MNPT) |
||||
|

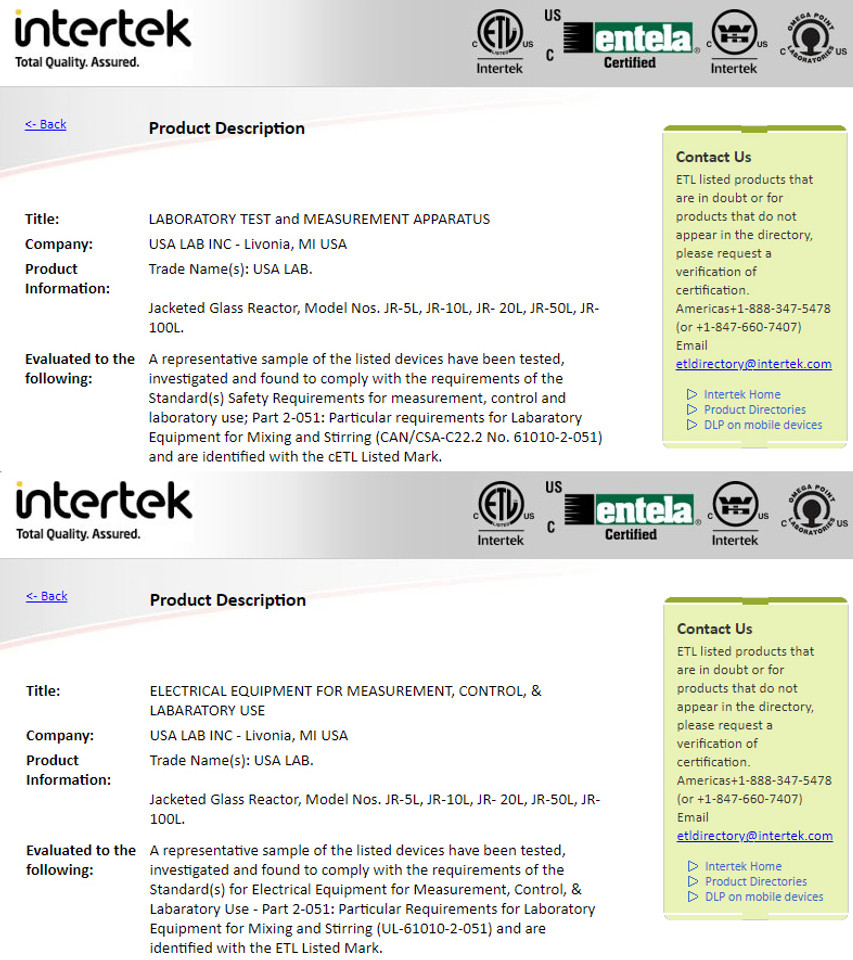

Certification |
ETL to UL and CSA Standards (Optional) |
||||
|
External Dimensions LxWxH |
16 x 18 x 68" |
20.4 x 20.4 x 70" |
39 x 20.4 x 79" |
41 x 23 x 90" |
48 x 34 x 102" |
|
Weight |
75 lbs |
149 lbs. |
176 lbs |
205lbs |
275 lbs |
|
PACKING LIST |
|||||
|
Model |
Quantity |
||||
|
Vessel with Rack (Pre-assembled) |
1 |
||||
|
Main Condenser |
1 |
||||
|
Material Flask |
1 |
||||
|
Receiving Flask |
1 |
||||
|
Reflux Flask |
1 |
||||
|
C Clamp Valve |
1 |
||||
|
Feed Ports |
6 Sets |
||||
|
Stopper |
1 |
||||
|
Clamp for Material Flask |
1 |
||||
|
Strap for Condenser |
1 Set |
||||
|
Sealing Screw / Flange |
3 Sets |
||||
|
Fluid Line Sealing Clamp / Flange |
2 sets |
||||
|
Control Box |
1 |
||||
|
Vacuum Gauge |
1 |
||||
|
Support Rings |
2 |
||||
|
Stirring Motor w/ Paddle |
1 |
||||
|
Temperature Probe |
1 |
||||
|
Liquid 5/8" Connections |
2 |
||||
|
Metal Clamp |
2 |
||||
|
Insulation Wrap |
1 |
||||
|
Dow Corning Vacuum Grease |
1 |
||||
|
Vacuum Hose |
10 ft. |
||||
|
JR REACTOR LID SPECIFICATIONS |
|||||
|
Model |
JR-5L |
JR-10L |
JR-20L |
JR-50L |
JR-100L |
|
Left Port |
29mm Joint |
40mm Joint |
50mm Ball Joint |
50mm Ball Joint |
50mm Ball Joint |
|
Right Port |
35mm Ball Joint |
50mm Ball Joint |
50mm Ball Joint |
50mm Ball Joint |
50mm Ball Joint |
|
Rear Port |
24mm Joint |
34mm Joint |
34mm Joint |
34mm Joint |
34mm Joint |
|
Stirring Port |
50mm Flange Port |
50mm Flange Port |
50mm Flange Port |
50mm Flange Port |
60mm Flange Port |
|
Front Port 1 |
N/A |
80mm with PTFE Lid |
80mm with PTFE Lid |
80mm with PTFE Lid |
80mm with PTFE Lid |
|
Front Port 2 |
24mm Joint |
50mm Flange Port |
50mm Flange Port |
50mm Flange Port |
50mm Flange Port |
|
Explosion Proof Motor Specifications |
||||||
|
Model |
JR-5L |
JR-10L |
JR-20L |
JR-50L |
JR-100L |
JR-150L |
|
Wattage / HP |
90W | 1/8 HP |
180W | 1/4 HP |
370W | 1/2HP |
|||
|
Current(A) |
0.7A |
1.12A |
1.94A |
|||
|
RPM |
0-1400rpm |
|||||
|
Power |
240V 60Hz |
|||||
|
Pneumatic Motor Specifications |
||||||
|
Wattage / HP |
560W | 3/4 HP |
|||||
|
RPM |
0-650rpm |
|||||
|
Air Consumption |
504L/min |
|||||
