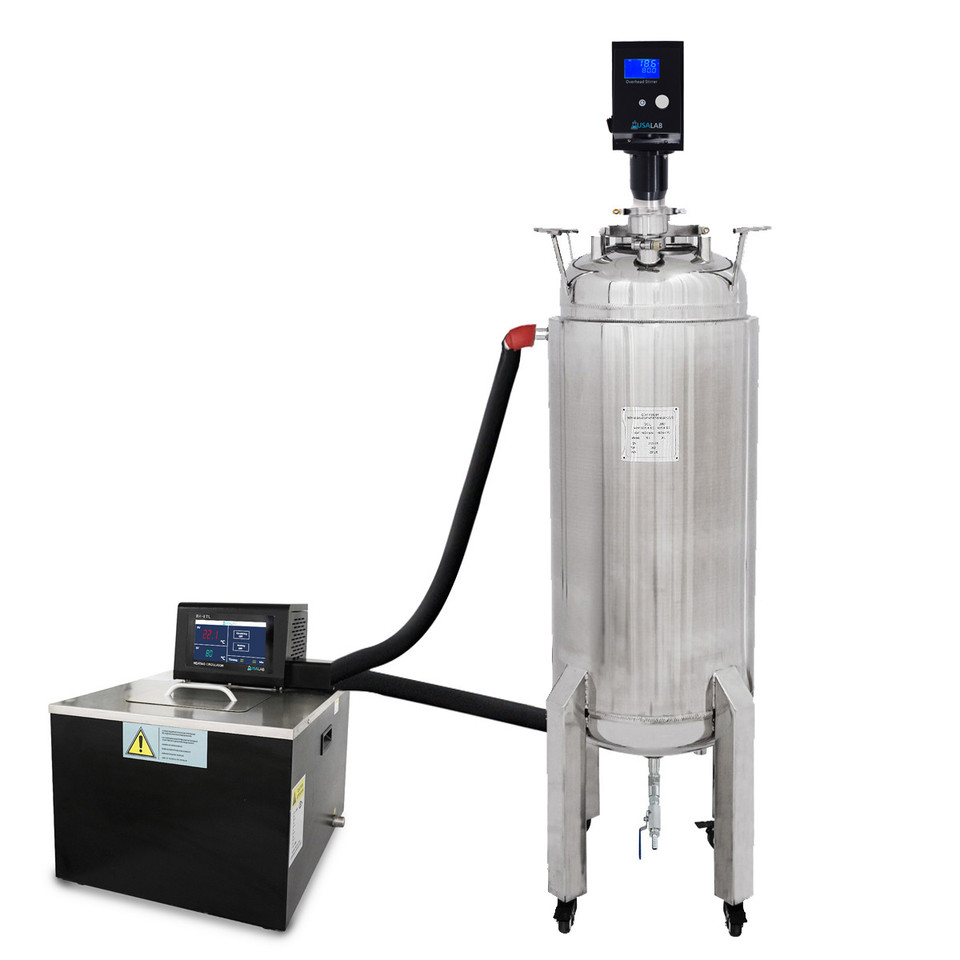

The mixing vessel from USA Lab delivers exceptional quality without compromising affordability. Its variable speed motor ensures effortless and dependable mixing initiation. Every 50L jacketed vessel is equipped with a triclamp mixer, and the choice to include a supplementary 30L 5 kW heater is available for optimal heat transfer. Moreover, the vessel features a convenient drain port to facilitate easy emptying.
|
Tank Build Out |
|
|
Lid Connections |
6" to 3" Tri-Clamp Lid |
|
Tank Connection |
2x 1/2 Valve to 1/2" Barbs | 1/4" valve to 1/4" JIC | 1/4" Pressure Gauge |
|
Bottom Connections |
1.5" TC to 1/2" FNPT | 45degree elbow | 1/2" Ball valve | 1/2" Barb |
|
Optional Heater |
3/4" Connections |
|
SPECIFICATIONS |
|
|
Model |
100LB |
|
Size |
100lbs |
|
Water Capacity |
60L |
|
Butane Capacity |
48.08lbs |
|
Jacket Capacity |
18L |
|
Weight |
148lbs |
|
External Dimensions |
19 x 19 x 49" |
|
Internal Dimensions |
12 x 12 x 31" |
|
Shell PSI Rating |
-80°C at 150PSI | 150°C at 150PSI |
|
Jacket PSI Rating |
100°C at 14.5 PSI |
|
Top Connections |
3x 1/2" FNPT and 1x 1/4" FNPT |
|
Bottom Connection |
1.5" Tri-Clamp |
|
Motor Specifications |
|
|
Model |
MM-3TC |
|
Material |
Painted Steel |
|
Mount |
3" Tri-Clamp |
|
Max PSI |
90 PSI |
|
Max Input/ Output Current |
2A - 10A |
|
RPM |
50-1000 |
|
Voltage |
115V |
|
Shaft Material |
316SS |
|
Impeller Diameter |
4 IN |
|
Shaft Diameter |
.625 IN |
|
Shaft Length |
32 IN |
|
Wattage |
200W |
Introducing our exceptional ETL certified RH Series Heaters, a versatile and reliable solution for a wide range of industries, including pharmaceutical plants, the chemical industry, and the petrochemical industry. This advanced heating circulator is specifically designed to heat bath fluids using electricity and efficiently transfer the heated fluids to reactors via a circulating pump.
With its cutting-edge technology and robust construction, our RH Series Heaters ensure precise and consistent heating performance, meeting the demanding requirements of various applications. Their compact design allows for easy integration into existing setups, making them a seamless addition to your workflow.
Our recirculating lab heater is engineered with efficiency in mind, allowing for rapid and uniform heating of the bath fluid. The air-cooled design eliminates the need for additional water cooling systems, simplifying installation and reducing operating costs. The efficient transfer of heat from the circulator to the reactors ensures optimal temperature control, maximizing productivity and process reliability.
Ease of use and flexibility are key features of our heaters. They are equipped with user-friendly controls and a clear display, allowing for effortless temperature adjustments and monitoring. The circulating pump operates smoothly and quietly, delivering the heated fluid precisely to the desired location within your system.
Whether you operate a pharmaceutical plant, the chemical industry, or the petrochemical industry, our ETL certified RH Series Heaters are the ideal choice. Benefit from their exceptional heating performance, safety features, and versatility to enhance your processes and achieve optimal results. Trust in our reliable solution to meet your heating needs efficiently and effectively.
|
Model |
RH5L-ETL |
RH20L-ETL |
RH30L-ETL |
RH50L-ETL |
|
|
Operating Ambient Temperature |
5~35℃ / 41~95℉ |
||||
|
Inner Tank Material |
304 Stainless Steel |
||||
|
Controller |
Touch Screen |
||||
|
Oil Pump Power |
DC Brushless |
DC Brushless |
DC Brushless |
DC Brushless |
|
|
60W |
100W |
150W |
180W |
||
|
Power (V/Hz) |
220V 60Hz Single Phase |
||||
|
Current |
220V / 10.0A |
220V / 14.2A |
220V / 23.9A |
220V / 34.6A |
|
|
Flow Setting |
Knob setting |
||||
|
Temp Range |
RT-200℃ |
||||
|
Temp Precision |
±1℃ |
||||
|
Temperature Control |
PID Controller |
||||
|
Heating Power |
2KW |
3KW |
5KW |
8KW |
|
|
Flow |
20L/min |
30L/min |
50L/min |
68L/min |
|
|
Lift |
8-12M |
||||
|
Inlet and Outlet |
1/2 Inch NPT |
3/4 Inch NPT |
|||
|
Tank Capacity |
10L/2.64gallon |
20L / 5.28 gallon |
34L / 8.98 gallon |
48L / 12.68 gallon |
|
|
Tank Size |
8.6" x 7.1" x 10.7" |
11" x 10.7" x 10.7" |
15" x 13" x 10.7" |
17" x 13" x 13.5" |
|
|
Exterior size |
15.2" x 12.5" x 19.5" |
17.5" x 15.8" x 20.7" |
21.25" x 18" x 20.5" |
23" x 19" x 23.5" |
|
|
Weight |
18kgs / 40lbs |
25kgs / 55lbs |
29kgs / 64lbs |
36kgs / 80lbs |
|
For Technical Support, Questions, or Other Issues Please Email or Call Us!
1 Year Warranty.
Tank and Fittings:
Fittings and steel do NOT carry any warranty. Fittings and steel items with a defect or other issue must be identified within 30 days of arrival and USA Lab MUST be contacted. After 30 days, there will be no replacements sent for fittings or steel items with a defect or issue. Cross threading, misuse, improper storage, or improper care of fittings/steel are considered user error and are not covered under warranty.
