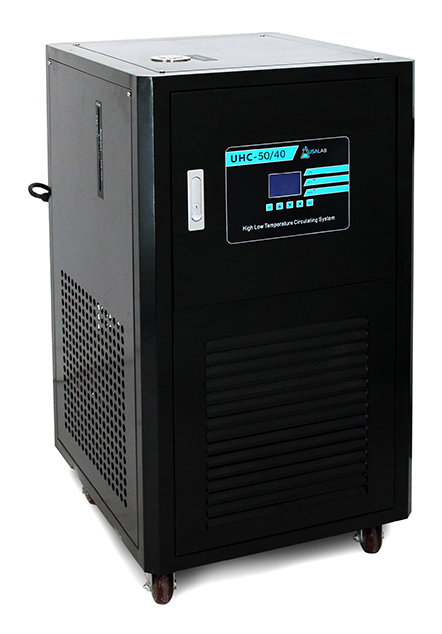

The USA Lab UHC-50/40 is a powerful -40°C to 200°C Heater Chiller with a 12L Reservoir. This heater chiller is ideal for applications involving vacuum systems, jacketed reactors, rotary evaporators, columns, solvent tanks, and even analytical instruments. These units are "Closed loop" and have a small in-feed hole allowing for the entire fluid reservoir to be closed off from the outside environment. The UHC heater chillers have easily accessible control panels for easy adjustments and repair.
The USA Lab UHC-50/40 heater chiller offer unbeatable performance, ease of use and high reliability. These units keep quiet despite having a powerful pump allowing for constant flow rates to match the needs of demanding applications.
** Notice **
NOT Compaible With 208V Power Input
(Acceptable range: 219V - 253V)
NOT Compaible With 208V Power Input
(Acceptable range: 219V - 253V)
NOT intended for 24-hour operation, maximum operation time is 16 hours.
*It may be necessary to add an external bypass*
*NOTE: When paired with a reactor, fluid requirement is nearly 9 gallons*
|
UHC-50/40 SPECIFICATIONS |
|
|
Reservoir Capacity |
12L |
|
Temperature Range |
Room Temperature to -40°C to 200°C |
|
Power Requirements |
220-240V 60Hz 45A 9950W Single Phase (must be hard wired) |
|
Heating Wattage |
6kW |
|
Refrigerating Wattage |
10.2kW |
|
Circulating Pump Wattage |
250W |
|
Temperature Accuracy |
+/- 2°C |
|
Pump Flow |
35L/Min |
|
Pump Pressure (Lift/Height) |
28.48 PSI (20m/65.62ft) |
|
Connection Size |
3/4" |
|
Dimensions |
28" x 26" x 44" |
|
Weight |
430lbs |
Pump Curve:
*** UNIT MUST BE HARDWIRED INTO GENERAL USAGE PANEL BOX & INSTALLED BY LICENSED PROFESSIONAL ***
|
UHC-50/40 PACKING LIST |
|
|
USA Lab UHC-50/40 Heater Chiller |
1 pc |
|
3/4" Insulated Tubing - 6ft |
2 pcs |
|
3/4" Valve |
1 pc |
|
3/4" NPT Hex |
1 pc |
|
PTFE Sealing Tape |
1 pc |
For Technical Support, Questions, or Other Issues Please Email or Call Us!
