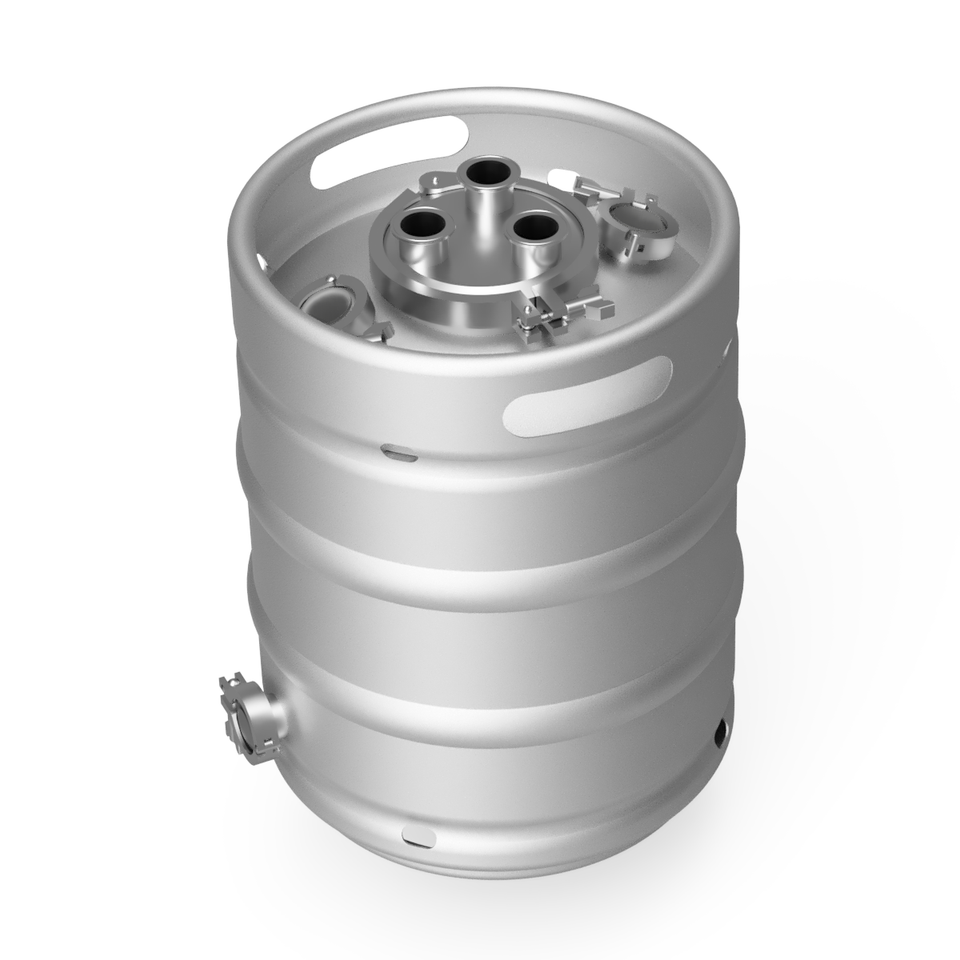

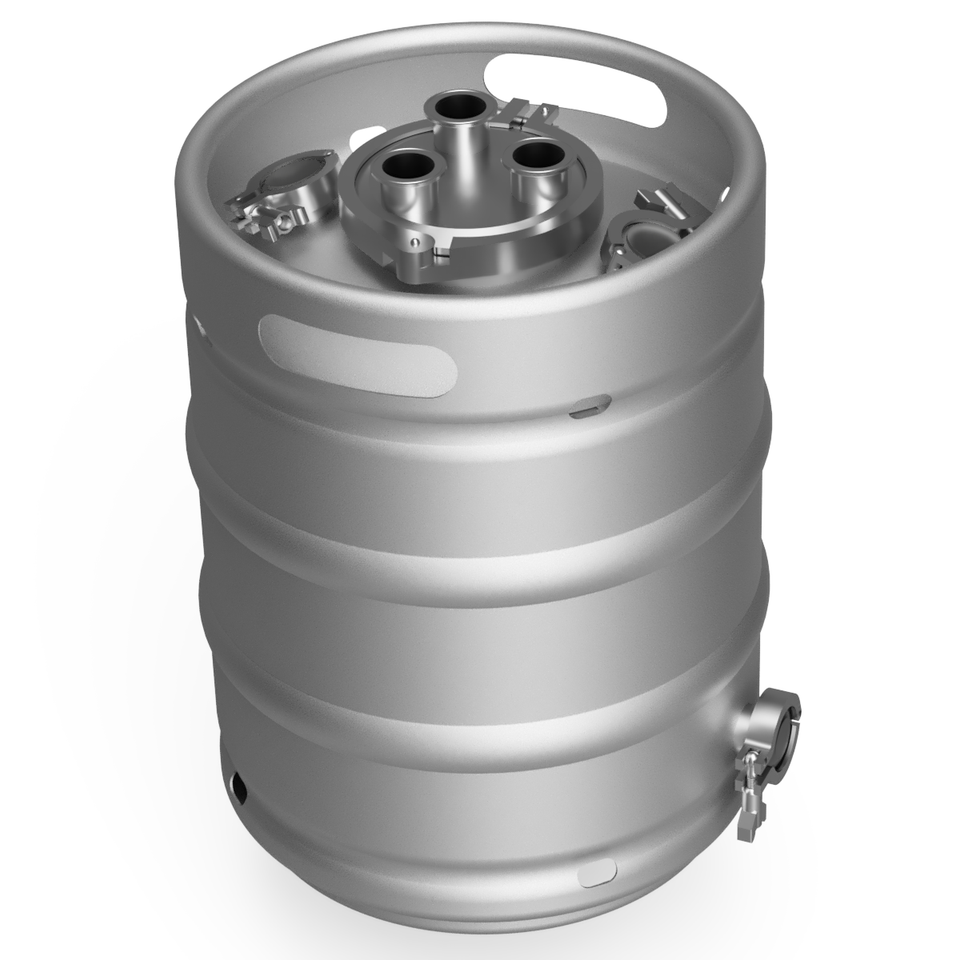

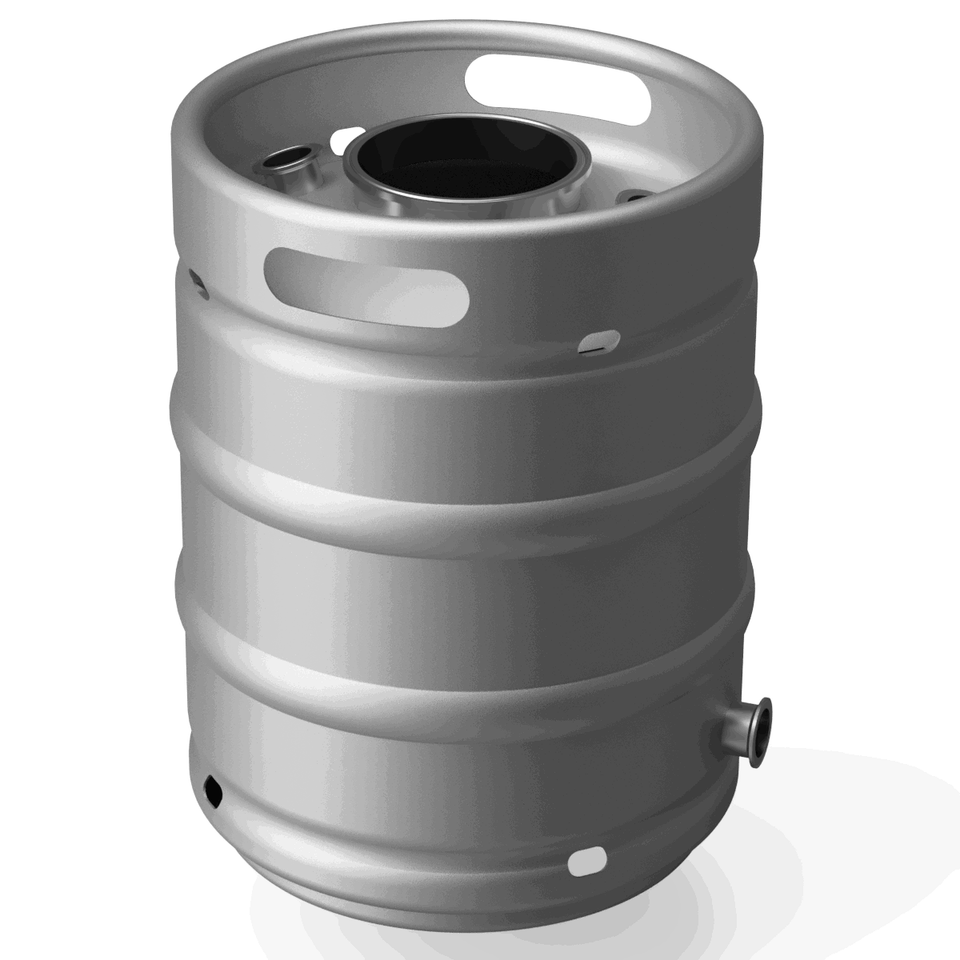

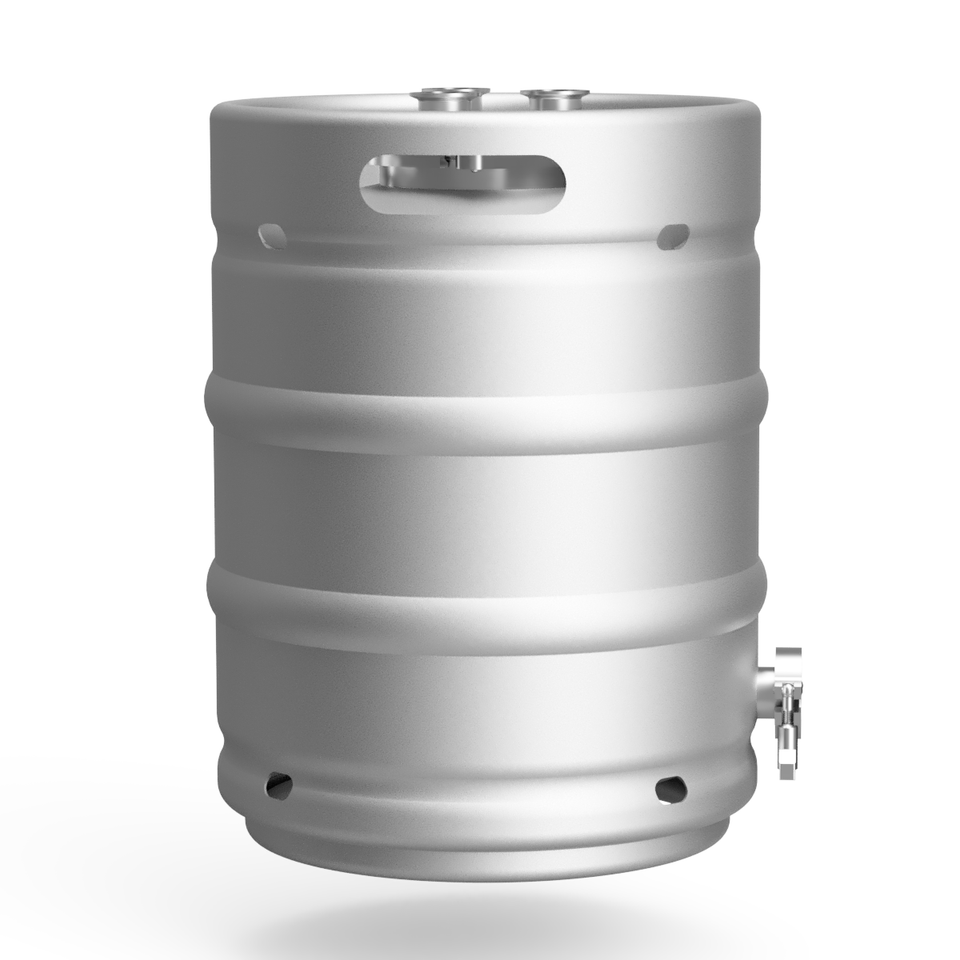

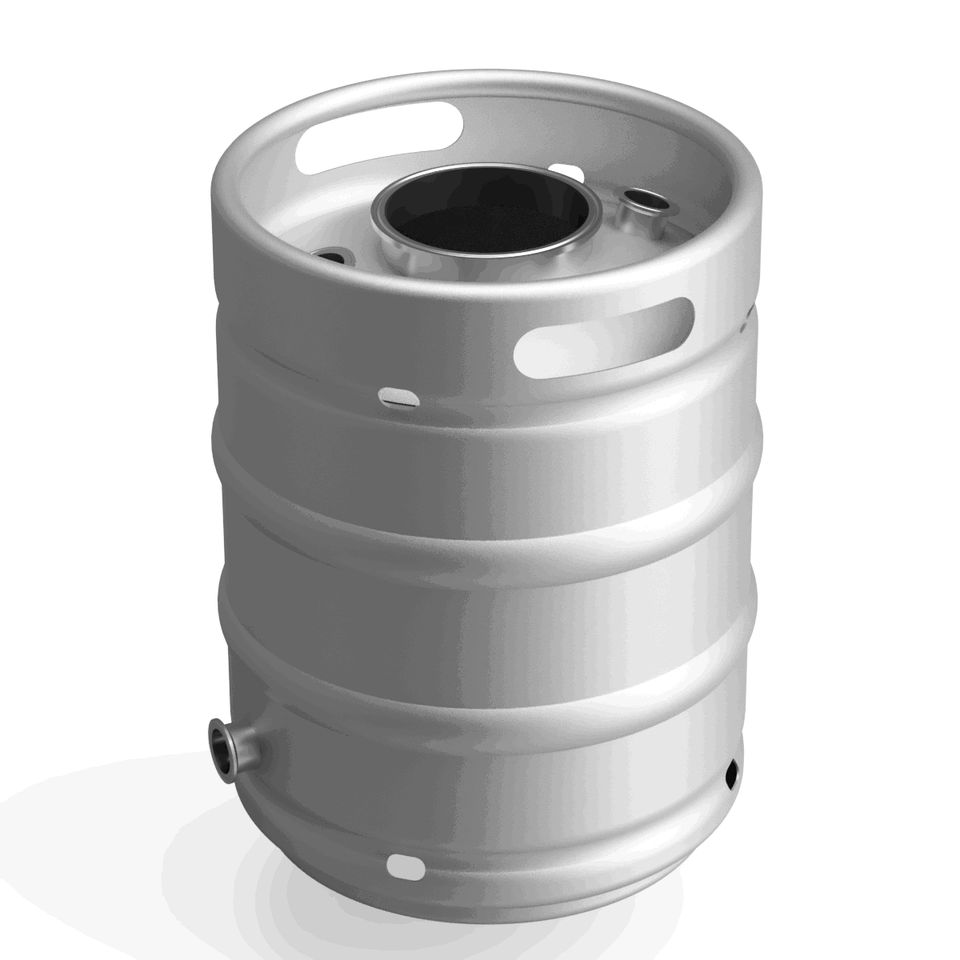

50L 316L Stainless Steel Keg
Constructed from high-quality 316L stainless steel, this 50L keg is designed for superior durability and optimal sanitation. Rated to withstand pressures up to 80 PSI, it offers reliability and safety for high-pressure applications. The keg features a versatile 6" Tri-Clamp opening for easy filling and access, along with two 1.5" Tri-Clamp ports on opposite sides for versatile connections. A bottom-side 1.5" TC drain port ensures efficient draining and cleaning, making this keg ideal for sanitary processes in brewing, pharmaceuticals, and food-grade applications.
Key Features
-
-
High-Quality 316L Stainless Steel Construction
Provides exceptional resistance to corrosion, high temperatures, and chemical exposure, making it an ideal choice for sanitary applications in sensitive environments. -
80 PSI Pressure Rating
Designed to safely handle high-pressure applications, ensuring stable and reliable performance even in demanding conditions. -
6" Tri-Clamp Opening
The large top opening allows for convenient filling, inspection, and cleaning, enhancing overall versatility and accessibility for a wide range of uses. -
Dual 1.5" Tri-Clamp Ports
Features two 1.5" ports positioned on opposite sides, offering flexible attachment options for fittings, sensors, or transfer lines to meet various application needs. -
1.5" Tri-Clamp Drain Port (Bottom-Side)
A strategically located bottom-side drain port enables efficient draining and thorough cleaning, supporting optimal hygiene and ease of maintenance.
-
|
Specification |
Details |
|
Material |
304 Stainless Steel |
|
Capacity |
50L |
|
Lid Size |
6" Tri-Clamp |
|
PSI Rating |
80 psi |
|
Lid Connections |
6" TC |
|
Top Connection |
2x 1.5" Tri-Clamp |
|
Drain Connection |
1.5" Tri-Clamp |
|
Exterior Dimensions (in) |
16" L x 16" W x 21" H |
|
Exterior Dimensions (MM) |
410 x 410 x 532 (mm) |
|
Inner Body Height |
20.5"(in) | 520 (mm) |
|
Inner Diameter |
15" (in) | 381 (mm) |
|
Weight |
34 lbs |
|
Packing List for Fitted Keg |
Item Quantity |
|
50L 316L Sanitary Keg |
1 pc |
|
1.5" Polycarbonate Sight Glass |
2 pcs |
|
1.5" 316L Solid End Cap |
1 pc |
|
6" Buna-N Gasket |
1 pc |
|
1.5" Buna-N Gasket |
3 pcs |
|
6" Standard Pressure Tri-Clamp |
1 pc |
|
1.5" Standard Pressure Tri-Clamp |
3 pcs |
|
6"TC 316L Lid w/ 3x 1.5" TC Ports |
1 pc |
