The USA Lab 300L stainless steel mixing tank is a durable, corrosion-resistant industrial equipment that is designed to mix and blend liquids, powders, and other materials. This tank is equiped with various motor options to help find your perfect mix.
For custom motor requirements or shaft lengths please call or email.
|
300L Specifications |
|
|
Material |
304 Stainless Steel |
|
Jacket Connections |
1.5" TC |
|
Top Tri-Clamp Connection |
12" Tri-Clamp |
|
Side Ports |
(2) 1.5" TC | 1/2" Comp. | (2) 3" TC |
|
Bottom Tri-Clamp Connection |
6" Tri-Clamp |
|
Jacket Capacity |
44L |
|
Dimensions |
30x30x68" |
|
Weight |
300lbs |
|
Caster Weight Limit |
440lbs per wheel (1760lbs total) |
|
Height – 6" Tri-Clamp to Floor |
18" |
|
Mixer Specifications |
|||
|
Model |
MM-3TC-E |
MM-3TC-P |
TCM050VDD |
|
Size |
1/4 HP Electric |
1/2 HP Pneumatic |
1/2 HP UL Listed Direct Drive |
|
Mount |
3" Tri-Clamp |
3" Tri-Clamp |
3" Tri-Clamp |
|
Pressure Rating |
90 PSI |
90 PSI |
250 PSI |
|
Negative Pressure Rating |
Ultimate Vacuum |
Ultimate Vacuum |
Ultimate Vacuum |
|
Max Input/ Output Current |
2A - 10A |
16.5 CFM |
2.0/1.0 A |
|
RPM |
50-1000 |
50-720 |
175-1750 |
|
Voltage |
115V |
N/A |
115V |
|
Shaft Material |
316SS |
316SS |
316SS |
|

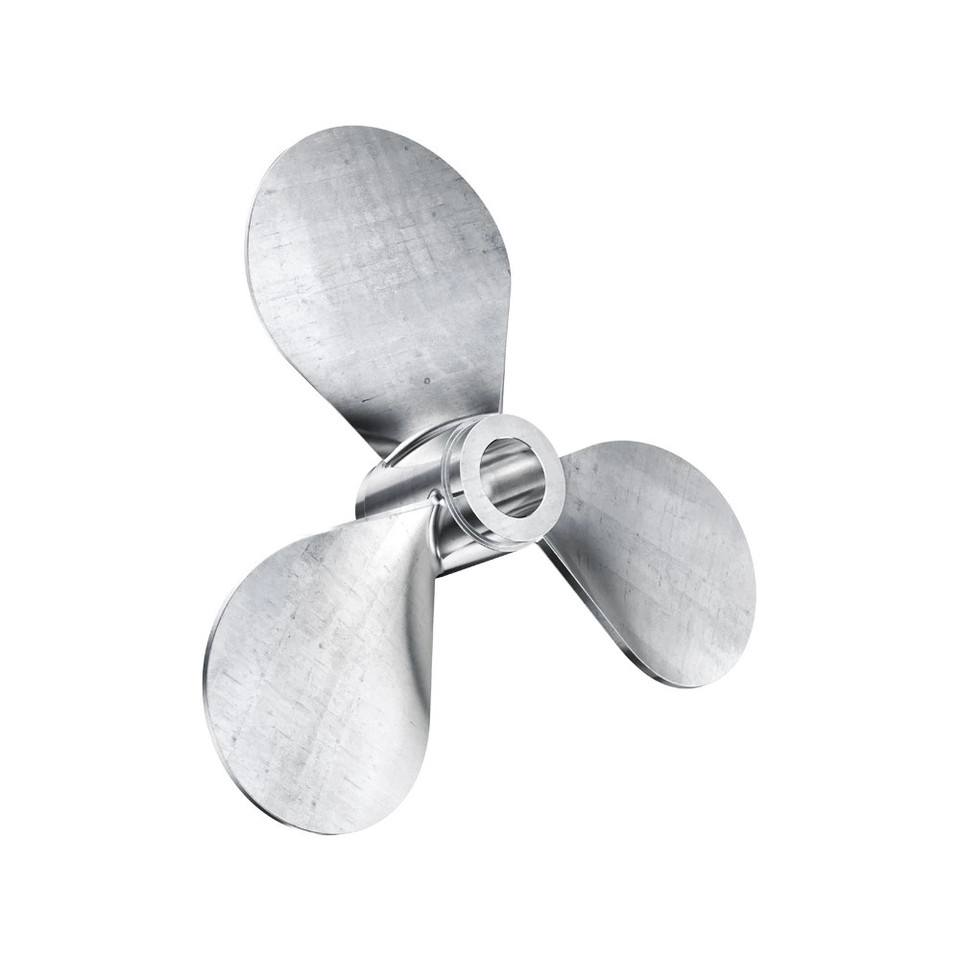

Impeller Diameter |
4 IN |
4 IN |
3 IN |
|
Shaft Diameter |
.625 IN |
.625 IN |
.625 IN |
|
Shaft Length |
32 IN |
32 IN |
32 IN |
