The USA Lab UC-50/30 is a powerful -30°C Chiller with a 50L Reservoir. This chiller is a true laboratory chiller that is ideal for applications involving vacuum systems, jacketed reactors, rotary evaporators, columns, solvent tanks, and even analytical instruments.
The USA Lab UC-50/30 chillers offer unbeatable performance, ease of use and high reliability. These units keep quiet despite having a powerful pump allowing for constant flow rates to match the needs of demanding applications.
NOT Compaible With 208V Power Input
(Acceptable range: 219V - 253V)
|
UC-50/30 Specifications |
|
|
Model |
UC-5030 |
|
Reservoir Capacity |
50L |
|
Reservoir Dimensions |
17.8" x 13.7" |
|
Temperature Range |
Room Temperature to -30°C / -22°F |
|
Power Requirements |
220-240V 60Hz 30A 6000W Single Phase |
|
Refrigerating BTUs |
2,508BTU - 37,617BTU |
|
Circulating Pump Wattage |
100W |
|
Temperature Accuracy |
+/- 0.5°C |
|
Pump Flow |
42L/Min |
|
Pump Pressure (lift/height) |
2.5psi @ 3.9ft - 8.8psi @ 18.7ft |
|
Barb Size |
5/8" |
|
Refrigerant |
R404 |
|
Dimensions |
31" x 26" x 46" |
|
Weight |
174lbs |
|

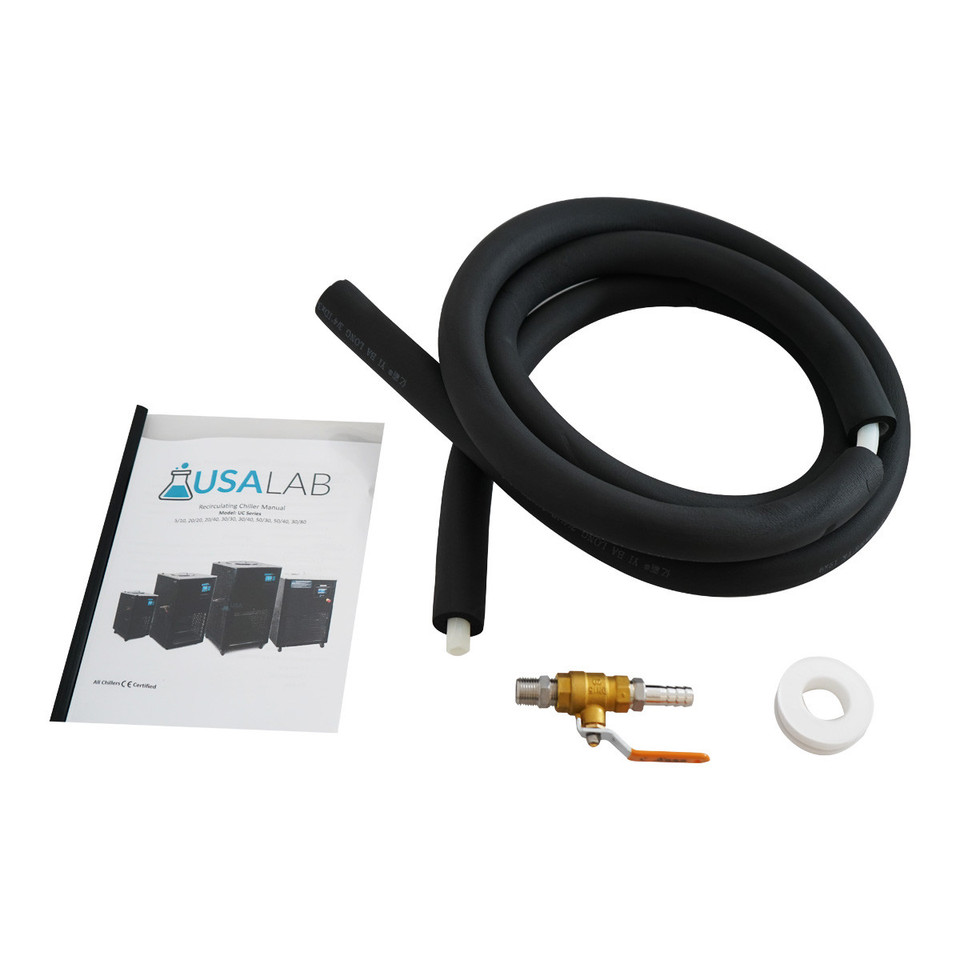

UC-5030 Packing List |
|
|
USA Lab UC-5030 Chiller |
1 unit |
|
5/8" Insulated Tubing |
11ft |
|
5/8" Barbed Valve |
1 pc |
|
PTFE Sealing Tape |
1 pc |
