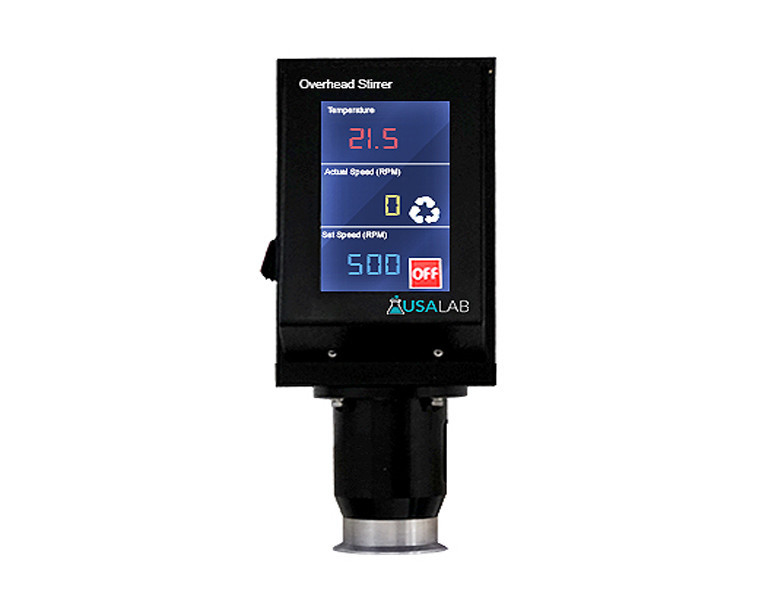

Designed to attach to a 3" Tri-Clamp mount fittings, Our Tri-Clamp Mount Variable Speed Mixer offers extreme durability and versatility. Engineered with outstanding durability and lightweight portability, these agitators come equipped with stainless steel propellers. This model is equipped with a Touchscreen interface which it allows for a clear visual of set RPM, current Rpm and temperature display.
|
Specifications |
|
|
Model |
MM-3TC-E-TS |
|
Material |
Painted Steel |
|
Mount |
3" Tri-Clamp |
|
Pressure Rating |
90 PSI |
|
Negative Pressure Rating |
Ultimate Vacuum |
|
Max Input/ Output Current |
2A - 10A |
|
RPM |
50-1000 |
|
Voltage |
115V |
|
Probe Type |
PT100 |
|
Probe Connection |
Mini DIN |
|
Shaft Material |
316SS |
|
Impeller Diameter |
4 IN |
|
Shaft Diameter |
.625 IN |
|
Shaft Length |
32 IN |
|
Wattage |
200W |
*For any custom rod lengths or additional blades please call or email*
The mixer comes with a 2" probe attached to a 58" wire. If you are interested in a different style of probe, please fill out a custom request form: **CLICK HERE**
For Technical Support, Questions, or Other Issues Please Email or Call Us!
