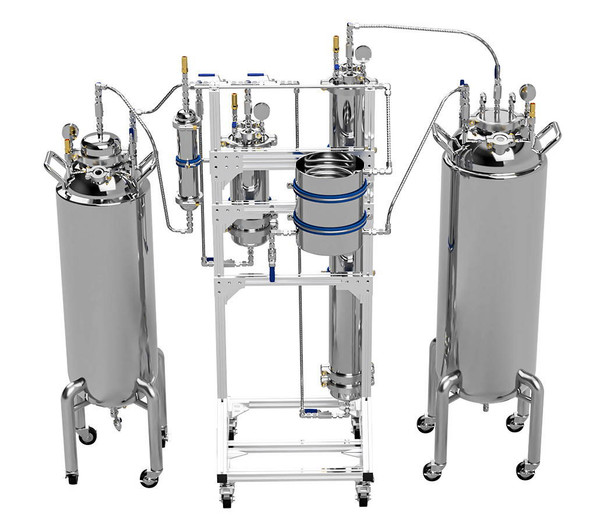

USA Lab Atlas Series 5lb Closed Loop Extractor - Optional Peer Review
USA Lab$15,000.00 - $36,499.00** Designed for use with Pure Butane & 70/30 Propane Blend **Contact us for upgrade options The ATLAS series is our way of bringing back quality, reliability, and accurate systems back to the... -
USA Lab CRH Closed Loop Heaters - 300°C - 6kw, 9kw, 18kw ,27kw & 36kw
USA LabCRH-$6,598.00 - $13,999.00Introducing the USA Lab CRH Heaters, the pinnacle of heating technology designed to elevate your laboratory experiments and applications to new heights. With an impressive temperature range that...
Description
***DISCLAIMER***
Our Closed Loop Systems are intended for legal purposes only. They are to be used in well ventilated areas and under accordance with local laws.
** Designed for use with pure Butane **
Contact us for upgrade options for blended solvent or propane
Contact us for upgrade options for blended solvent or propane
Our 2lb Closed Loop Stainless Steel Extractor System is a fully sealed, fully closed system that allows users to perform botanical extraction while maintaining a closed loop system, exposing no solvents to the air. This system is a passive unit that allows users to change pressure in the system via temperature change. Our 2lb closed loop extractor has been fully upgraded with high quality polished 304 Stainless Steel parts, premium Superlok Ball Valves, 3.3 Borosilicate Sight Glass, and High Pressure Tri-Clamps. No expense has been spared with this system to provide high quality parts at an affordable price.
BASE = The extractor without any ancillary equipment.
STARTER = [BASE] + Recovery Tank, JIC lines, and Vacuum Pump.
TURNKEY = [BASE + STARTER] + Vacuum Oven, and Scale.
|
2LB-CLS Specifications |
|
|
Material |
304 Stainless Steel |
|
Capacity |
2lb (900G) |
|
Gasket Type |
Buna-N |
|
PSI Rating |
150psi |
|
Lid Connections |
(2x 1.5" Tri-Clamp) (1x 2" Tri-Clamp) (2x 1/4" FNPT) (2x 1/2" FNPT) |
|
2LB-CLS Packing List |
|
|
8" Hemispherical Lid with (2x 1.5" Tri-Clamp) (1x 2" Tri-Clamp) (2x1/4" FNPT) (2x1/2"FNPT) |
1 pc |
|
8" x 8" Tri-Clamp Spool |
1 pc |
|
Weld Base Spool Splatter Platter 8" x 2" |
1 pc |
|
8" High Pressure Tri-Clamp |
2 pcs |
|
1.5" to 4" Hemi Reducer |
1 pc |
|
2" Meta Sight Glass |
2 pcs |
|
2" Tri-Clamp Ball Valve SS304 - 1000PSI |
1 pc |
|
4" Tri-Clamp Filter Plate Kit with 100 Micron Mesh & Filter Ring |
1 pc |
|
4" X 24" Tri-Clamp Spool |
1 pc |
|
4" Showerhead Cap with 1/4" FNPT |
1 pc |
|
2" High Pressure Tri-Clamp |
3 pcs |
|
4" High Pressure Tri-Clamp |
3 pcs |
|
1.5" High Pressure Tri-Clamp |
2 pcs |
|
8" Buna Gasket |
2 pcs |
|
4" Buna Gasket |
3 pcs |
|
2" Buna Gasket |
3 pcs |
|
1.5" Buna Gasket |
2 pcs |
|
1/2" Superlok Valve |
2 pcs |
|
Hex Nipple 1/2" MNPT to 1/2" MNPT Union |
2 pcs |
|
1/2" MNPT to 1/4" JIC |
2 pcs |
|
1/4" Superlok Ball Valve |
2 pcs |
|
Hex Nipple 1/4" MNPT to 1/4" MNPT Union |
2 pcs |
|
1/4" MNPT to 1/4" JIC |
2 pcs |
|
1/4" Hex Plug |
1 pc |
|
Glycerin Filled Gauge with 1/4" NPT Base |
2 pcs |
|
3 Way MxFxF Street Tee NPT - 1/4" |
1 pc |
|
4-Way FxFxFxM - 1/4" |
1 pc |
|
150 PSI Pressure Release Valve 1/4" MNPT |
1 pc |
Our USA Lab Vacuum Ovens are a top of the line product compared to others that are currently on the market while maintaining an affordable price. We also provide an all stainless-steel tubing interior, oil filled vacuum gauge, stainless steel vacuum vent & valve, and a 1-year warranty. Users can stack our ovens with ease and manifold vacuum lines together for ease of use. The bottom, back, left side, and right side are heated!
Our ovens provide superior quality and allow users to greatly reduce drying times by pulling a uniform vacuum level inside the oven. Safety features include a circuit breaker and an over temperature controller.
Our ovens come equipped with the highest quality parts to serve you better and to make your equipment last longer.
Upgrade today and see the USA Lab quality difference!
This Oven comes with 4 individual shelves.
|
USA-VO-09 Specifications |
|
|
Model |
USA-VO-09 |
|
Capacity |
25L / .9 cu ft |
|
Input Power |
700W |
|
Power Requirements |
110-120V | Single Phase | 60Hz |
|
Temperature Range |
RT+10°C to 200°C |
|
Temperature Accuracy |
± 1°C |
|
Lowest Vacuum Depth |
1 Torr / 1,000 Microns / 1 mmHg(a) |
|
Vacuum Port Size |
KF25 / NW25 |
|
Wattage |
500W |
|
Plug Type |
NEMA 5-15p |
|
Heated Walls |
Back, Bottom, L Side, R Side |
|
Shelves Included |
4 Shelves |
|
Shelving Configurations (max) |
8 Shelves |
|
Light Strip |
White LED |
|
Interior Material |
SS304 |
|
Chamber Dimensions (in) |
11.9" X 11.7" X 10.9" |
|
Exterior Dimensions (in) |
23.8"x 19.3" x 17.7" |
|
USA-VO-09 Packing List |
|
|
USA-VO-09 Oven |
1 |
|
Shelves |
4 (+4 available with USA-VO-09-WS) |
|
KF25 TO 1/4" Male JIC |
1 |
|
KF25 Clamp |
1 |
|
KF25 O-ring |
1 |
|
Manual |
1 |
|
VPD-265 Vacuum Pump w/ Oil |
0 |
|
1/4" 37° JIC Stainless Steel Hose 24" |
0 |
|
VPD 265 Specifications |
|
|
Model |
VPD-265 |
|
Power |
110-120V - 60hz - 15A - 5-15 Plug |
|
Motor Wattage |
550W |
|
Flow Rate |
6.5CFM |
|
Ultimate Vacuum |
2pa - 15 Microns |
|
Oil Capacity |
380mL |
|
Exterior Dimensions |
13" L x 6" W x 13" H |
|
Weight |
23lbs |
|
VPD 265 Packing List |
|
|
Item |
Quantity |
|
USA Lab VPD-265 Vacuum Pump |
1 |
|
16oz. Vacuum Pump Oil |
2 |
|
USA Lab VPD-Filter |
1 |
|
KF25 Centering Ring |
1 |
|
KF25 Clamp |
1 |

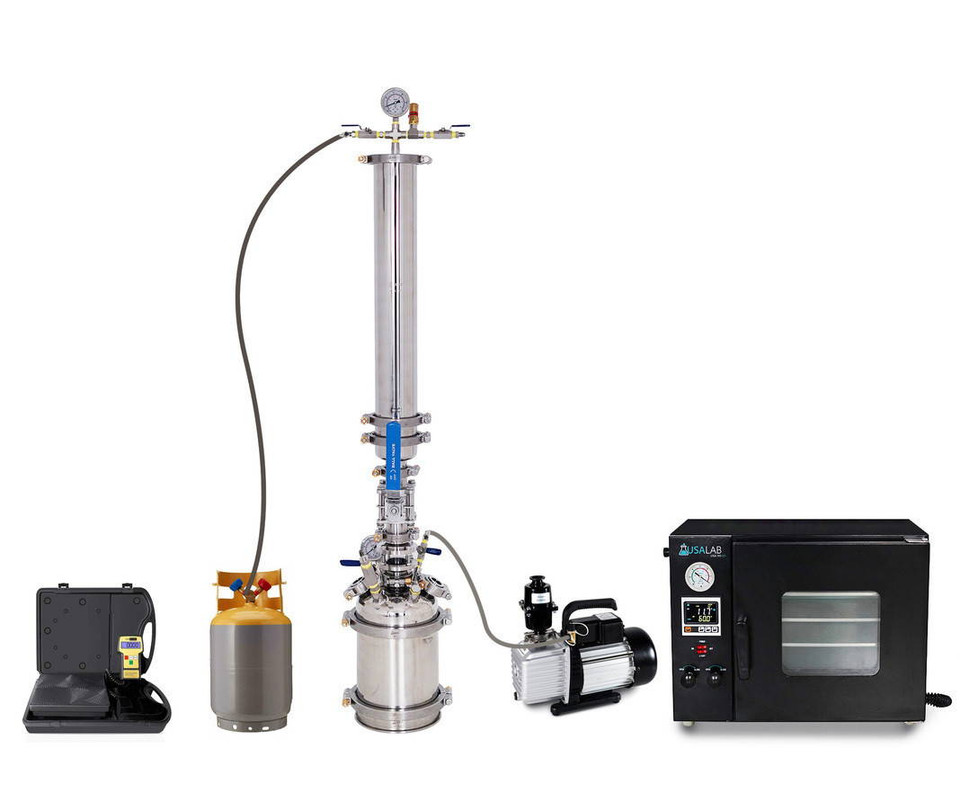

Complete 2LB Top Fill Closed Loop Extractor Turnkey Packing List
|
2LB-CLS-TS2 Packing List |
|
|
SKU |
Quantity |
|
2LB-CLS |
1 |
|
MC-RT-30LB |
1 |
|
USAJICHOSE14-36 |
2 |
|
USAJICHOSE14-48 |
1 |
|
USA-VO-09 |
1 |
|
ScaleHP |
1 |
|
VPD-265 |
1 |
For Technical Support, Questions, or Other Issues Please Email or Call Us!
