NOT Compaible With 208V Power Input
(Acceptable range: 219V - 253V)
|

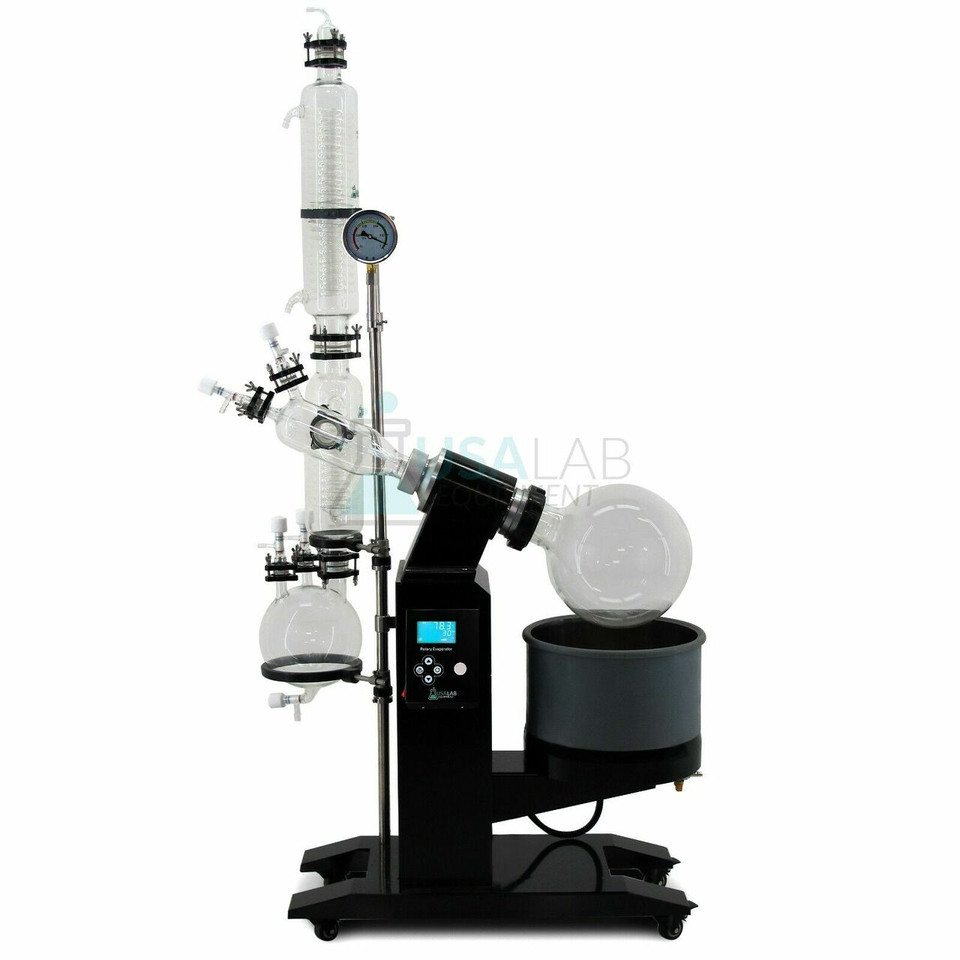

RE-1020-ETL Specifications |
|
|
Glass Material |
GG-17 Borosilicate Glass |
|
Evaporation Flask Capacity |
20L |
|
Collection Flask Capacity |
10L |
|
Rotary Speed |
20-120RPM |
|
Bath Temperature Range |
Room Temp to 180°C (356°F) |
|
Lifting Mechanism |
Electric |
|
Power Requirements |
220-240V 60Hz 30A Single Phase |
|
Temperature Control Accuracy |
+/-1°C |
|
Motor Wattage |
100W |
|
Heater BTUs |
17,000BTU |
|
Achievable Vacuum |
399.9Pa |
|
Evaporating Capability |
Water≥5L/H |
|
Alcohol≥12L/H |
|
|
Water Bath Volume |
41L |
|
Dimensions |
43"L x 30"W x 80"H |
|
Condensing Surface Area |
Main: 0.8m² |
|
Auxiliary: 0.39m² |
|
|
Speed Regulation |
Digital Step-Less |
|
Vacuum Barb |
13.3mm |
|
Condenser Barb |
15.5mm |
|

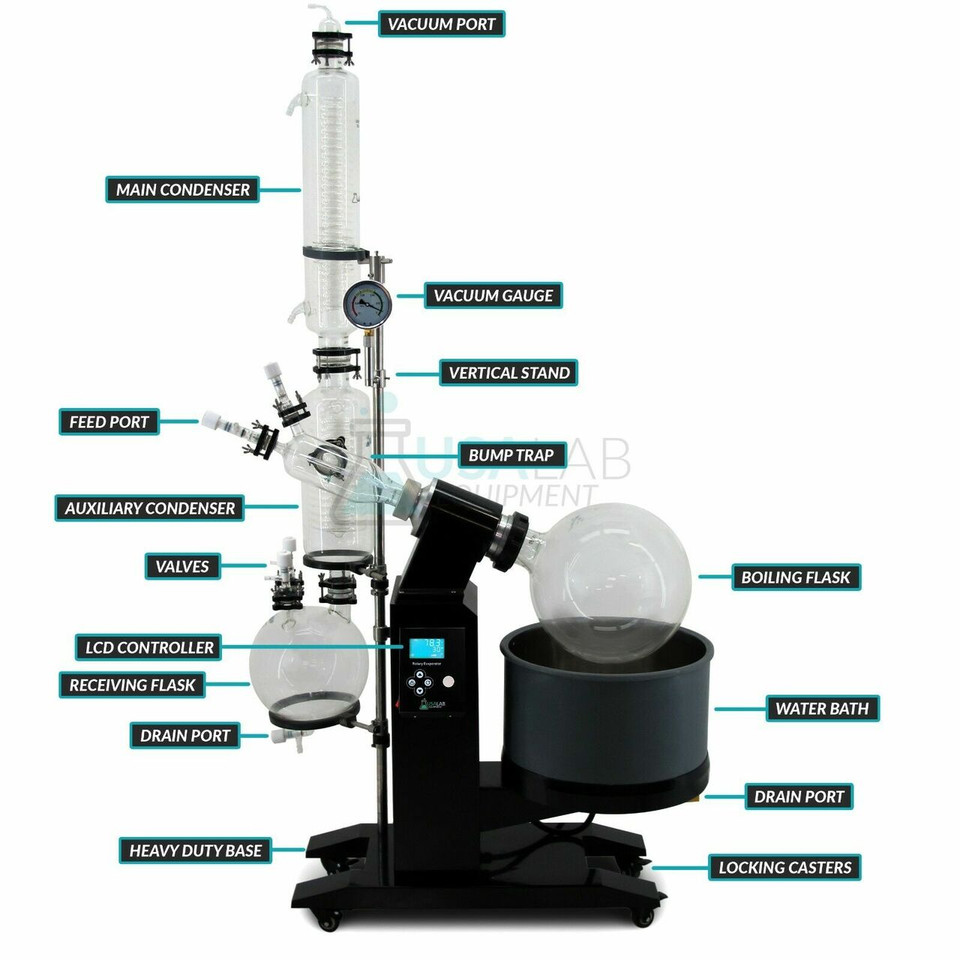

RE-1020-ETL Packing List |
|
|
Item |
Quantity |
|
20L RE-1020 Rotary Evaporator Base |
1 set |
|
Main Condenser |
1 pc |
|
Auxiliary Condenser |
1 pc |
|
20L Boiling Flask |
1 pc |
|
10L Receiving Flask |
1 pc |
|
Three-Way Bump Trap |
1 pc |
|
Vapor Duct with Seal (Pre-Installed) |
1 pc |
|
PTFE Vacuum Sealing Kit (Pre-Installed) |
1 pc |
|

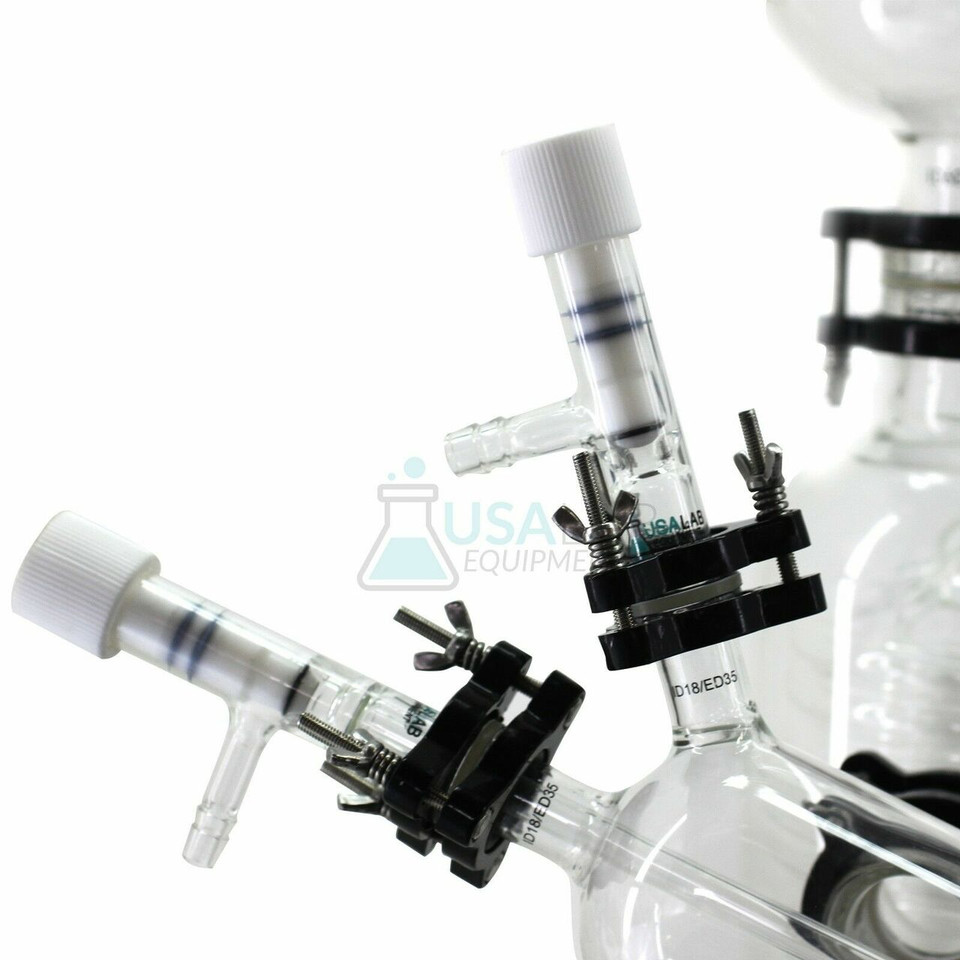

Glass Vacuum Port with PTFE Valve |
4 sets |
|
Glass Feeding Tube with PTFE Valve |
2 sets |
|
PTFE Feeding Tube with Extension Hose |
1 pc |
|
Vertical Stand |
1 pc |
|
Vacuum Gauge |
1 pc |
|
Support Ring |
2 pcs |
|
Rubber Strap for Condenser |
1 pc |
|

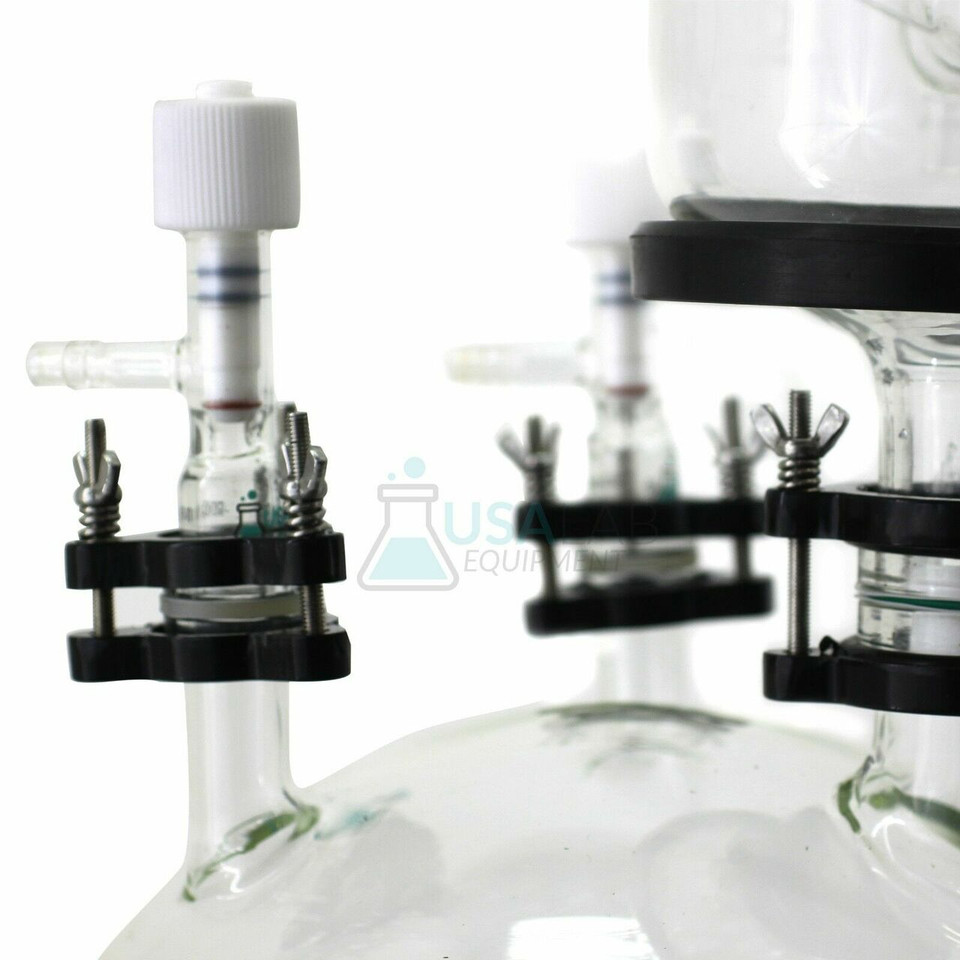

Clamp with PTFE Gasket |
7 sets |
|
Evaporator Flask Screw Aid |
1 pc |
|
Allen Key |
2 pcs |
|
32A Fuse |
1 pc |
|
Screw Nuts for Clamps |
2pcs |
|
Spring for Clamps |
2 pcs |
|

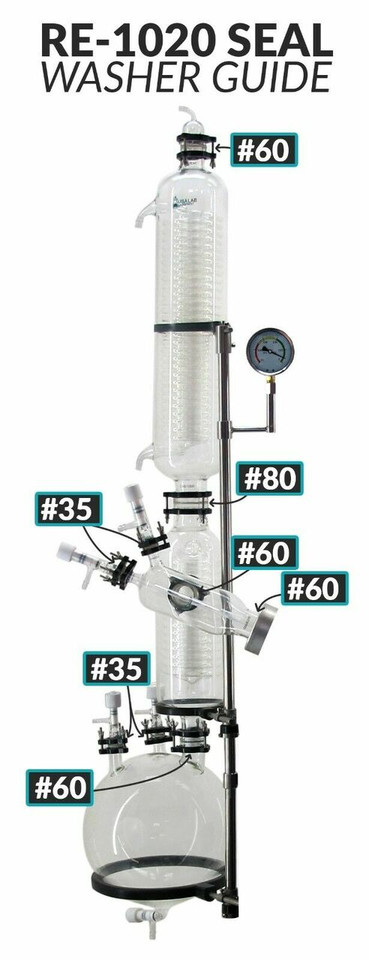

Gasket for Clamps |
4 sets |
|
3oz. Vacuum Grease |
1 pc |
|
Vacuum Hose |
10ft |
