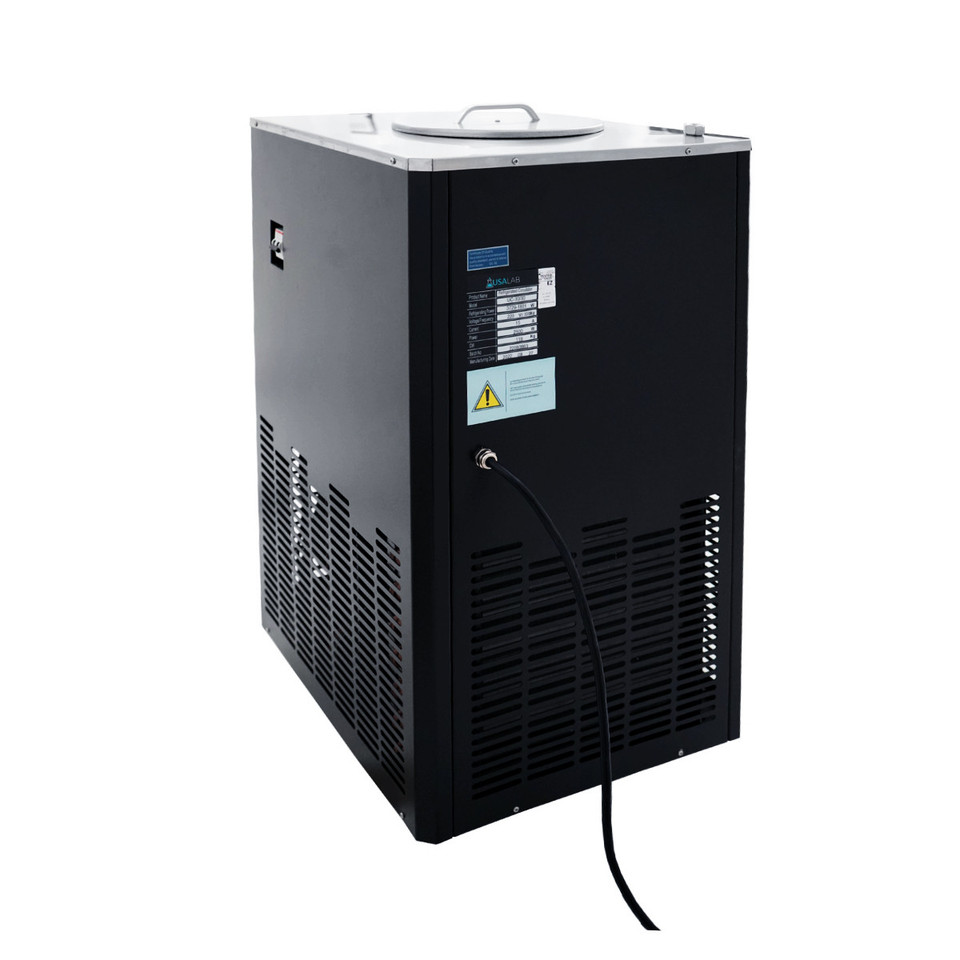

The USA Lab UC2020 is a powerful -20°C Chiller with a 20L Reservoir. This recirculating chiller is a true lab chiller than is ideal for applications involving vacuum systems, jacketed reactors, rotary evaporators, columns, solvent tanks, and even analytical instruments.
NOT Compaible With 208V Power Input
(Acceptable range: 219V - 253V)
|
UC-20/20 Specifications |
|
|
Model |
UC-2020 |
|
Reservoir Capacity |
20L |
|
Reservoir Dimensions |
11.8" x 11.8" |
|
Temperature Range |
Room Temperature to -20°C / -4°F |
|
Power Requirements |
220-240V 60Hz 9A 1800W Single Phase |
|
Refrigerating BTUs |
3,000BTU - 10,500BTU |
|
Circulating Pump Wattage |
100W |
|
Temperature Accuracy |
+/- 0.5°C |
|
Pump Flow |
42L/Min |
|
Pump Pressure (psi @ lift) |
2.5psi @ 3.9ft - 8.8psi @ 18.7ft |
|
Barb Size |
5/8" |
|
Refrigerant |
R404 |
|
Dimensions |
24.8" x 20.4" x 43.3" |
|
Weight |
154lbs |
|
UC-20/20 Packing List |
|
|
USA Lab UC-30/30 Chiller |
1 PC |
|
5/8" Insulated Tubing |
11ft |
|
5/8" barbed Valve |
1 PC |
|
PTFE Sealing Tape |
1 PC |
For Technical Support, Questions, or Other Issues Please Email or Call Us!
