NOT Compaible With 208V Power Input
(Acceptable range: 230V - 253V)
|

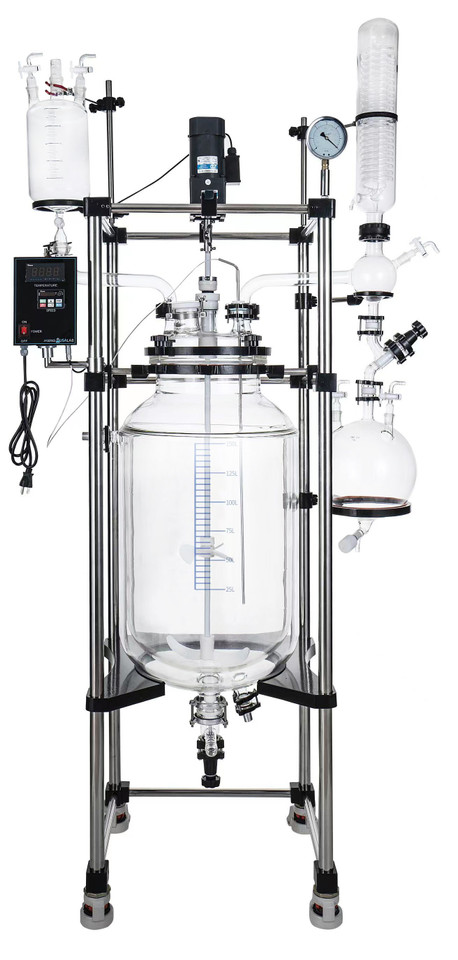

FEATURES |
|
• ETL to UL and CSA Standards |
|
• All glassware is made from high grade borosilicate glass that is durable and resistant. |
|
• Wide range of temperature operations -80°C to 210°C |
|
• All seals are PTFE to increase durability and longevity. PTFE is resistant to a large portion of solvents and chemicals. |
|
• Rugged, High RPM stirring motor for superior stirring power. |
|
• Large condensing area for faster condensing. |
|
• Durable stainless steel support frame with casters. |
|
SPECIFICATIONS |
||||||
|
Model |
JR5 |
JR10 |
JR20 |
JR50 |
JR100 |
JR150 |
|
Vessel Capacity |
5L / 1.32Gal |
10L / 2.6Gal |
20L / 5.28Gal |
50L / 13.20Gal |
100L / 26.41Gal |
150L / 39.62Gal |
|
Material Flask Capacity |
1L / 0.26Gal |
1L / 0.26Gal |
5L / 1.32Gal |
5L / 1.32Gal |
5L / 1.32Gal |
5L / 1.32Gal |
|
Receiving Flask Capacity |
Not included |
5L / 1.32Gal |
5L / 1.32Gal |
10L / 2.6Gal |
10L / 2.6Gal |
10L / 2.6Gal |
|
Fluid Jacket Capacity |
0.8L / 0.21Gal |
8L / 2.11Gal |
9L / 2.37Gal |
16L / 4.22Gal |
25L / 6.60Gal |
35L / 9.25Gal |
|
Glass Material |
GG-17 Borosilicate Glass |
|||||
|
Rotary Speed |
0-450RPM |
|||||
|
Glass Temperature Range |
-80°C to 210°C / -112°F to 410°F |
|||||
|
Power Requirements |
Non-ETL: 110-120V 60Hz 15A 1p | ETL: 230V 60Hz 15A 1p |
|||||
|
Stirrer Wattage |
90W (ETL 120W) |
90W (ETL 120W) |
90W (ETL 120W) |
90W (ETL 120W) |
200W (ETL 200W) |
250W |
|
Lowest Vacuum Level |
0.0033 Mpa | 25 Torr | 25,000 Micron |
|||||
|
Speed Regulation |
Digital Step-Less |
|||||
|
Condenser and Feed Valve Barbs |
10MM - 3/8" |
|||||
|
Bottom Drain Port |
35MM - 1 3/8" |
|||||
|
Receiving Flask Barb |
16MM - 5/8" |
|||||
|
Jacket Pressure |
Maximum 29 psi - Nominal 25 psi |
|||||
|
Fluid Connection |
16MM - 5/8" barb or 1/2" NPT (JR-100: 5/8 Barb or 3/4" MNPT) |
|||||
|
Certification |
ETL to UL and CSA Standards (Optional) |
|||||
|
External Dimensions LxWxH |
16 x 18 x 68" |
20.4 x 20.4 x 70" |
39 x 20.4 x 79" |
41 x 23 x 90" |
48 x 34 x 102" |
50 x 34 x 108" |
|
Weight |
75 lbs |
149 lbs. |
176 lbs |
205lbs |
275 lbs |
598 lbs |
|
PACKING LIST |
|
|
Model |
Quantity |
|
Vessel with Rack (Pre-assembled) |
1 |
|
Main Condenser |
1 |
|
Material Flask |
1 |
|
Receiving Flask |
1 |
|
Reflux Flask |
1 |
|
C Clamp Valve |
1 |
|
Feed Ports |
6 Sets |
|
Stopper |
1 |
|
Clamp for Material Flask |
1 |
|
Strap for Condenser |
1 Set |
|
Sealing Screw / Flange |
3 Sets |
|
Fluid Line Sealing Clamp / Flange |
2 sets |
|
Control Box |
1 |
|
Vacuum Gauge |
1 |
|
Support Rings |
2 |
|
Stirring Motor w/ Paddle |
1 |
|
Temperature Probe |
1 |
|
Liquid 5/8" Connections |
2 |
|
Metal Clamp |
2 |
|
Insulation Wrap |
1 |
|
Dow Corning Vacuum Grease |
1 |
|
Vacuum Hose |
10 ft. |
|
PACKING LIST |
|||
|
Model |

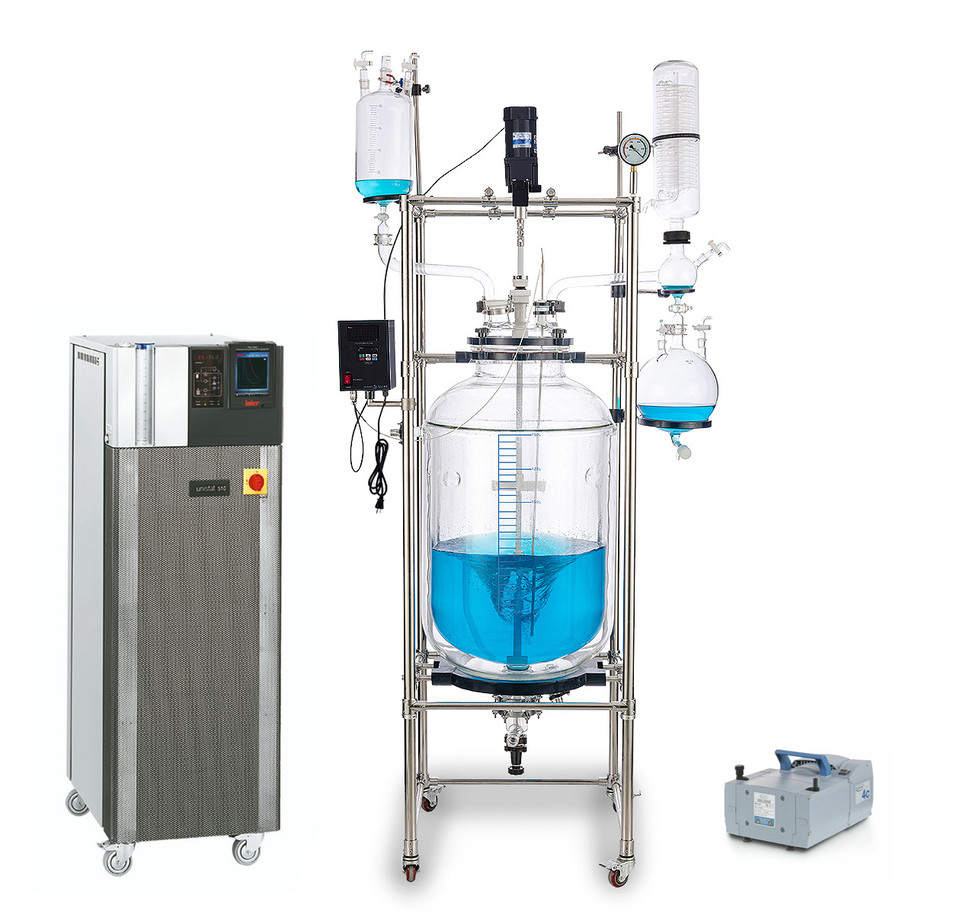

JR150-ETL-VBTK |
JR150-ETL-VBTK-H |
JR150-ETL-CTK-H |
|
150L reactor ETL (Standalone) |
1 |
1 |
1 |
|
Vacuubrand MD 4C Diaphragm Pump |
1 |
1 |
1 |
|
8mm Vacuum Hose - 10ft |
1 |
1 |
1 |
|
DuPont Molykote High Vacuum Grease |
1 |
1 |
1 |
|
Propylene Glycol 5 Gallon |
4 |
4 |
N/A |
|
UC-5030 |
1 |
1 |
N/A |
|
UHC-5040 |
1 |
N/A |
N/A |
|
Unistat 405 - UL |
N/A |
1 |
N/A |
|
Unistat 510 - UL |
N/A |
N/A |
1 |
|
JR REACTOR LID SPECIFICATIONS |
||||||
|
Model |
JR-5L |
JR-10L |
JR-20L |
JR-50L |
JR-100L |
JR-150L |
|
Left Port |
29mm Joint |
40mm Joint |
50mm Ball Joint |
50mm Ball Joint |
50mm Ball Joint |
50mm Ball Joint |
|
Right Port |
35mm Ball Joint |
50mm Ball Joint |
50mm Ball Joint |
50mm Ball Joint |
50mm Ball Joint |
50mm Ball Joint |
|
Rear Port |
24mm Joint |
34mm Joint |
34mm Joint |
34mm Joint |
34mm Joint |
34mm Joint |
|
Stirring Port |
50mm Flange Port |
50mm Flange Port |
50mm Flange Port |
50mm Flange Port |
60mm Flange Port |
60mm Flange Port |
|
Front Port 1 |
N/A |
80mm with PTFE Lid |
80mm with PTFE Lid |
80mm with PTFE Lid |
80mm with PTFE Lid |
80mm with PTFE Lid |
|
Front Port 2 |
24mm Joint |
50mm Flange Port |
50mm Flange Port |
50mm Flange Port |
50mm Flange Port |
50mm Flange Port |
| DIAPHRAGM PUMP INFO | |
 |
Vacuubrand MD 4C NT 2.2CFM Chemistry Diaphragm Pump 110V |
| CHILLER INFO | |
 |
USA Lab -30°C 50L Recirculating Chiller UC-50/30 30L/Min |
| HEATER CHILLER INFO | |
 |
USA Lab -40°C to 200°C 12L Heater Chiller UHC-50/40 |
| UNISTAT 405 - UL INFO | |
 |
Huber Unistat 405 with Pilot ONE - UL |
| UNISTAT 510 - UL INFO | |
 |
Huber Unistat 510 with Pilot ONE |
|
VACUUM GREASE INFO |
|
|
|
DuPont Molykote High Vacuum Grease (Formerly Dow Corning) 5.3oz
|
