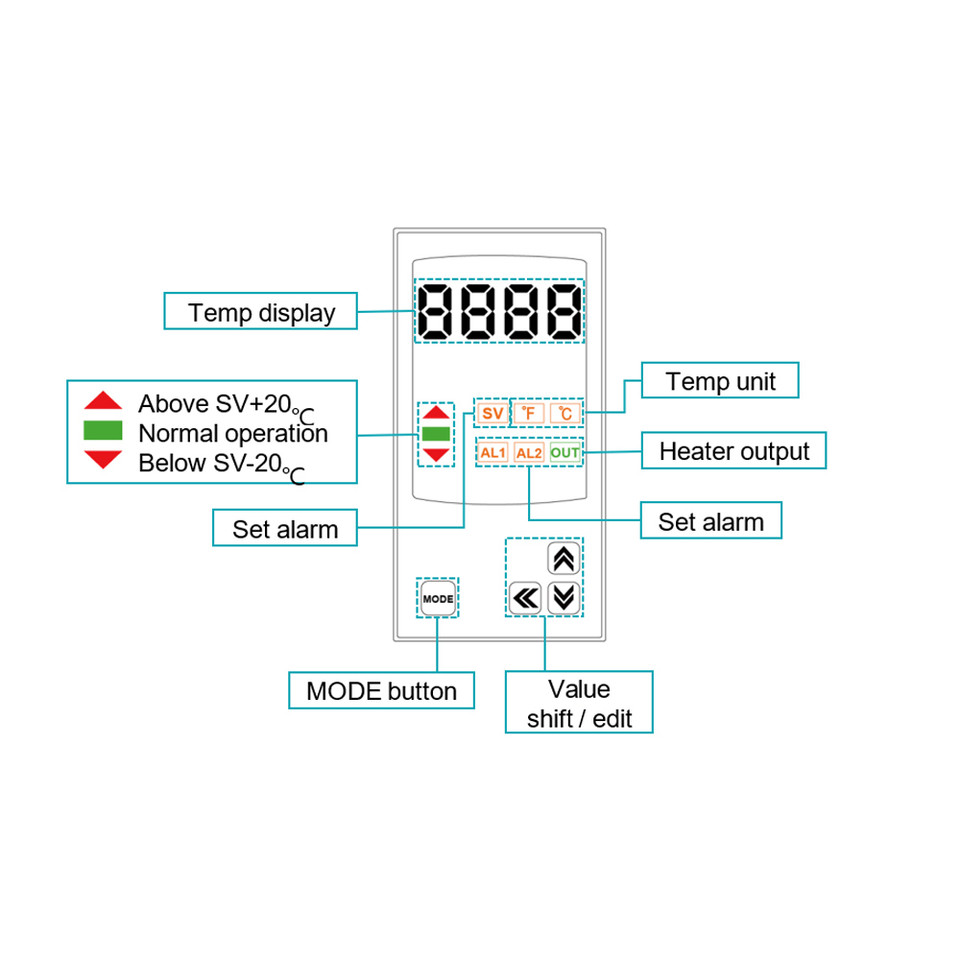

Our USA Lab HM heating and stirring mantles are a top of the line product compared to others that are currently on the market while maintaining an affordable price. Each mantle comes standard with a digital display for ease of use and accurate control. Rotation speeds are easily done by a knob rather than a digital display for ease of use and superior control. Our magnet motor is one of the most powerful on the market, yielding better agitation and more control.
Our HM laboratory digital heating mantle comes equipped with high quality parts to serve you better and to make your mantle last longer. Each unit comes with a extremely accurate K-Type probe, as well as an insulating heating top for exceptional heat retention inside your flask.
Upgrade today and see the USA Lab quality difference!
|
SPECIFICATIONS |
||||
|
Capacity |
2L |
5L |
12L |
22L |
|
Dimension |
Φ270x220mm |
Φ330x220mm |
Φ400x300mm |
Φ450x330mm |
|
Φ10.62x8.66inch |
Φ12.99x8.66inch |
Φ15.74X11.81inch |
Φ17.71x12.99 |
|
|
Jacket Heater |
110-120V, 350W |
110-120V, 600W |
220-240V, 1000W |
220-240V, 1400W |
|
Mantle Heater |
110-120V, 450W |
110-120V, 800W |
220-240V, 1400W |
220-240V, 1600W |
|
Motor |
10W |
10W |
60W |
60W |
|
Net Weight |
10 kg / 22.04 lbs |
13 kg / 28.66 lbs |
22 kg / 48.50 lbs |
30 kg / 66.13 lbs |
|
Max Temp |
300°C |
300°C |
300°C |
300°C |
|
Max RPM |
3000RPM |
3000RPM |
3000RPM |
3000RPM |
|
|
|
|
|
|
|
PACKING LIST |
||||
|
Capacity |
2L |
5L |
12L |
22L |
|
Mantle |
1 |
1 |
1 |
1 |
|
Top |
1 |
1 |
1 |
1 |
|
Probe |
1 |
1 |
1 |
1 |
|
Stir Bar |
1 |
1 |
1 |
1 |
|
Manual |
1 |
1 |
1 |
1 |
