** THIS ITEM IS DROP SHIPPED FROM OUR SUPPLIER, PLEASE CALL FOR LEAD TIME**
The Digivac DPP Quantum Gauge is an ultra wide range vacuum pressure sensor that combines the novel Quantum pirani with piezo technology to deliver a measurement range of 7.5 x 10 -6 to 1000 Torr. 0-10V output, RS232 and 1 relay included. Drop in replacement for MKS901, 925 a910 gauges.
DPP Quantum Gauge by Digivac | Wide Range Vacuum Sensor

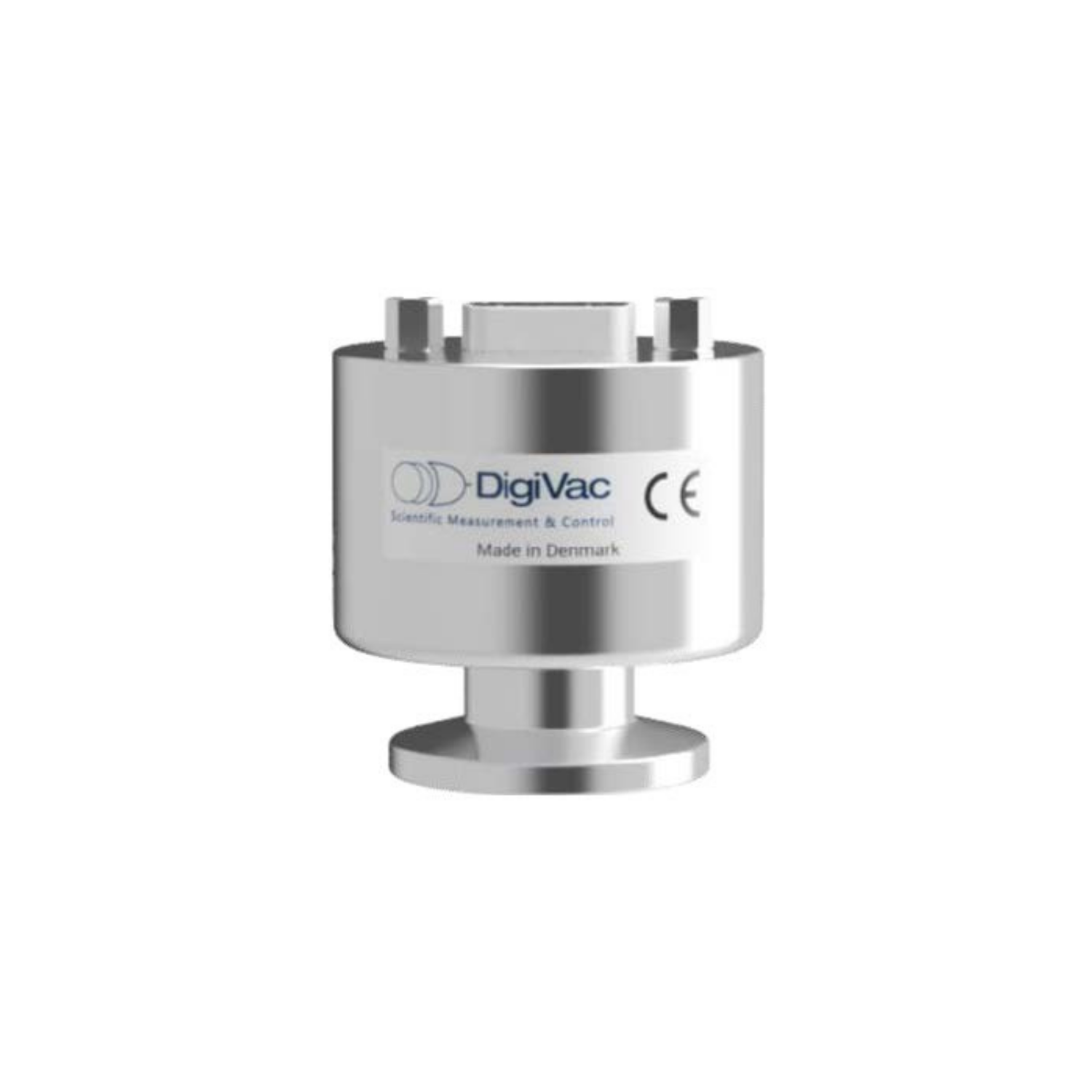

The Digivac DPP Quantum Gauge is an ultra wide range vacuum gauge that combines the novel Quantum pirani with piezo technology to deliver a measurement range of 7.5 x 10 -6 to 1000 Torr.
Measurement Range: 7.5 x 10 -6 to 1000 Torr
Accuracy Specifications:
1000 Torr to 5 Torr = +/- 3%
4.99 Torr to 10-5 Torr = +/- 14%
10-5 to 10-6 Torr = +/- 50%
Expect the Unexpected
Patent-pending Quantum Pirani that extends the measurable vacuum range by up to 3 decades combined with trusted rough vacuum piezo technology delivers a range of 9 decades. All at an attractive price point.
Ideal for Clean Processes
1000 Torr down to 10-6 Torr with no ion gauge required. Includes integrated baffle to protect and extend life of sensor and 1 solid
state relay for process control
Visual Pressure Indicator
Multi-color LEDs to indicate pressure range. Includes a bright yellow overpressure indicator to help you avoid system damage. This is very useful when not using a display controller.
Contamination Containment
Integrated baffle helps protect sensor elements from particulate contamination and increase its longevity
Two Options:
- SEN-DPP-MKS: is a drop in replacement for MKS901, MKS925 and MKS910 gauges with accuracy greater than 10-5 Torr
- KF16, light baffle, RS-232, MKS 901 Aout, 7.5e-6 to 1000 torr, 1 relay, 9 pin D-sub
- SEN-DPP-PKR: is a drop in replacement for Pfeiffer PKR 251 Compact FullRange™ Gauge
- DPP Quantum Pirani & Piezo sensor, KF16, light baffle, PKR 251 Aout, 7.5e-6 to 1000 torr, 43K resistor ID, FCC68
Quantum SmartSENS DPP | Wide range vacuum sensor
Why is the Quantum Gauge Series a Quantum Leap for Vacuum Measurement?
The Quantum Gauge Series is a quantum leap in simplicity and range for vacuum gauging. Smart pairings of sensor technologies that deliver what people really need.
All-in-one, highly accurate wide range vacuum measurement at a cost-effective price point.
Advantages
- Piezo + patent-pending Pirani technology with advanced signaling processing, which extends measurement range up to 3 decades. Read 9 decades of vacuum (10-6 to 1000 Torr) all with one gauge.
- 0-10 Volts analog out for PLC integration
- RS232
- Includes one solid state relay for process control
- Option for Drop in replacement for MKS901, MKS925, MKS910 with same electronic signaling and same connections
- Option for drop in replacement of PKR 251 gauges
Stable Zero Point Drift Compensation
The DPP transducer uses an innovative proprietary approach to active temperature compensation and calibration that provides an ultra-stable zero-point. This technology not only enables a reliable, wide dynamic range – it also eliminates the need for frequent user re-zeroing due to zero-point drift commonly known from legacy Pirani and convection gauges. The active temperature compensation also compensates for measurement signal errors introduced by fluctuations in the ambient temperature.
Applications
- Mass spectrometers
- Scanning electron microscopes
- Furnace heat treatment
- PVD coating of glass, optics, tools, etc.
- Refrigeration service and manufacturing
- Semiconductor processing
Other DigiVac Quantum Gauge Series Options: DCP DuoSENS, DPCP TriSENS
Vacuum Gauge comparison chart
Downloads
|
Technical Specifications |
||
|
Measuring Range |
7.5×10-6 to 1000 Torr |
|
|
Measurement Accuracy (Torr) |
||
|
From |
To |
Accuracy |
|
7.5 x 10-6 |
7.49 x 10-5 |
50% |
|
7.5 x 10-5 |
5.99 x 10 |
14% |
|
6.0 x 10 |
7.43 x 10+1 |
5% |
|
7.5 x 10+1 |
1000 Torr |
2% |
|
Supply voltage |
12-30 VDC |
|
|
Output Signal |
STD OUT |
|
|
Vacuum Interface |
KF16 |
|
For Technical Support, Questions, or Other Issues Please Email or Call Us!
Every gauge that leaves DigiVac is tested under actual vacuum and calibrated against a NIST standard. We warranty all gauges for workmanship and function for 1 year.* Each vacuum instrument has a serial number, which allows us to track the age of the gauge. Any gauge will be repaired and returned free of charge for any defects in workmanship or function, FOB Morganville, NJ.
Any gauge that becomes damaged (for example: tube contaminated, flashback or physical damaged) may be returned to DigiVac for repair at a time and materials rate. Please contact Digivac with a request for Return and an RMA number will be issued. A decontamination form will also need to be filled out.
Note: Sensors (also known as tubes or probes) are not covered under this manufactures warranty. These are classified as consumables.
Customers are responsible for handling shipping charges to and from our facility in New Jersey.
