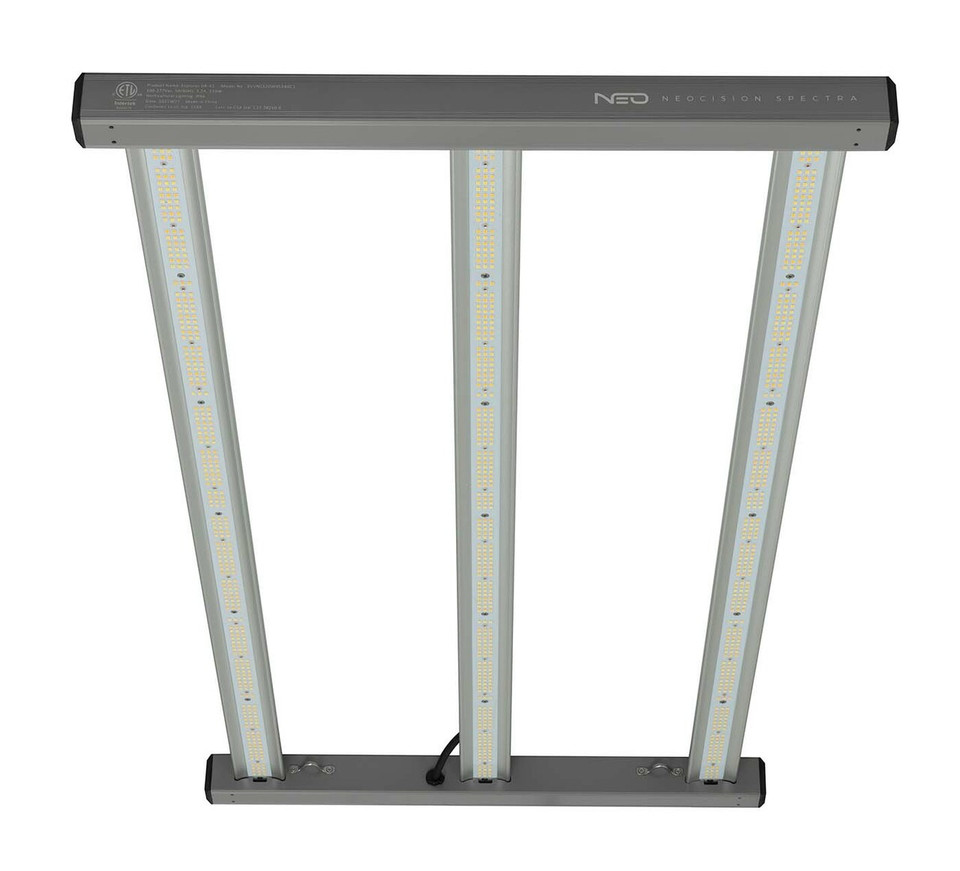

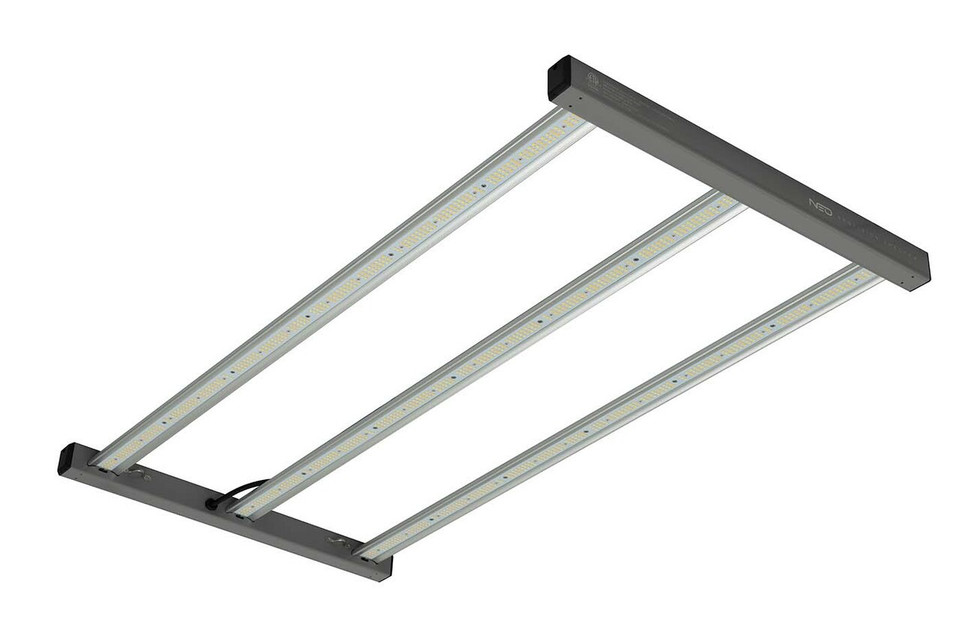

Explorer
Our Neocision Spectra Explorer grow light fixture is designed for a full grow cycle with maximized red for increased photosynthesis. Ideal for 2’ x 4’ tent environments for increased consistency and yield.
Neocision Spectra Explorer Cutsheet
FEATURES:
Efficacy up to 2.56 Micromoles / J @120 VAC
Industry Leading Horticulture LEDs
RJ Port for Plug and Play Control Systems
Fast and Easy Installation
7 Year Limited Warranty on Fixture
8 Year Limited Warranty on Driver
|
SPECTRUM AND EFFICACY |
|
|
PPF Efficacy: |
2.56 at 120VAC |
|
Photon Flux (µmol/s) (400-700nm): |
870 |
|
Photon Flux Blue (µmol/s) (400-500nm): |
161 |
|
Photon Flux Green (µmol/s) (500-600nm): |
355 |
|
Photon Flux Red (µmol/s) (600-700nm): |
355 |
|
Total Blue/Red - Energy Bands: |
516 |
|
% Blue: |
18.51% |
|
% Green: |
40.76% |
|
% Red: |
40.73% |
|
POWER |
|
|
Power Consumption: |
340W AC |
|

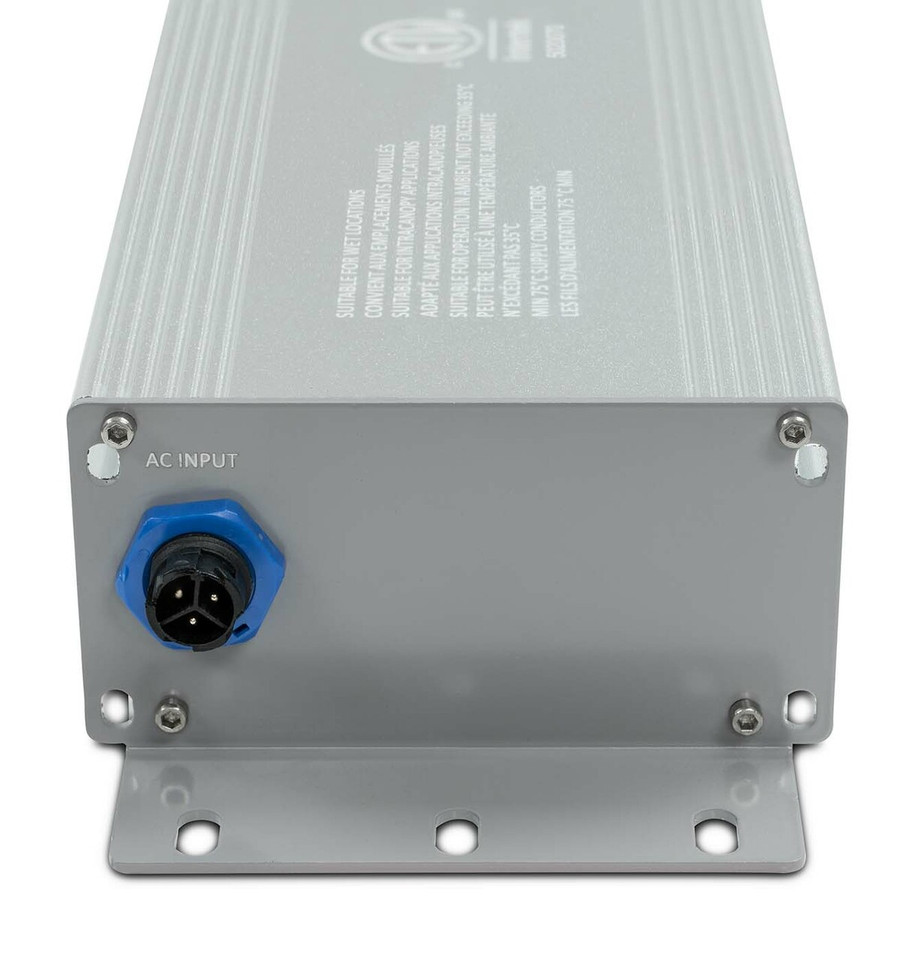

Driver: |
Sosen |
|
Power Factor: |
>0.95 |
|
Surge Protection: |
6 KV |
|
120V: |
2.90 A |
|
208V: |
1.75 A |
|
240V: |
1.51 A |
|
277V: |
1.31 A |
|
SPECTRUM AND EFFICACY |
|
|

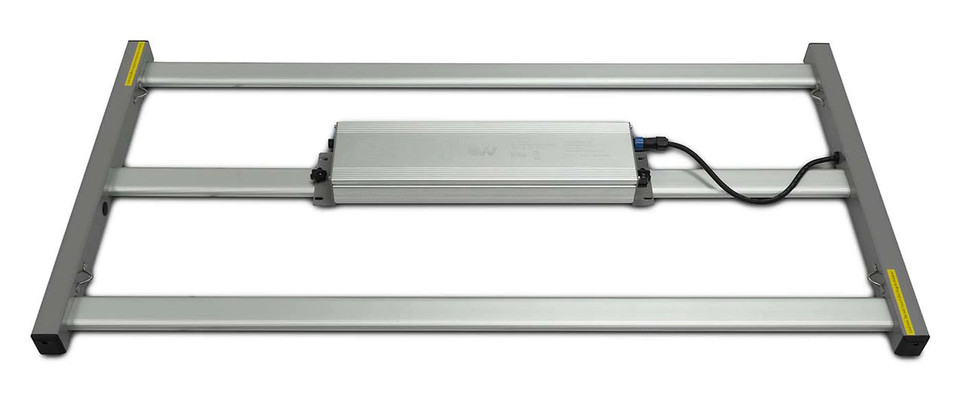

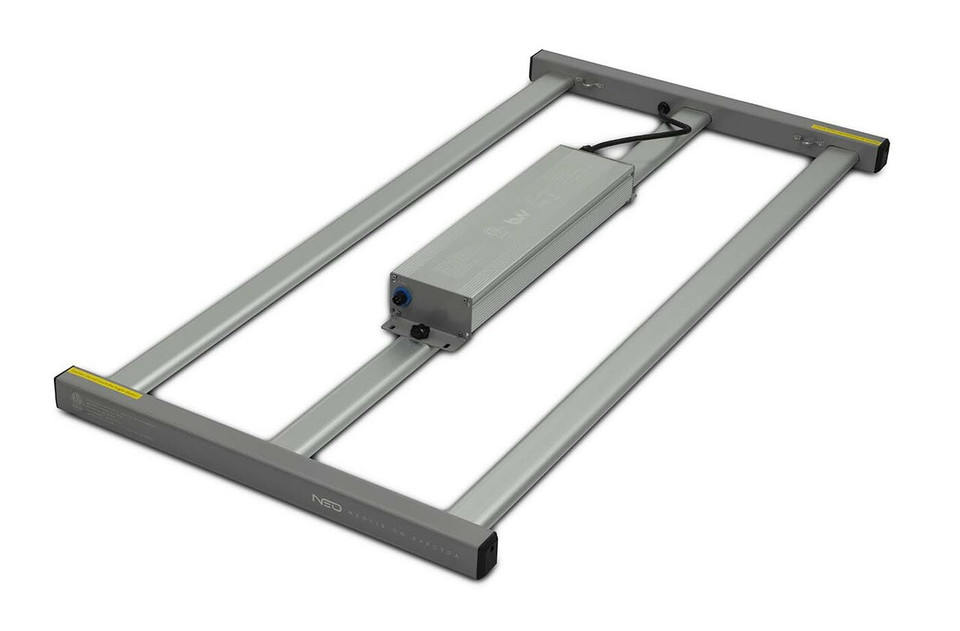

Fixture Size (driver mounted on the fixture): |
(L) 43.7” x (W) 22” x (H) 4.1” |
|
Fixture Size (without driver): |
(L) 43.7” x (W) 22” x (H) 1.6” |
|
Power Supply Dimension: |
(L)18.7” X (W) 4.4” X (H) 2.4” |
|
Driver Net Weight: |
6 lb. |
|
Fixture Net Weight: |
6 lb. |
|
OTHER |
|
|
Mounting Height |
>6” above canopy |
|
Beam Angle |
120 Degree |
|
Input Voltage |
100 - 277 VAC |
|
Manual Dimming Knob |
Yes |
|
Built In Control Ports |
Yes |
|
Standard Power Cord (Extensions available) |
AWG 18, 6 Foot |
|
Standard Plug |
120 VAC - NEMA 5-15P |
|
Substitute Plugs (Upon request at order for bulk purchases) |
240 VAC, 277 VAC, Pigtails |
|
Adjustable Height Hanging Kit Included |
Yes |
|
Fixture Warranty |
7 Years Limited |
|
Driver Warranty |
8 Years Limited |
|
ETL Safety Certified |
Conforms to UL 1598:2018 Ed.4Certified to CSA C22.2#250.0:2018 Ed.4*ETL Safety Certified No. 5020070
|
For Technical Support, Questions, or Other Issues Please Email or Call Us!
7 Year Limited Warranty on Fixture, Driver 8 Years.
