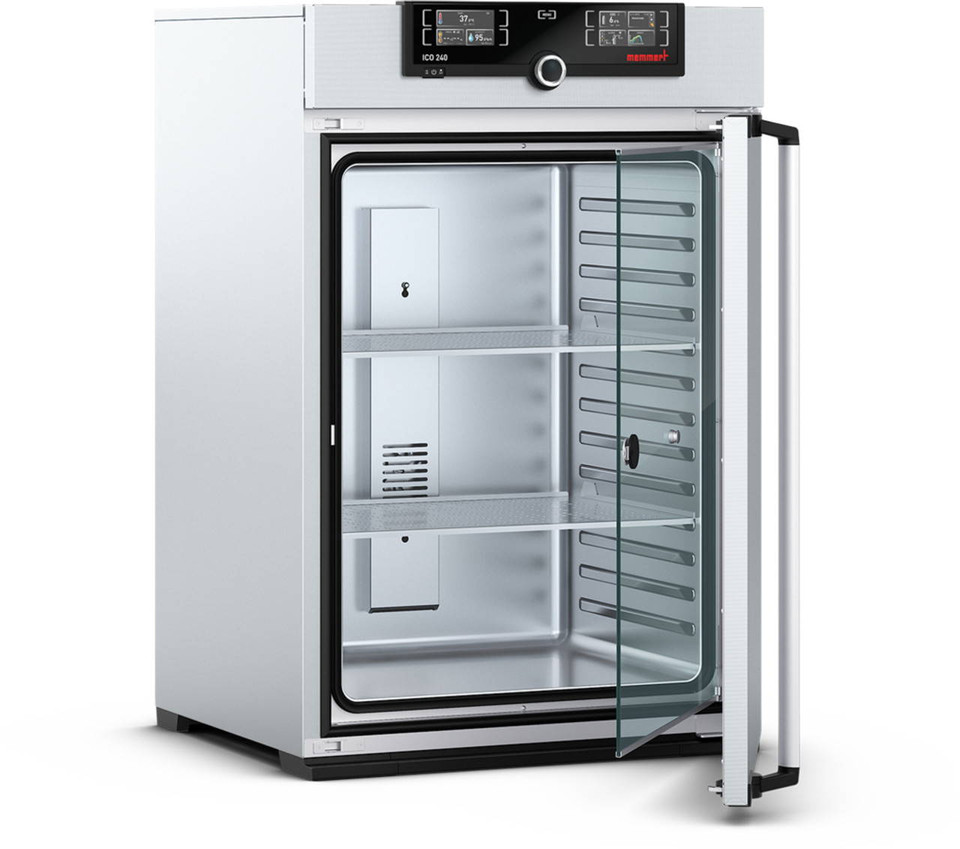

Memmert ICO 240 | USA Lab
The Memmert ICO 240 CO₂ Incubator is designed for precise and reliable incubation of cell cultures, bacteria, and other sensitive samples in laboratory settings. With its cutting-edge technology and robust build, the ICO 240 ensures optimal growth conditions for research, diagnostics, and pharmaceutical applications.
Key Features:
- Accurate Temperature Control: The Peltier heating and cooling system provides precise temperature regulation from +18°C to +50°C, ensuring consistent incubation conditions.
- CO₂ Control: Advanced sensors guarantee accurate CO₂ concentration for stable pH values, critical for cell culture viability.
- Passive Humidity Control: Achieves relative humidity (RH) of up to 93% with the inclusion of a water dish, ideal for maintaining a high-humidity environment.
- Safety First: Features an automatic diagnostics system and visual/audible alarms to ensure sample integrity and operator safety.
- User-Friendly Operation: Equipped with a modern touchscreen control panel and USB/Ethernet connectivity for seamless data logging and remote monitoring.
Applications:
The ICO 240 is perfect for laboratories conducting:
- Cell culture and tissue engineering
- Microbiology and bacteriology
- Pharmaceutical and clinical research
- Food safety testing
Compact yet powerful, the Memmert ICO 240 is a dependable incubator that meets the demands of professional laboratories while delivering unmatched precision and reliability.
Memmert ICO 240 and ICO 240 K7 Comparison
The Memmert ICO 240 and ICO 240 K7 are both CO₂ incubators designed for precise control of environmental conditions in laboratory settings. The primary difference between the two models lies in their humidity control capabilities:
ICO 240:
This standard model includes a Peltier element that limits the relative humidity (RH) in the chamber to approximately 93% when a water dish is inserted. This passive humidity control is suitable for applications where maintaining a high humidity level is sufficient.
ICO 240 K7:
This model is equipped with the optional K7 active humidity control system, allowing precise regulation of humidity levels within a range of 40% to 97% RH, or the option to turn off humidity control entirely. This feature is beneficial for applications requiring specific humidity settings or rapid recovery times after door openings.
Summary:
If your work necessitates precise and adjustable humidity control, the ICO 240 K7 with the active humidity control option would be the more suitable choice. For applications where high humidity without precise control suffices, the standard ICO 240 model should meet your needs.
|
Specifcations |
Technical Data |
|
Volume approx. |
8.4 Cu Ft (241 L) |
|
Temperature range |
+5°C above ambient temperature to +50°C |
|
Setting temperature range |
+18°C to +50°C |
|
Setting accuracy °C |
0.1°C |
|
Temperature fluctuations with time at +37°C |
±0.1°C |
|
Temperature variation in chamber at +37°C |
±0.3°C |
|
Humidity control |
Humidity limitation thanks to a Peltier element; when water dish is full and inserted, the Peltier element limits the value of relative humidity in the interior to 93% rh ±2.5% |
|
Humidity setting range active humidity control (with option K7) |
40% to 90% and rh-Off |
|
Humidity setting accuracy |
0.50% |
|
CO2/O2 Control |
Digital electronic CO2 control with dual beam NDIR system, with auto-diagnostic system and acoustic fault indication, barometric pressure compensation |
|
CO2 Range |
0% to 20% |
|
CO2 variation in time |
±0.2% |
|
CO2 setting accuracy |
0.10% |
|
O2 range |
1% to 20% |
|
O2 setting accuracy |
0.10% |
|
Contoller |
TwinDISPLAY: dual TFT color touchscreens, manage data, save log files, monitor up to 32 devices online, automatic alarms emailed, archive of ramps and program sequences, real-time view of program sequences, Loops can be inserted within a temperature contol program at any place, download and manage programs via Ethernet or USB |
|
Interfaces |
Ethernet and USB |
|
Housing |
Textured stainless steel, rear zinc-plated steel, TFT color display with touchscreen, heated inner glass door, fully insulated stainless steel door |
|
Interior |
Stainless steel, material 1.4301 (ASTM 304), deep-drawn, seamlessly welded |
|
Automatic sterilisation |
Humidity and CO2 sensor sterilised inside the incubator |
|
Chamber Dimensions (W x H x D) |
22 x 18.9 x 27.6 inches (560 x 700 x 400 mm |
|
Maximum number of grids/shelves |
12 (2 included) |
|
Maximum loading per grid/shelf |
33.1 lbs (15 kg) |
|
Maximum loading of chamber |
308 lbs (140 kg) |
|
Exterior Dimensions (W x H x D) |
29.9 x 46.5 x 27.2 inches (759 x 1180 x 691 mm) |
|
Standard works calibration certificate (measuring point chamber center) |
37°C, 5% CO2 |
|
Sterilisation program |
60 minutes at 180°C |
|
Electrical |
115 V, 50/60 Hz, 1,100 Watts (230 V available) |
|
Net weight approx. |
242.5 lbs (110 kg) |
|
Gross weight (packed in carton) approx. |
319.7 lbs (145 kg) |
|
Shipping Dimensions (W x H x D) |
33.1 x 53.5 x 35.4 inches (840 x 1360 x 900 mm) |
