TRI-CLAMP FITTING SIZES
|
Tube Outer Diameter |
Flange Outer Diameter |
Tube Inner Diameter |
|
1.5" |
1.98" |
1.37" |
|
2" |
2.52" |
1.87" |
|
3" |
3.58" |
2.87" |
|
4" |
4.68" |
3.83" |
|
6" |
6.57" |
5.78" |
|
8" |
8.57" |
7.78" |
|
10" |
10.57" |
9.73" |
|
12" |
12.57" |
11.81" |
New

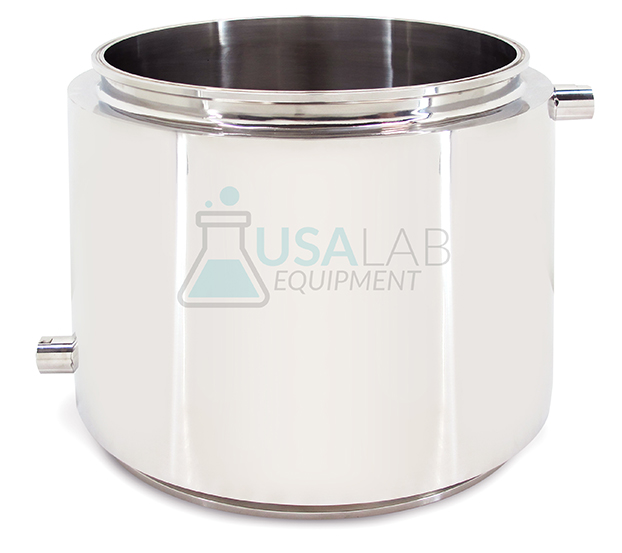

Our sanitary SS304 jacketed spools have attached tri clamp fittings on each end for user convenience. Jacketed spools are used to build units in line without on-site fabrication. The outer jacketed provides insulation while allowing the user to run fluid through the jacket. The versatility of these spools makes them a preferable solution for many consumers.
|
JS-12IN-12NPT SPECIFICATIONS |
|
•Material: 304 Stainless Steel |
|
•Jacket Connections: 2x 1/2" FNPT |
|
• Tri Clamp Connections: 12" TC |
|
•Size: 14" x 14" x 12" |
|
•Weight: 33lbs |
|
•SKU: JS-12IN-12NPT |
This unit comes with a 30 day money-back guarantee.
For Technical Support, Questions, or Other Issues Please Email or Call Us!
Fittings and steel do NOT carry any warranty. Fittings and steel items with a defect or other issue must be identified within 30 days of arrival and USA Lab MUST be contacted. After 30 days, there will be no replacements sent for fittings or steel items with a defect or issue. Cross threading, misuse, improper storage, or improper care of fittings/steel are considered user error and are not covered under warranty.
