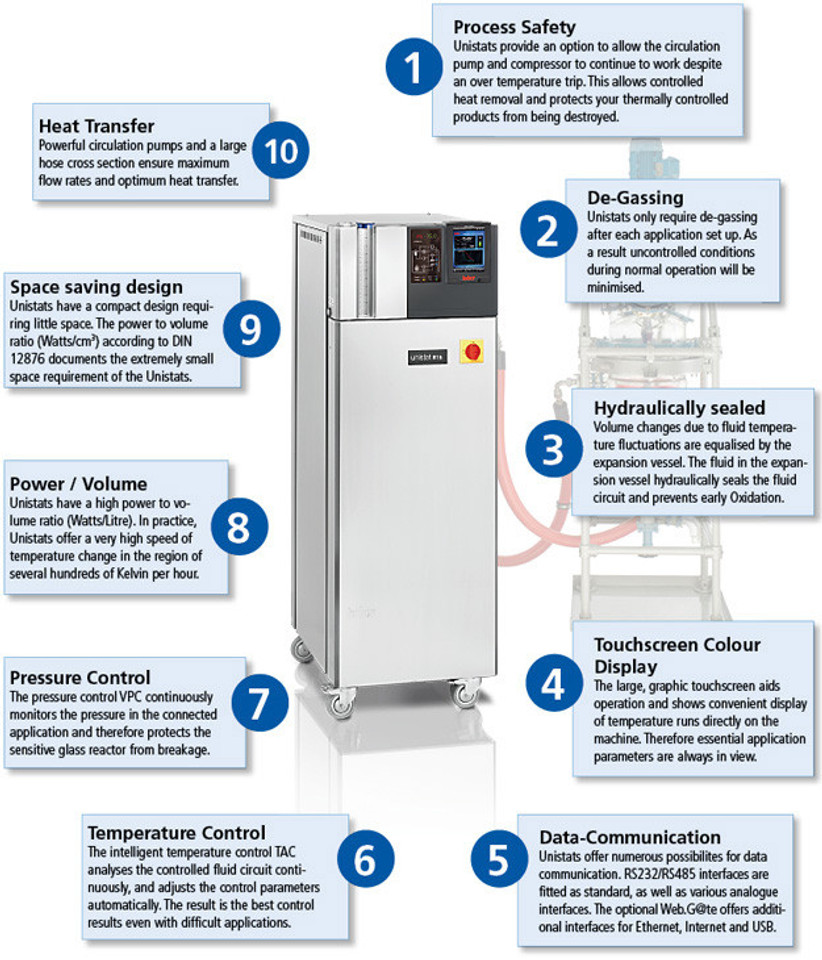

The Unistat range inspires with unique thermodynamic properties and a range of functions to meet the highest demands. Unistat technology guarantees precise, reproducible temperature control results, the shortest possible heating and cooling times and large temperature ranges without the need for fluid change.
All Unistats are fitted with the innovative Pilot ONE controller with a 5.7“ touchscreen color display and easy menu navigation. All important parameters can be seen at a glance and temperature curves are displayed in graphic real time.
Unistats are equipped with the most up-to-date pump technology for optimal heat transfer. The pump self regulates to ensure the best possible circulation and flow and delicate glass reactors are protected from breakage by the pumps soft start-up feature. Unistat technology impresses as a result of economic operation with reduced operating costs and efficient energy management.
Because Unistats are hydraulically sealed, the service life of the temperature control fluid is dramatically increased by preventing oil loss through vapours and oxidation, further saving resources. Unistats are fitted with extensive safety equipment and are therefore suitable for unsupervised continuous operation. Relevant operating conditions are constantly monitored and the system is switched off if necessary or with the process safety feature the emergency cooling circuit is activated.
The new multi-touch controller Pilot ONE offers a brilliant 5.7" touchscreen with graphic functions and a comfortable navigation menu. All important operating parameters and temperature values are neatly displayed on the touchscreen. Thanks to the new favorite menu, the one-click operation and the integrated technical glossary the operation is very easy, just like on a smartphone. Integrated USB and Ethernet ports allows connection to a PC or network, e.g. for remote control or data transmission.
FEATURES:
Precise and reproducible temperature control results
Fastest heating and cooling rates
Wide temperature ranges with no fluid change
Pilot ONE controller with 5.7“ touchscreen and comfortable menu navigation
Adaptive temperature control, self-optimising
Efficient circulation pump
2 x USB (Host and Device), Ethernet and RS232 interfaces
Efficient operation saves working time and operating costs
Proven functionality for the process industry
E-grade "Professional" include
Unistat 510W 208V Data sheet
Click Here 3 Year Warranty Register
Please observe the notes on installation and/or the space requirements of our products
|
Unistat 520w Specifications |
|
|
General Information & Temperature Controller |
|
|
Temperature range |
-55...250 °C |
|
Temperature stability |
±0.01 °C |
|
Temperature control |
TAC, self-optimizing (True Adaptive Control) |
|
Display resolution |
0.01 °C |
|
Alarm message |
optical, acoustical |
|
Controller |
|
|
Safety class |
III / FL |
|
Protection class |
IP20 |
|
Dimensions (W x D x H) |
540 x 604 x 1569 mm | 21.26 x 23.78 x 61.77 inches |
|
Weight |
-- kg | pounds |
|
Heating / cooling capacity |
|
|
Heating capacity |
6 kW |
|
Cooling capacity |
|
|
Cooling machine |
air-cooled |
|
Refrigerant (ASHRAE, GHS) |
R290 (A3, H220) (0,066 kg) |
|
Circulation pump |
|
|
Pressure pump max. |
79 lpm ; 1.5 bar | 20.87 gpm ; 21.75 psi |
|
Pump connection |
M30x1,5 AG male |
|
Permissible viscosity |
50 mm²/s |
|
Pump speed adjustable |
Yes |
|
Connections |
|
|
Pt100 connection |
Pt100 |
|
Analogue input |
via optional Com.G@te |
|
Analogue output |
via optional Com.G@te |
|
Digital interface |
RS232, Ethernet, USB Device, USB Host |
|
Operating data |
|
|
Permissible ambient temp. |
5...40 °C |
|
Noise level |
61 dB(A) |
|
Filling volume min. |
4.9 Liters | 1.29 gal |
|
Volume of expansion |
16 Liters | 4.23 gal |
|
Cooling water connection |
G1/2 AG |
|
Cooling water differential pressure min. |
1 bar | 14.5 psi |
|
Cooling water pressure max. |
6 bar | 87 psi |
|
Power supply |
208V 3~ 60Hz |
