*Notice: This item is subject to drop ship and may have a extended lead time*

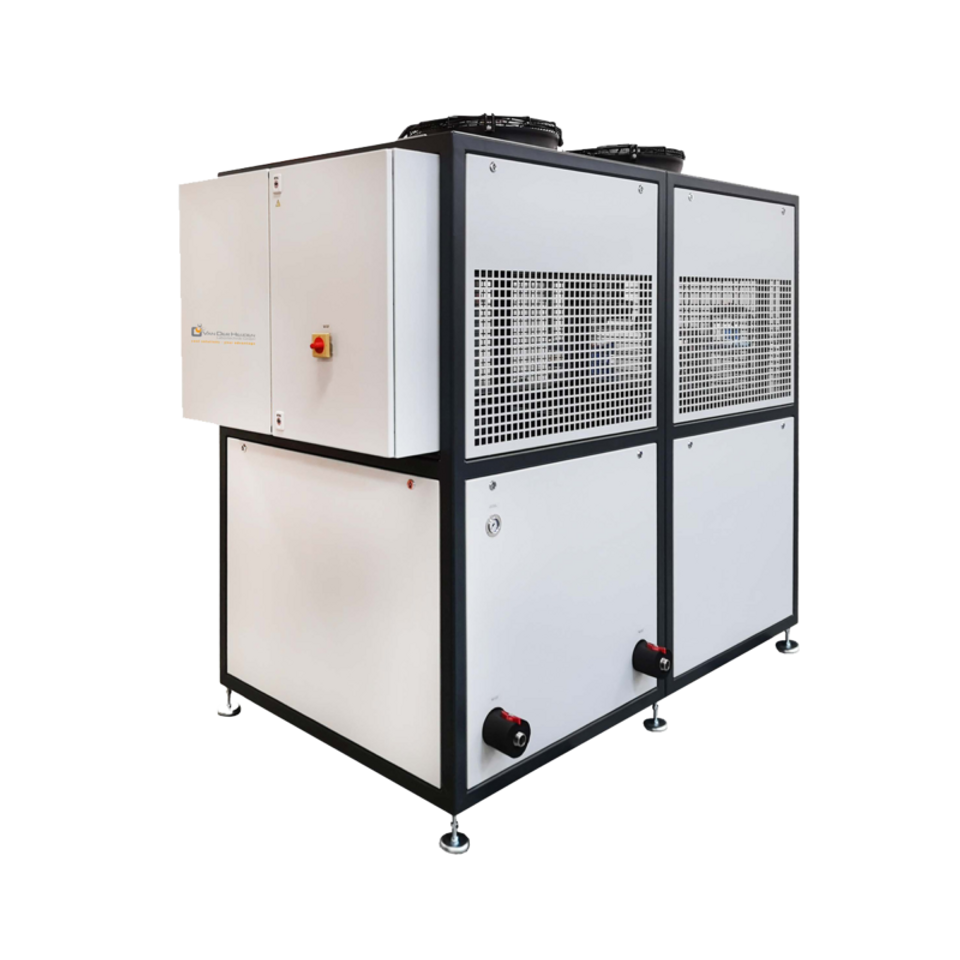

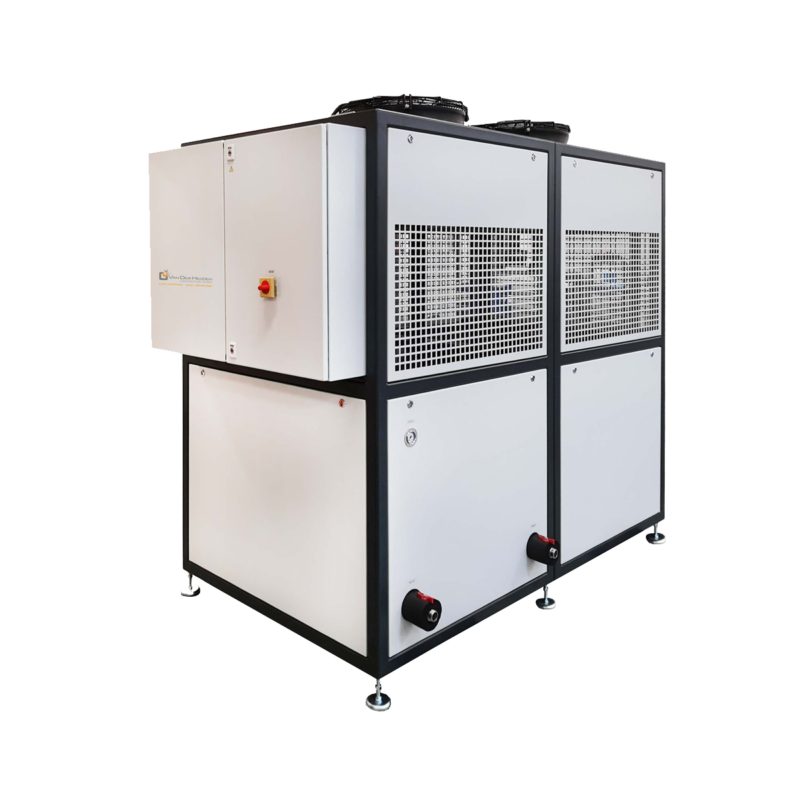

The LCS 80 is a special industrial chiller for use by researchers, laboratory technicians and scientists. It has an air-cooled chiller unit and a circulation pump. This chiller cannot fail to impress with its cooling output of 8 kW at – 40°C medium flow temperature. The housing has an open, atmospheric tank and a copper-brazed, stainless steel (V4A) evaporator. A digital filling level indicator warns if the medium level is too low. The condenser is suitable for outdoor operation and its output is optimised by the integral high-performance fan motor and microchannel technology. The chiller unit has a powerful feed pump with integral overtemperature protection. The manual bypass valve inside the chiller sets the flow.
The capacitive touch control with OLED display and multicoloured status indicator instantly show the current operating status and can be used as a remote control. Eight different system languages are available: DE, EN, ES, FR, IT, PT, RU, TR. The feed pump and chiller unit can be controlled separately, thus providing a convenient way of setting the required performance parameters. Operation of the system can be analysed over an integrated RS232 interface on a PC or notebook computer.
|
LCS 80 Specifications |
|
|
General Information & Temperature Controller |
|
|
Temperature range |
– 45°C to 15°C |
|
Temperature stability |
±0.01 °C |
|
Dimensions (W x D x H) |
2015 x 1100 x 2000 mm | 80 x 44 x 79 inches |
|
Weight |
880 kg | 1940 pound |
|
Heating / cooling capacity |
|
|
Cooling capacity |
– 40°C: 8 kW |
|
Cooling machine |
air-cooled |
|
Refrigerant (ASHRAE, GHS) |
R1270 (A3, H220) (0,15 kg) |
|
Circulation pump |
|
|
Pump capacity |
1500 l/h at 3.3 bar |
|
Feed pressure max |
4.2 bar |
|
Tank capacity: |
100 L |
|
|
|
|
Connections |
|
|
Connection |
1″ ball valve |
|
Operating data |
|
|
Power consumption |
10.2 kW max |
|
Sound pressure leve |
77 dB (A) |
|
Voltage |
400 V/50 HZ/3 PH/N/PE |
|
Refrigerant |
R449a |
