*Notice: This item is subject to drop ship and may have a extended lead time*

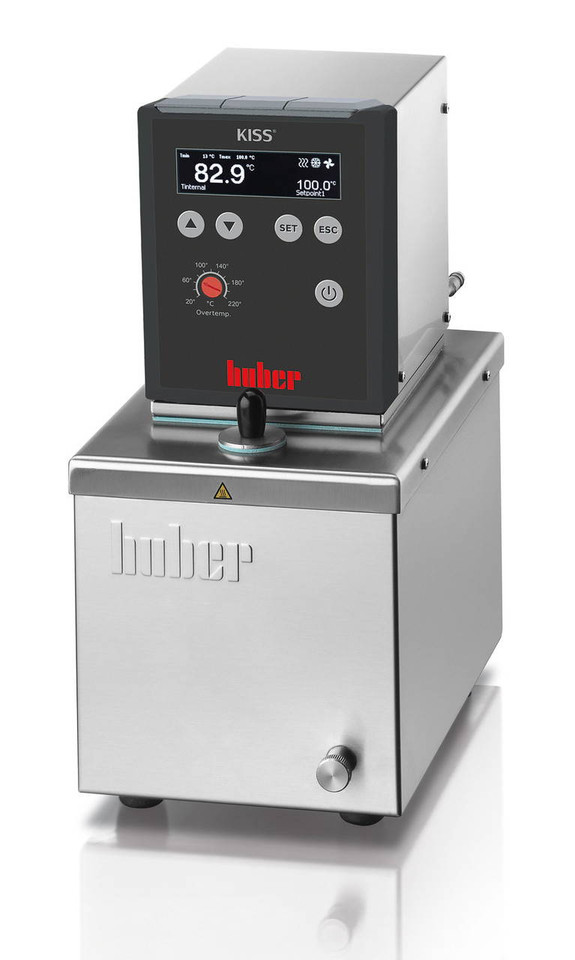

Heating bath circulation thermostats with a stainless steel bath allow the temperature control of internal and external thermoregulation tasks. Items can be directly thermoregulated by placing them in a thermostat bath and the control of externally connected applications is also possible. The units are suitable for a number of typical temperature control tasks such as sample temperature control, materials testing, quality control, etc. The devices are fitted with overtemperature and low level protection in line with Safty Class III/FL according to DIN 12876. A powerful pressure/suction pump ensures optimal circulation and temperature homogeneity in the thermostat bath and also allows temperature control of externally connected application

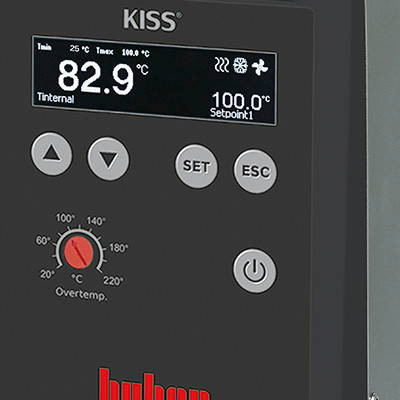

The new KISS controller combines state-of-the-art technology with simple operation and stylish design. KISS models are suitable for routine tasks in research and industry and are convincing as practice oriented basic equipment. Option: Pt100 sensor connection #10519 to display (not control) e.g. of the process temperature (only available factory fitted, additional charge)
|
KISS 202C Specifications |
|
|
General information & temperature controller |
|
|
Temperature range |
(-30) 45...200 °C |
|
Temperature stability |
±0.05 °C |
|
Temperature display |
OLED Display |
|
Alarm message |
optical, acoustical |
|
Controller |
|
|
Safety class |
III / FL |
|
Protection class |
IP20 |
|
Dimensions (W x D x H) |
178 x 337 x 355 mm | 7.01 x 13.27 x 13.98 inches |
|
Weight |
9 kg | 19.84 pounds |
|
Heating / cooling capacity |
|
|
Heating capacity |
1 - 1,5 kW |
|
Circulation pump |
|
|
Pressure pump max. |
14 lpm ; 0.25 bar | 3.7 gpm ; 3.62 psi |
|
Suction pump max. |
10.5 lpm ; 0.17 bar | 2.77 gpm ; 2.47 psi |
|
Pump connection |
M16x1 AG male |
|
Connections |
|
|
Digital interface |
USB (Device), RS232 interfaces |
|
Operating data |
|
|
Permissible ambient temp. |
5...40 °C |
|
Bath opening W x D / BD |
105 x 90 / 150 mm | 4.13 x 3.54 / 5.91 inches |
|
Bath volume |
5 Liters | 1.32 gal |
|
Power supply |
100-115V 1~ 50/60Hz |
|
Current max. |
15 A |
|
Fusing |
15 A |
