*Notice: This item is subject to drop ship and may have a extended lead time*

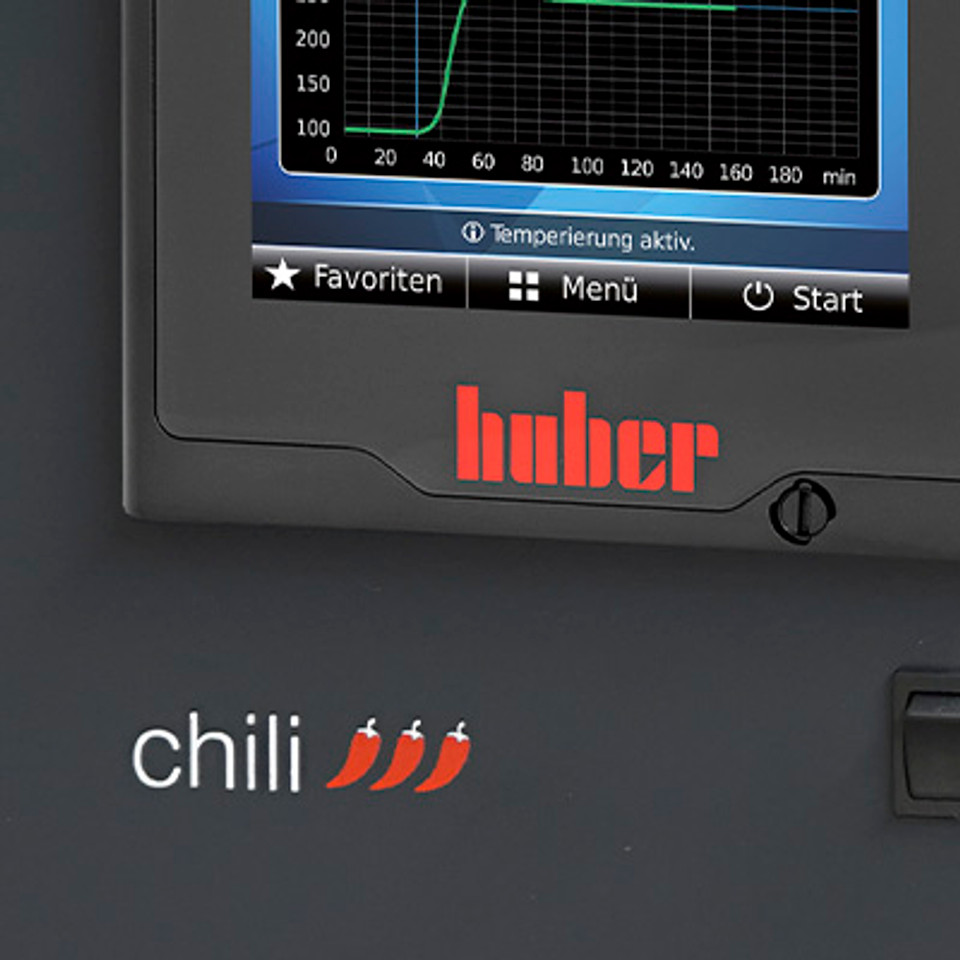

Chili is the latest heating circulator for closed systems in the Unistat product family. The compact heating thermostat is equipped with the E-grade Professional as standard and convinces with excellent thermodynamic properties and a range of functions for the highest demands. Chili guarantees highly accurate, reproducible temperature control results with short heat-up times and wide temperature ranges without changing fluids. Like all Unistats, the Chili is equipped with the innovative Pilot ONE controller with 5.7" touch screen and convenient menu navigation
The economically Unistat technology provides minimized operating costs and efficient energy management. A further advantage is the extended life-time of the thermofluid. The hydraulically sealed systems prevent the formation of oil vapours and oxidation. Chili is the smallest heating thermostat in the Huber product range that is approved for use with Marlotherm as a thermofluid. For controlled cooling, an external cooling coil (unregulated) is available as an optional accessory. Due to ist technical properties and low purchase price, Chili is ideally suited for distillation tasks in botanical extraction, for example.

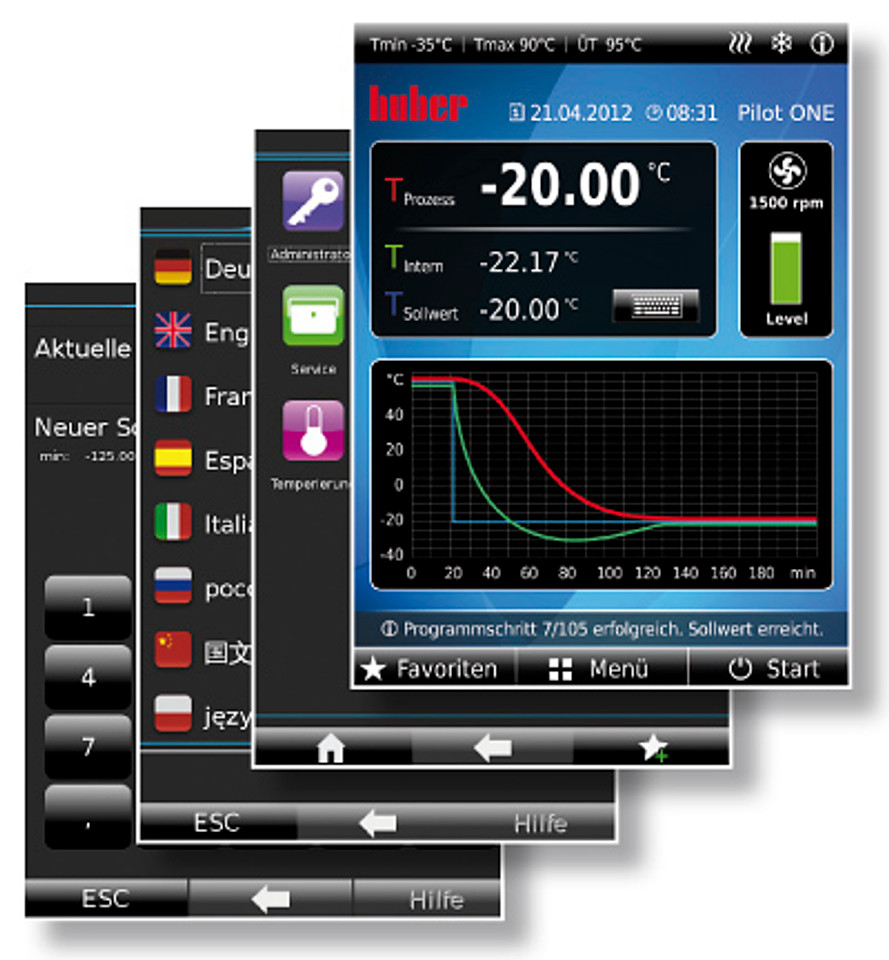

The new multi-touch controller Pilot ONE offers a brilliant 5.7" touchscreen with graphic functions and a comfortable navigation menu. All important operating parameters and temperature values are neatly displayed on the touchscreen. Thanks to the new favourites menu, the one-click operation and the integrated technical glossary the operation is very easy, just like on a smartphone. Integrated USB and Ethernet ports allows connection to a PC or network, e.g. for remote control or data transmission. The E-grade Explore turns a Unistat into a development tool for process and chemical engineering.
|
Specifications |
|
|
General Information & Temperature Controller |
Chili 200-240V |
|
Temperature range |
65...300 °C |
|
Temperature stability |
±0.02 °C |
|
Temperature control |
TAC, self-optimizing (True Adaptive Control) |
|
Display resolution |
0.01 °C |
|
Alarm message |
optical, acoustical |
|
Controller |
Pilot ONE |
|
Safety class |
III / FL |
|
Protection class |
IP20 |
|
Dimensions (W x D x H) |
240 x 427 x 393 mm | 9.45 x 16.81 x 15.47 inches |
|
Weight |
23 kg | 50.72 pounds |
|
Heating / cooling capacity |
|
|
Heating capacity |
2,7 - 3 kW |
|
Circulation pump |
|
|
Pressure pump max. |
45 lpm ; 0.9 bar | 11.89 gpm ; 13.05 psi |
|
Pump connection |
M24x1,5 AG male |
|
Permissible viscosity |
50 mm²/s |
|
Pump speed adjustable |
Yes |
|
Connections |
|
|
Pt100 connection |
Pt100 |
|
Control input |
0 |
|
Control output (potential-free) |
0 |
|
Analogue input |
via optional Com.G@te |
|
Analogue output |
via optional Com.G@te |
|
Digital interface |
RS232, Ethernet, USB Device, USB Host |
|
Operating data |
|
|
Permissible ambient temp. |
5...40 °C |
|
Filling volume min. |
1.45 Liters | 0.38 gal |
|
Volume of expansion |
2 Liters | 0.53 gal |
|
Power supply |
200-240V 1~/2~ 50/60Hz |
|
Current max. |
15,5 A |
|
Fusing |
16 A |
