** THIS ITEM IS DROP SHIPPED FROM OUR SUPPLIER, PLEASE CALL FOR LEAD TIME**
FYRA gives you the essence of versatility with a touchscreen or dial interface. This FYRA bundle delivers vacuum system and roughing pump monitoring and control from 10 mT to 6 Torr. Ideal for for research and distillation systems.
FYRA distillation vacuum controller – DigiVac’s Latest Innovation
Vacuum Science Simplified
We know vacuum applications can get complicated. FYRA was created to deliver scientific measurement and vacuum control simply with easy integration into almost any system in the market.

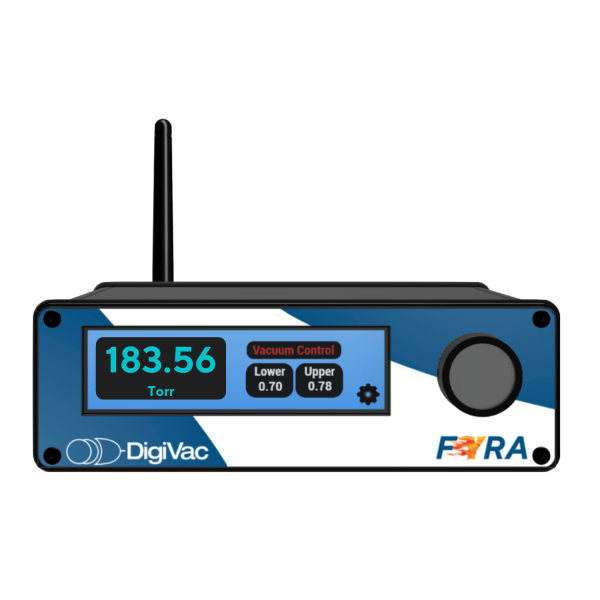

The DigiVac FYRA distillation vacuum controller is a digital vacuum instrument that is highly configurable and capable of driving multiple types of sensors (piezo, thermal, active, passive, and capacitance manometers). It employs a 3.9” capacitive touch screen and includes a tactile knob to easily interact with the vacuum gauge functions. FYRA can intuitively display and manage multiple sensors and control points. Includes a USB output for vacuum data documentation and file saving to your laptop.

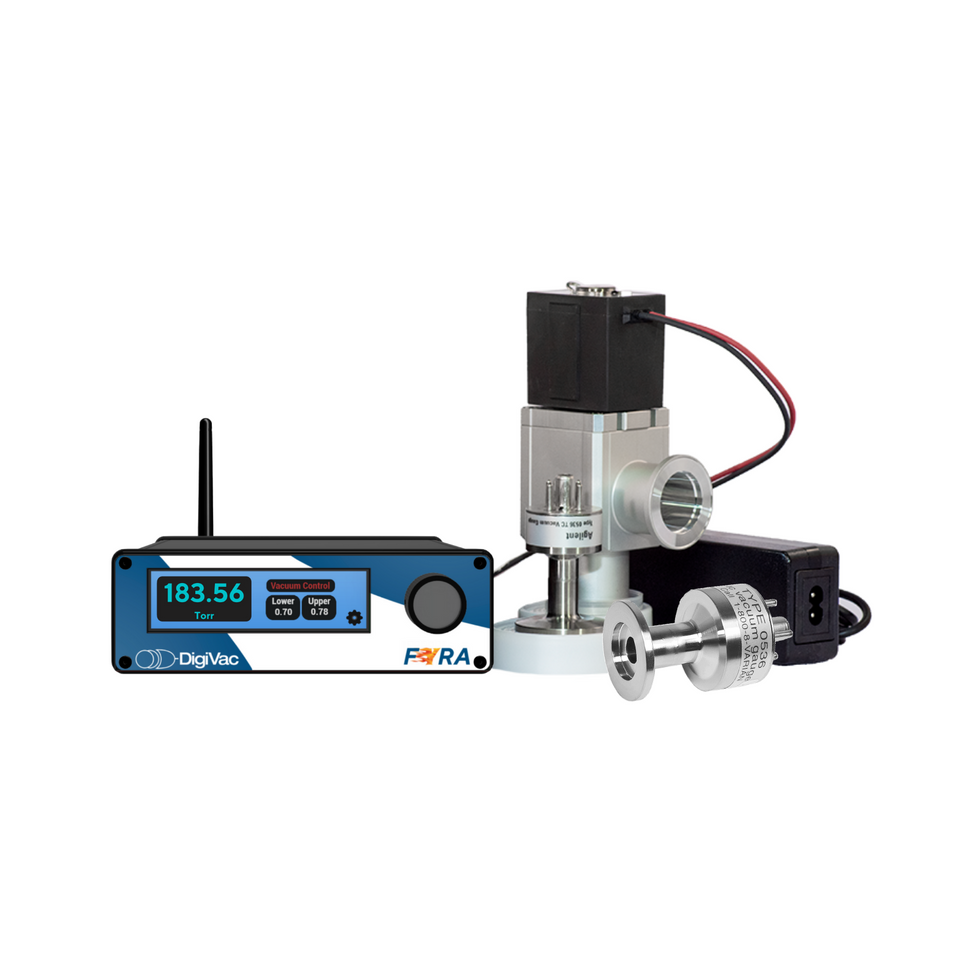

This FYRA vacuum controller bundle includes a high throughput bellows valve for throttle control as well as 2 thermocouple sensors to monitor the vacuum pressure at the roughing pump as well as the system. Alternatively, this set-up can be used to monitor both sides of a 2 Head Distillation set-up and you can use a Bullseye Precision Gauge to monitor the pressure at the roughing pump.
Package Includes:
- FYRA Vacuum Controller
- (2) Agilent 536 KF25 Thermocouple Sensors and driver cards
- (1) Bellows-type Throttle Valve and driver card
- Options: WiFi
- Optional: Installation Kit (Aluminum Wing Clamps + Stainless Steel/Viton Centering Rings)
Bellows KF25 Valve: works by throttling the pressure between the vacuum pump and the process to control the vacuum level or to isolate the vacuum pump | Enables vacuum pressure control a solenoid valve for throttling pump suction
- Control Range: 10 millitorr to 6 Torr
- Measurement Range: 1 millitorr to 760 Torr
- Range with accuracy: 10 millitorr to 6 Torr
- Benefits of Bellows Throttle Control: With the KF25 1″ orifice you get better and faster throughput | ideal for processing high volumes | Extends life of pump by enabling pump to run closer to it’s base pressure
Optional WiFi Connection
View pressure in real time through vacuumnetwork.org, and log data through the USB interface.
Choose Digivac for your Distillation needs.
Example of a FYRA Application
- Distillation Vacuum Controller Applications— R&D: Vacuum Ovens, Vacuum Furnaces, Vacuum Bagging or Composites
- Botanical Processing: Rotary Evaporation, Short Path Distillation (1 Head Kit), Extractions
- Use Case Example— To maintain specific pressure levels in a vacuum oven at about 2 Torr to avoid removing target terpenes and only removing water
Short Path Distillation Summary
Short path distillation is a process that occurs after extraction. It is a type of botanical processing, generally utilized for the molecular separation of botanical fluids to achieve high potency. “Short path” refers to the short distance the oil travels, relative to the notoriously large industrial distillation units most people know. Wiped film distillation is a type of short path distillation.
Read our Distillation Application Note
Vacuum for Short Path Distillation
One of the primary purposes of using vacuum in distillations is to lower the temperature required to achieve a boiling point. The target product in a distillation could either be the remaining product, the distilled product, or a purified product. The vacuum associated with a distillation depends on the product to be distilled. Volatile substances are likely to undergo vacuum distillations above 1 Torr. Composite distillations typically require precise pressure control in the region above 1 Torr.
Downloads
|
Technical Specifications |
|
|
Units |
Torr, mbar, kPa, microns, millitorr, mmHg, Hectopascal |
|
Control Range |
1E-4 – 1000 Torr |
|
Dimensions |
6.5″x6.5″x2.5″ |
|

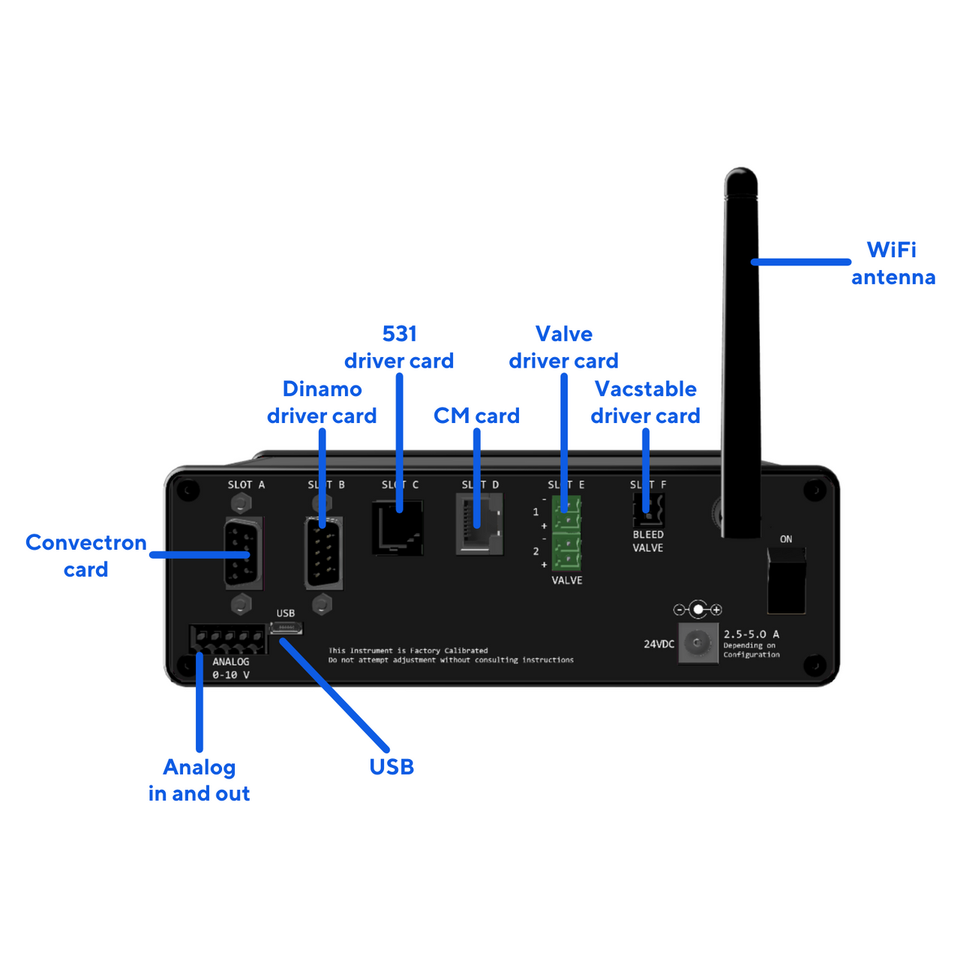

Telemetry Options |
USB, WiFi, 0-10 volts DC, Analog out, 0-10 volts DC Analog in |
|
Sensor Support |
MKS Convectron: 275071 (1/8″ NPT), 275203 (KF16); DigiVac: SEN-VGT500, SEN-775i, Quantum (SEN-DPP, SEN-DCP, SEN-DPCP); Pfeiffer: PKR251, IKR251; Agilent: FRG700, PCG-750, PCG700, 531, 536, 531 equivalent, or PVG 500; Setra: 730 capacitance manometers; Inficon: PSG500, PSG550, Porter, SKY, Stripe, MAG, MPG & MPG400 |
|
Valve Support |
Dinamo, VacStable (Bleed), Solenoid-type Bellows and Plunger, 24V valves that are less than 24 Watts |
For Technical Support, Questions, or Other Issues Please Email or Call Us!
Every gauge that leaves DigiVac is tested under actual vacuum and calibrated against a NIST standard. We warranty all gauges for workmanship and function for 1 year.* Each vacuum instrument has a serial number, which allows us to track the age of the gauge. Any gauge will be repaired and returned free of charge for any defects in workmanship or function, FOB Morganville, NJ.
Any gauge that becomes damaged (for example: tube contaminated, flashback or physical damaged) may be returned to DigiVac for repair at a time and materials rate. Please contact Digivac with a request for Return and an RMA number will be issued. A decontamination form will also need to be filled out.
Note: Sensors (also known as tubes or probes) are not covered under this manufactures warranty. These are classified as consumables.
Customers are responsible for handling shipping charges to and from our facility in New Jersey.
