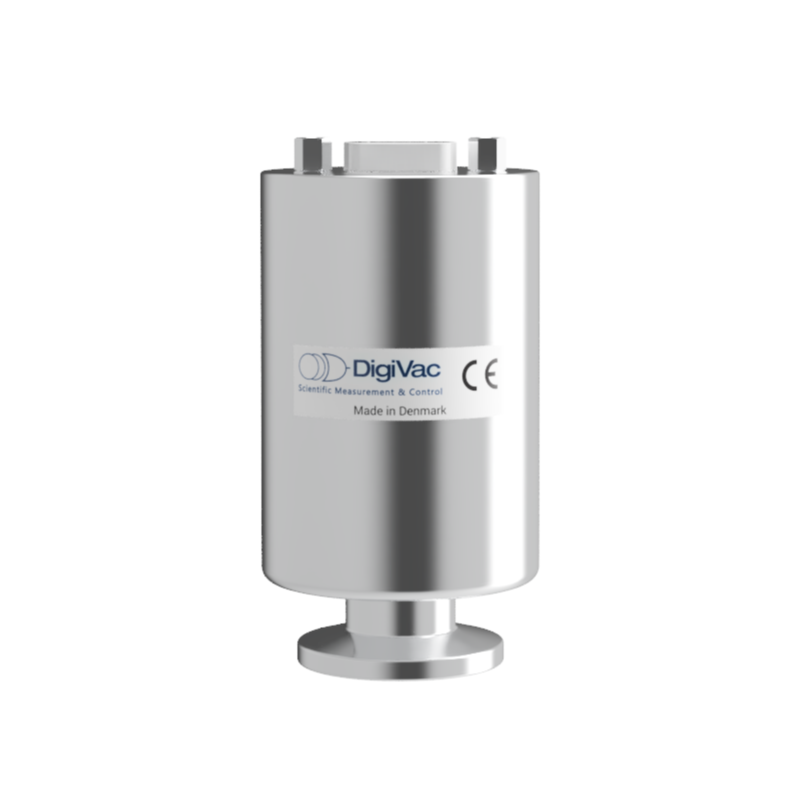

DigiVac DCP Quantum | DuoSENS Capacitive Piezo Vacuum Sensor 0.01 to 1000 Torr, Gas Independent




$1,200.00
SKU:
DIGI-SEN-DCP-11301111
Measurement and Accuracy Range:
0.01 to 1000 Torr +/- 3%
Supply voltage:
12-30 VDC
Power consumption:
350 mW (max)
Reverse polarity protection:
Yes
Overvoltage protection:
Yes
Internal fuse:
100 mA (Thermal recoverable)

** THIS ITEM IS DROP SHIPPED FROM OUR SUPPLIER, PLEASE CALL FOR LEAD TIME**

The Digivac DCP Quantum: Capacitive Piezo Vacuum Sensor for Highly Accurate Process Control Delivered Simply. 5 decades of gas independent vacuum measurement. Range 0.01  to 1000 Torr (+/- 3%)

DCP Quantum | DuoSENS Capacitive Piezo Vacuum Sensor | Gas Independent

The Digivac DCP Quantum DuoSENS: Capacitive Piezo Vacuum Sensor for Highly Accurate Process Control Delivered Simply. 5 decades of gas independent vacuum measurement 0.01 Torr to 1000 Torr

5 Decades of Gas Independent Vacuum Measurement

  • Gas independent vacuum measurement from 0.01 – 1000 Torr (+/-3%) includes integrated baffle to help avoid particulate
    contaminations
  • Replace multiple capacitance manometers with one
  • Blends capacitance manometer with piezo for the widest direct pressure measurement under $1500
  • Visual multi-color LED to indicate pressure range with bright yellow overpressure indicator to help avoid system damage

The DCP Quantum transducer establishes new standards with an all-in-one measurement solution for a wide selection of vacuum applications.

Visual Pressure Indicator

Multi-color LEDs to indicate pressure range. Includes a bright yellow overpressure indicator to help you avoid system damage. This is very useful when not using a display controller.

Contamination Containment

Integrated baffle helps protect sensor elements from particulate contamination and increase its longevity

Advantages

  • Wide range highly accurate vacuum measurement across 5 decades of vacuum, 1000Torr – 0.01 Torr (+/- 3%)
  • Reliable solid-state relay for process control
  • 0-10V for simple pressure communication to PLC
  • Integrated baffle to protect internal sensor from particulate contamination to help extend the life of
    the sensor
  • LED Color Pressure Indicator
  • Gas independent measurement
  • Automatic zeroing of piezo sensor

Applications

  • PVD coating
  • Plasma sterilization
  • Freeze-drying
  • Load-lock control
  • Furnace heat treatment

Quantum SmartSENS DCP | Wide range vacuum sensor

Why is the Quantum Gauge Series a Quantum Leap for Vacuum Measurement?

The Quantum Gauge Series is a quantum leap in simplicity and range for vacuum gauging. Smart pairings of sensor technologies that deliver what people really need.

All-in-one, highly accurate wide range vacuum measurement at a cost-effective price point.

This DuoSENS capacitive piezo vacuum sensor represents a “quantum” leap in simplicity and usability for processing and distillation applications. Instead of using a rough sensor and a traditional narrow range capacitance manometer, the Quantum DCP DuoSENS allows you to do all that direct pressure measurement in a small environmentally-friendly, low-power package.

Other DigiVac Quantum Gauge Series Options: DPP SmartSENS, DPCP TriSENS

Vacuum Gauge comparison chart

Downloads

Data Sheet

Operation Manual

Digivac DCP Capacitive Piezo Vacuum Sensor

Technical Specifications

Measurement and Accuracy Range

0.01 to 1000 Torr +/- 3%

Supply voltage

12-30 VDC

Power consumption

350 mW (max)

Reverse polarity protection

Yes

Overvoltage protection

Yes

Internal fuse

100 mA (Thermal recoverable)



For Technical Support, Questions, or Other Issues Please Email or Call Us!



Measurement and Accuracy Range:
0.01 to 1000 Torr +/- 3%
Supply voltage:
12-30 VDC
Power consumption:
350 mW (max)
Reverse polarity protection:
Yes
Overvoltage protection:
Yes
Internal fuse:
100 mA (Thermal recoverable)
Warranty Policy

Every gauge that leaves DigiVac is tested under actual vacuum and calibrated against a NIST standard. We warranty all gauges for workmanship and function for 1 year.* Each vacuum instrument has a serial number, which allows us to track the age of the gauge. Any gauge will be repaired and returned free of charge for any defects in workmanship or function, FOB Morganville, NJ.

Any gauge that becomes damaged (for example: tube contaminated, flashback or physical damaged) may be returned to DigiVac for repair at a time and materials rate. Please contact Digivac with a request for Return and an RMA number will be issued. A decontamination form will also need to be filled out.

Note: Sensors (also known as tubes or probes) are not covered under this manufactures warranty. These are classified as consumables.

Customers are responsible for handling shipping charges to and from our facility in New Jersey.
