Monitor display
|
1 |
The current temperature setting value. |
|
2 |
The current measured temperature value. |
|
3 |
The operating cycle shown as current cycle / total set cycles. |
|
4 |
The running steps shown as current step / total configured steps. |
|
5 |
The current running time and the current set time for the current cycle. |
|
6 |
Select to start the cycle function. Select the button again to stop the cycle function. |
|
7 |
Select to start the cool function. Select the button again to stop the cooling function. |
|
8 |
Select to access the main menu. |
Monitor display
Depending on the Mode Set option selected from the main menu, selecting SV (1) displays either the Constant or Program mode temperature settings.

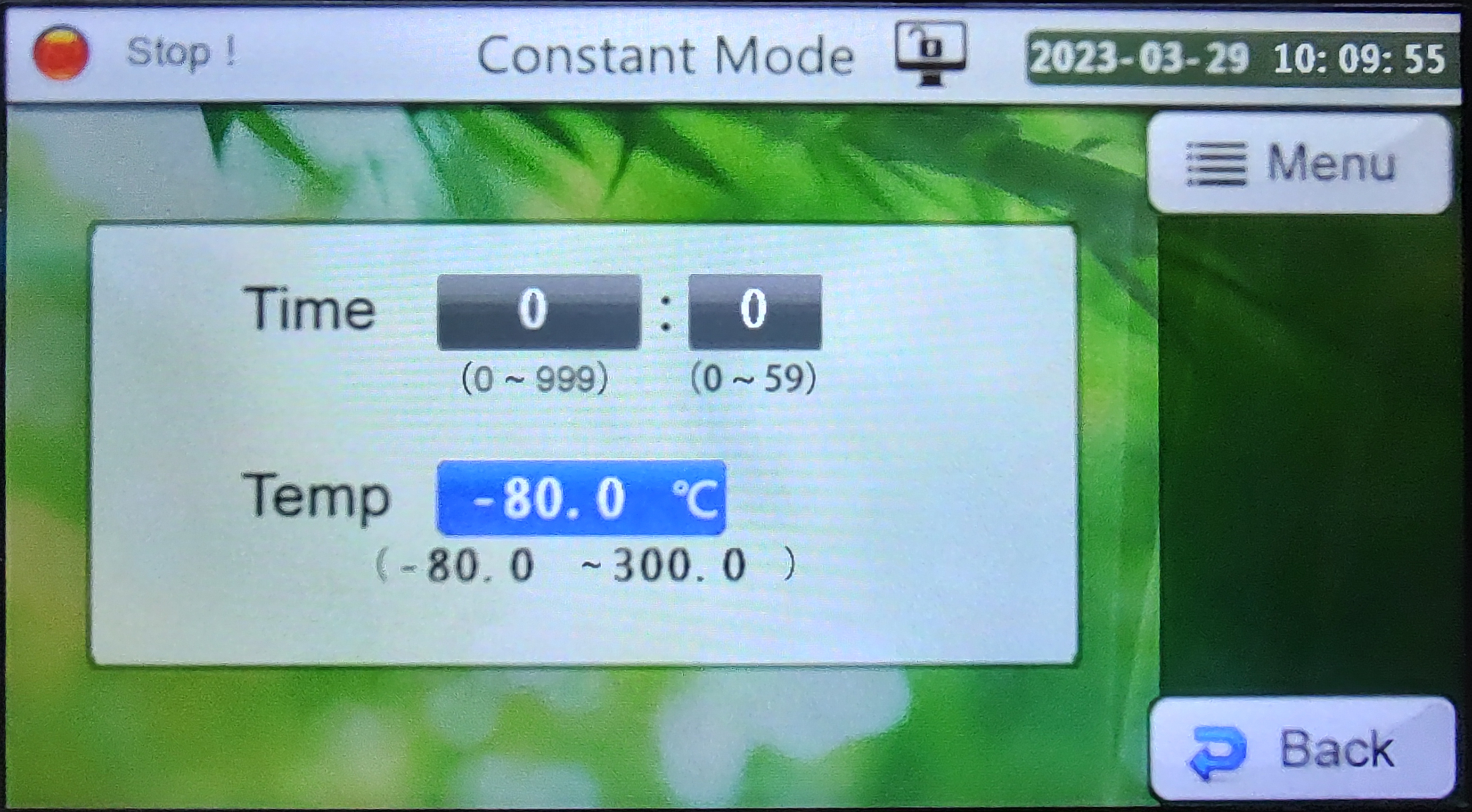

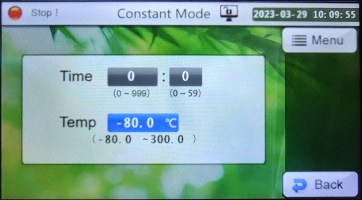

Constant mode temperature settings

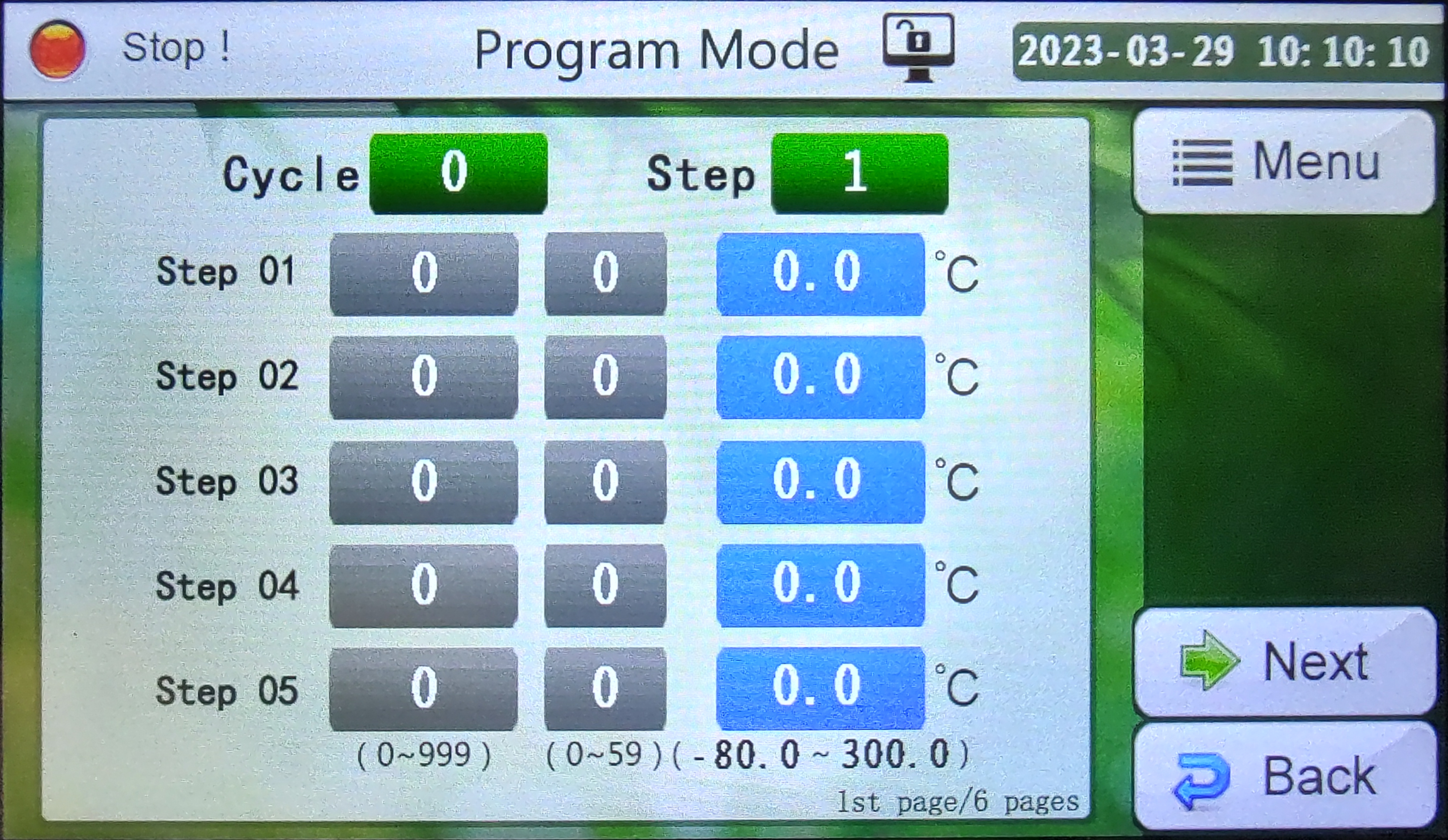

Program mode temperature settings
