** THIS ITEM IS DROP SHIPPED FROM OUR SUPPLIER, PLEASE CALL FOR LEAD TIME**
*30 day warranty*

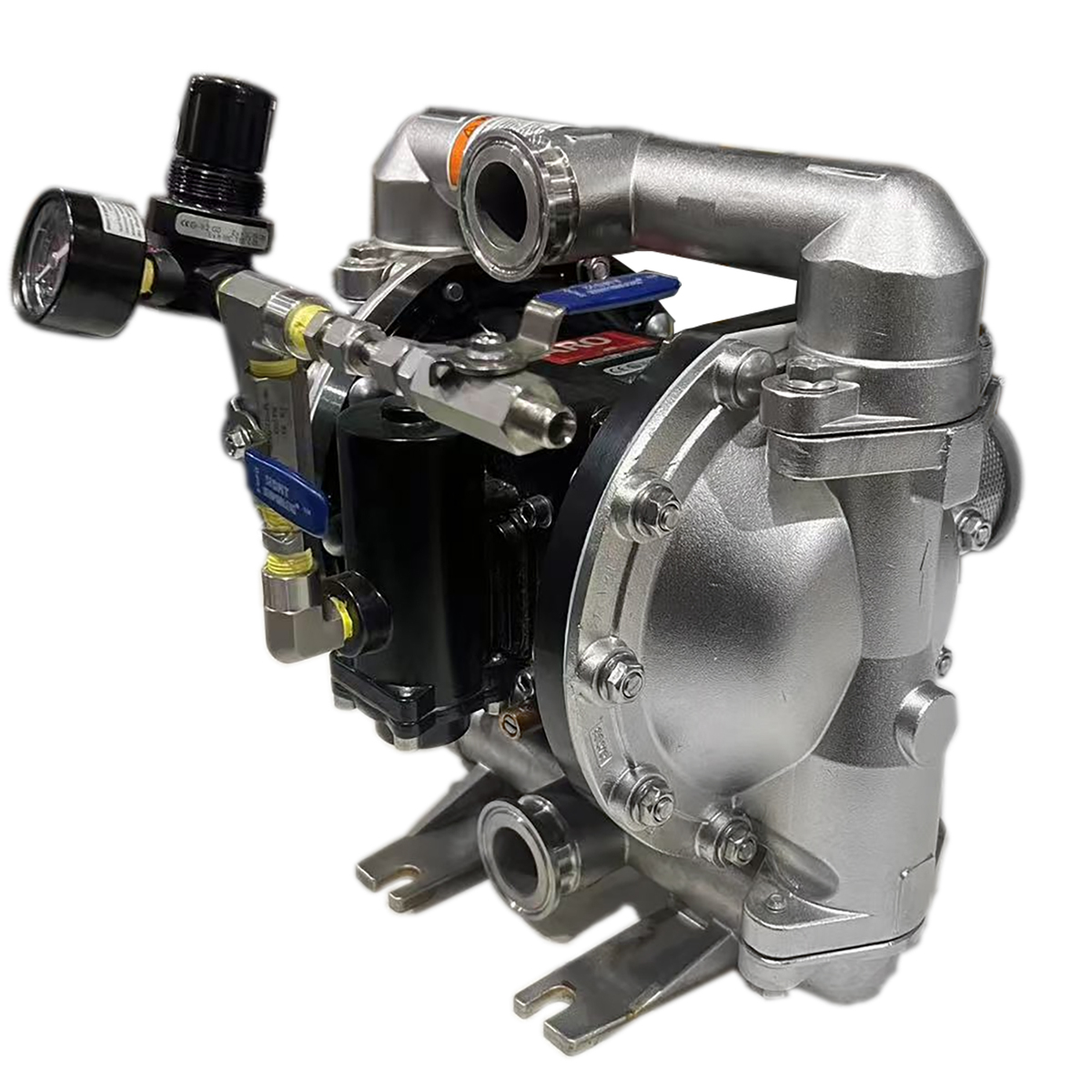

Offering high volume delivery even at low air pressure this ARO® double diaphragm pump features maximized flow rates with minimal pulsation and air consumption. This air-operated fluid pump is a double-diaphragm model that utilizes a pressure differential in the air chambers to alternately create suction and a positive fluid pressure in the fluid chambers, and ball checks to help insure a positive fluid flow. Pump can provide reliable operation with innovative, lube-free differential valve both on the major air valve and Simulshift™ pilot valve for worry-free operation.
*We recommend an Air Compressor with 14 CFM or more.*
|
ARO Specifications |
|
|
Item |
Double Diaphragm Pump |
|
Pump Operation Type |
Air Operated |
|
Max. Flow |
52.2 gpm |
|
Max. Temp - Pumps |
150°F |
|
Housing Material - Pumps |
Polypropylene |
|
Inlet / Outlet Size |
1" |
|
Connection Style |
Tri-clamp |
|
Air Inlet Size |
1/4" FNPT |
|
Diaphragm Material - Pumps |
Santoprene(R) |
|
Agency Compliance |
CE, REACH, RoHS |
|
Valve Type |
Ball |
|
Max. Operating Pressure |
120 psi |
|
Ball Material |
Santoprene(R) |
|
Check Seat Material |
Polypropylene |
|
Max. Dia. Solids |
3/32" |
