** THIS ITEM IS DROP SHIPPED FROM OUR SUPPLIER, PLEASE CALL FOR LEAD TIME**

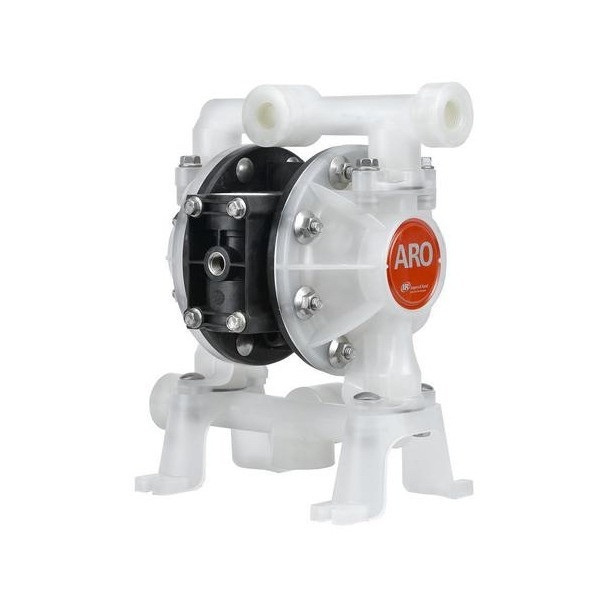

Offering high volume delivery even at low air pressure this ARO® double diaphragm, aro transfer pump features maximized flow rates with minimal pulsation and air consumption. This air-operated, double-diaphragm model utilizes a pressure differential in the air chambers to alternately create suction and a positive fluid pressure in the fluid chambers, and ball checks to help insure a positive fluid flow. This polypropylene pump (and santoprene) can provide reliable operation with innovative, lube-free differential valve both on the major air valve and Simulshift™ pilot valve for worry-free operation.
*We recommend an Air Compressor with 8 CFM or more.*
|
ARO Specifications |
|
|
Item |
Double Diaphragm Pump |
|
Pump Operation Type |
Air Operated |
|
Max. Flow |
14 gpm |
|
Max. Temp - Pumps |
150°F |
|
Housing Material - Pumps |
Polypropylene |
|
Inlet / Outlet Size |
1/2" |
|
Connection Style |
NPT |
|
Air Inlet Size |
1/4" FNPT |
|
Diaphragm Material - Pumps |
Santoprene(R) |
|
Agency Compliance |
CE, REACH, RoHS |
|
Valve Type |
Ball |
|
Max. Operating Pressure |
100 psi |
|
Ball Material |
Santoprene(R) |
|
Check Seat Material |
Polypropylene |
|
Max. Dia. Solids |
3/32" |
|
Manifold Connection |
Multiport |
|
Length |
13.75" |
|
Width |
7.5" |
|
Height |
11.625" |
|
Self-Priming Dry |
10ft |
|
Self-Priming Wet |
15ft |
|
Manufacturer’s Warranty |
5 years |
|
Packing List for Assembled Pump |
|
|
ITEM |
Quantity |
|
ARO 1/2 " Diaphragm Pump |
1 |
|
Superlok Compression 210 Series Ball Valve -65ºC to 21ºC at 1000PSI [1/2"] |
2 |
|
Superlok FNPT 210 Series Ball Valve - 316SS -53ºC to 21ºC at 1000PSI [1/4"] |
2 |
|
FNPT x MNPT x MNPT 3-Way Street Tee [1/4"] |
1 |
|
MNPT to FNPT Street Elbow [1/2" X 1/2"] |
2 |
|
MNPT to FNPT Street Elbow [1/4" X 1/4"] |
1 |
|
MNPT x MNPT Hex Nipple Union [1/4" x 1/4"] |
2 |
|
Superlok O.D. Tube X MNPT Connector - SMC [1/4"] |
1 |
|
Superlok MNPT Connector X O.D. Tube - SMA [ 1/2"] |
2 |
|
Superlok 1/2" HB X 1/2" TUBE STUB |
2 |
|
Superlok Compression Reducing Tee - SRUT [1/2"" X 1/4"] |
1 |
|
Custom Tube Stub - [2"] |
1 |
|
NORGREN Regulator - [1/4"] |
1 |
|
GRAINGER Pressure Gauge |
1 |
|
ColorConnex Connector |
1 |
For Technical Support, Questions, or Other Issues Please Email or Call Us!
Ingersoll Rand® / ARO® currently warrants to the original use purchaser of the Ingersoll Rand / ARO Piston Pumps-manufactured products depicted in this catalog that Ingersoll Rand / AROPiston Pumps will repair or replace free of charge, including return shipping costs within the continental United States of America, any such product which under normal use and service proves defective in material or workmanship, as determined by ARO Inspection, within five (5) years from the date of purchase, provided the claimed defective product or thereof is promptly returned to the Ingersoll Rand / ARO Piston Pumps factory or Customer Service Center with transportation charges prepaid.
If Ingersoll Rand / ARO Piston Pumps inspection discloses no defect in material or workmanship, repair or replacement and return will be made at customary charges.
The foregoing warranty supersedes, voids, and is in lieu of all or any other warranties, express or implied, and no warranty of merchantability or fitness for particular purpose is intended or made. The sole obligation of Ingersoll Rand / ARO Piston Pumps and the original-use purchaser’s sole remedy is as stated above, and in no event shall Ingersoll Rand / ARO Piston Pumps be liable for any special, direct, indirect, incidental, consequential, or other damages or expenses of any nature including, without limitation, loss of profits or production time incurred by the original-use purchaser or any other party.
