Ai UL/CSA Certified 3.2 CF 480ºF Vacuum Oven w/ 3 Shelves, 5 Sided Heat & SST Tubing - 110V, 220V




Brand :

$5,243.00 - $5,891.00
SKU:
AT32-UL
UPC:
41000000
Condition:
New
Brand:
Across International
Model:
AT32-UL
MPN:
AT32-UL

**PLEASE CALL FOR AVALIBILITY, ITEM MAY DROP SHIP**

SST (stainless steel) tubing refers to internal tubing and compression. External tubing not included.

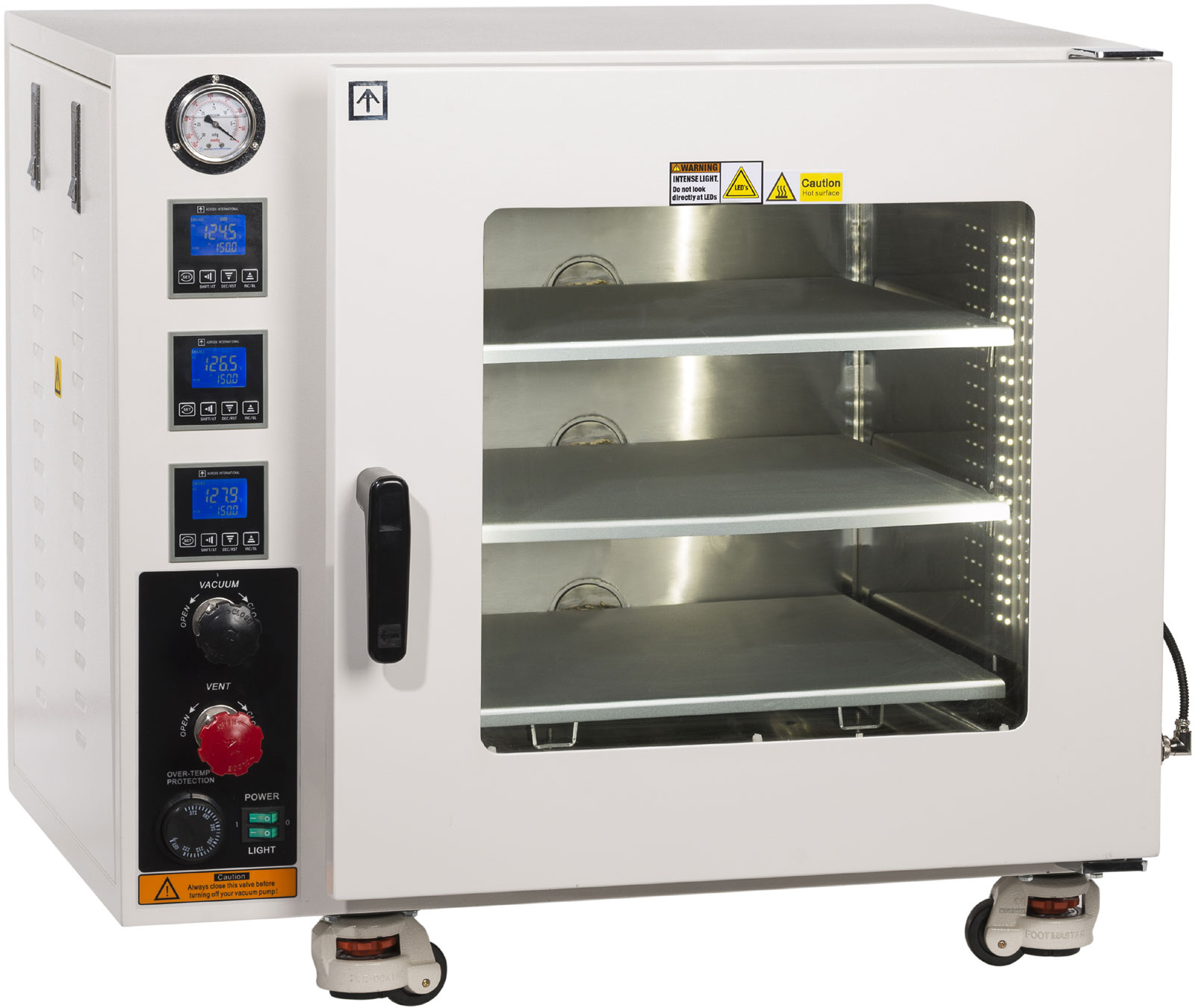

Introducing the new UL certified 3.2. cu ft vacuum oven, this certification is required by many municipalities, and it also provides a higher standard of equipment safety and lifespan. Also come standard is the secondary over-temp protection dial, stainless steel tubing, stainless steel vacuum & vent valve, oil-filled vacuum gauge, and two year warranty. With our new internal shelf heating technology, each shelf in this Across International oven has its own heater, in-shelf temperature sensor and temperature controller, together with great thermal-conductive aluminum and our new low proportional controller technologies, the result is perfect uniformity, accurate temperature, super-fast heating rates, minimum heat loss/exterior temperature and very low power consumption.

Our high vacuum oven goes through a 2-time 24-hour vacuum leak test, and is quality controlled in New Jersey or Nevada before leaving our warehouses.





Features

  • UL certified
  • New KF25 inlet filter keeps your oven clean at all time (included with oven purchase).
  • All stainless steel internal tubing provides higher ultimate vacuum, holds vacuum 10 times longer, and require minimum maintenance.
  • Oil-filled mechanical vacuum gauge provides more accurate reading, longer gauge life and minimizes shipping damage.
  • All stainless steel vacuum and vent valves gives you cleaner connection, more accurate control and long term durability.
  • Three alumimum heating shelves with individual in-shelf temperature sensor, temperature controller and heater.
  • Dual layer observation window with 5/8" tempered safety glass.
  • 4th gen low proportional gain temperature controllers keep your oven temperature accurate
  • Easy-to-clean stainless steel interior for exceptional durability and ease of maintenance.
  • A vacuum environment lowers the boiling point (great for processing heat sensitive materials) and reduces drying time for materials like paste or powder which cannot otherwise be easily dried.
  • Built-in swivel casters with leveling feet.
  • Built-in alarm alerts you when oven has been shut down by safety circuitry due to out of range temperature.
  • For improved temperature tracking, run the auto-tune procedure as outlined in the manual.
  • Best choice for the curing and converting of oil extracts. With deep vacuum level, they can operate at temperatures which allow the degassing/purging process to occur rapidly, thus increase productivity and allow for the production of superior quality products with minimal processing time.
  • All ovens shipped from our New Jersey or Nevada location for quick delivery.
  • 2-year warranty and lifetime US-based parts and service support.
  • Guaranteed US based phone and email assistance within 30 minutes from our engineers.



Manufactured in accordance with

  • UL 61010-1
  • CSA C22.2
  • ISO 9001:2000
  • ISO 12100-1:2003, ISO 12100-2:2003
  • EN1050:1996, EN294:1992, EN60204-1:2006
  • CE

IMPORTANT! NEVER LEAVE YOUR OVEN UNATTENDED WHILE OPERATING. Across International is not responsible for any loss of material inside of the oven.



Vacuum oven specifications

 Electric
 110V +/-10% 60Hz 1-PH 13.6A, 1,500 watts
  or
 220V +/-10% 50/60Hz 1-PH 6.8A, 1,500 watts
 Heater  500 watts x 3, built into 3 aluminum shelves, for the fastest, most energy efficient
 and uniform heating.
 Chamber
 Size: 18 x 18 x 18"
 Material: Stainless steel
 Capacity: 3.2 cubic feet
 Temperature control  Controller: low proportional gain, microcomputer PID controlled with LCD display
 Range: ambient to 250°C (or 480°F)
 Display units: Fahrenheit or Celsius
 Uniformity: +/- 5% of setpoint
 Dwelling timer range: 1 to 9999 minutes
 Warm-up time to 100°F: 35 minutes
 Warm-up time to 480°F: 60 minutes
 Vacuum
 Ultimate vacuum level: better than 500 microns/millitorrs
 (may vary based on your altitude, click here to learn more)
 Mechanical gauge range: 0 to 30 inch mercury

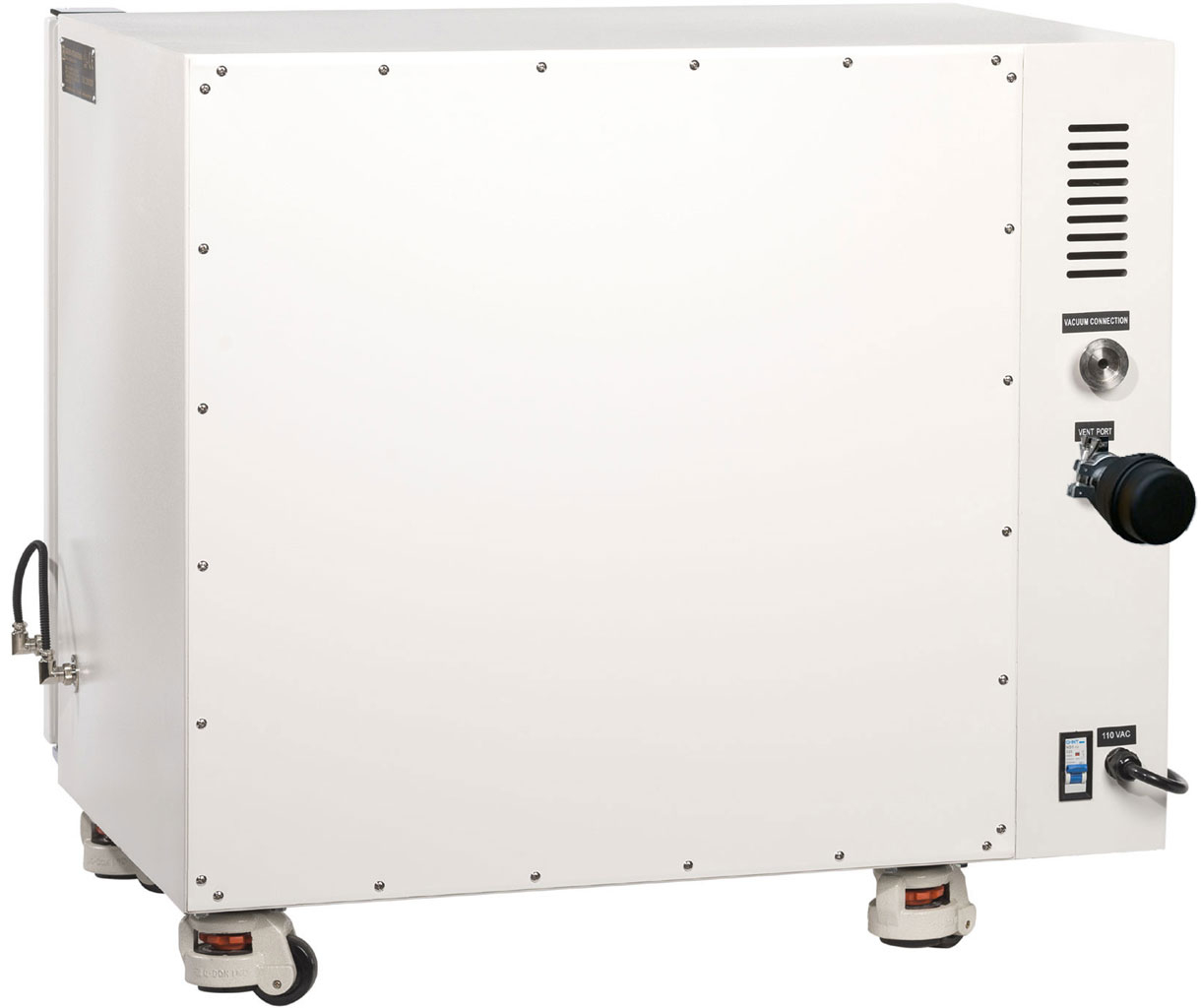

 Vacuum port: KF25 flange x 1
 Vent port: KF25 flange x 1
 Vacuum pump: Sold separately
 Weight  Unit: 260lbs, shipping: 400lbs
 Dimensions (WxDxH)  Unit: 30.5 x 24 x 29"
 Shipping: 36 x 33 x 35"
 Shelves

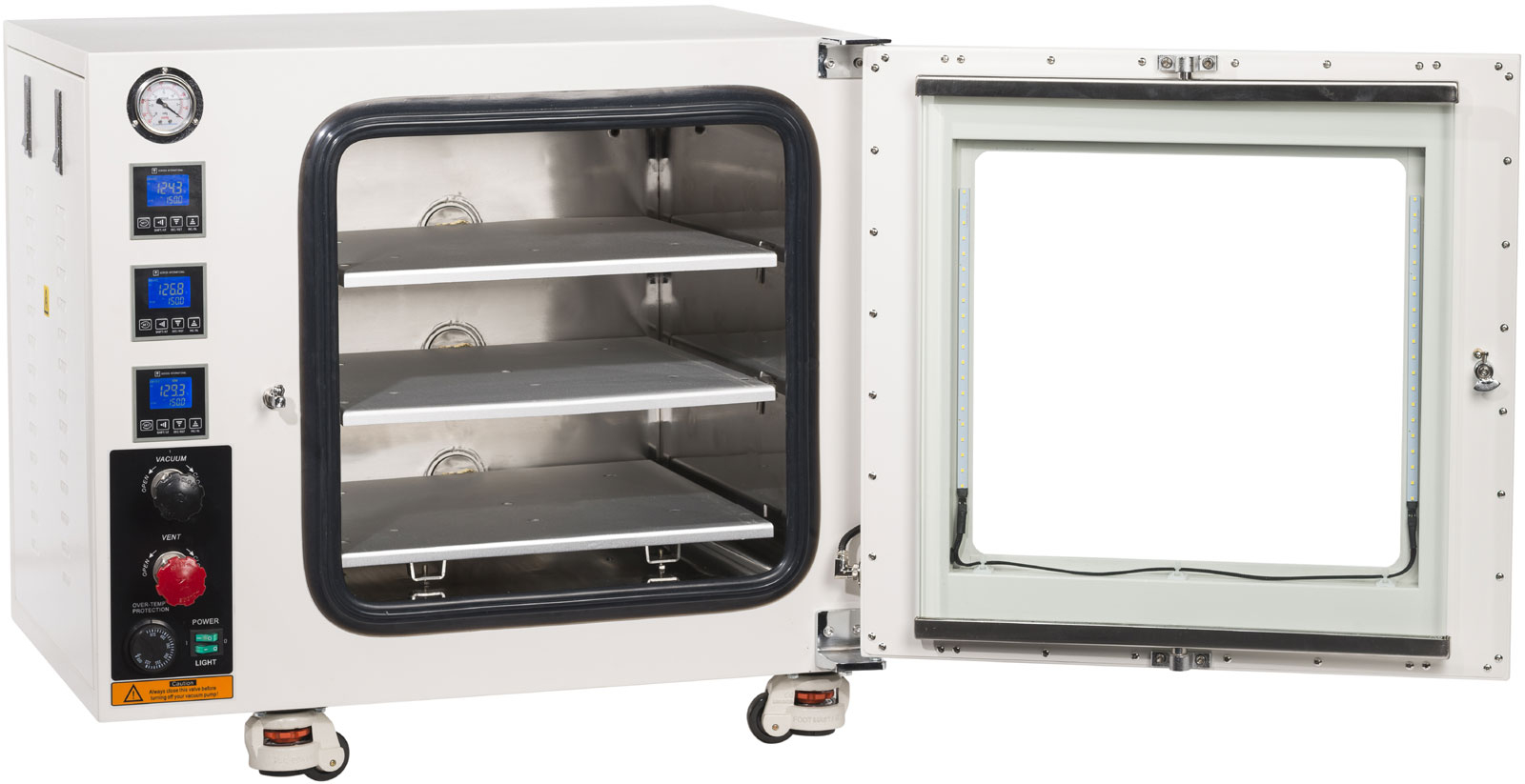

 Heated shelves: 3 non-removable aluminum shelves, 17.5 x 17.25" (WxD) each
 Optional stackable aluminum shelves: 17.5 x 17.25 x 2.25" (WxDxH)
 Total area without stackable shelves: 302 x 3 = 6 sq ft or 906 inch2
 Total area with 3 stackable shelves: 302 x 6 = 12 sq ft or 1812 inch2

Distance between shelves (without stackable shelves): 4.75 inches
 Distance between shelves (with 3 stackable shelves): 2.25 inches
 Max. load capacity per shelf: 20lbs
 Door gasket material  Silicone or Viton
 Observation window  1/2" tempered safety glass
 Safety
 Built-in circuit breaker
 Overheat shutoff protection
 Secondary over-temp protection dial
 In-door lights  White LED
 Warranty  2 years
 Compliance  UL (E482564), CE
 Download  Product brochure











Standard Package

 Part Description

 Quantity

Part Image

 Ai UL Certified 3.2 cu ft Vacuum Oven
1 pc

 KF25 Quick Clamp and Centering Ring 2 sets
 Inlet Filter with KF25 Connection 1 pc
 User's Manual 1 pc
