**PLEASE CALL FOR AVALIBILITY, ITEM MAY DROP SHIP**
FOUR ALUMINUM SHELVES INCLUDED WITH OVEN PURCHASE. SST (stainless steel) tubing refers to internal tubing and compression. external tubing not included.
Introducing the new UL/CSA certified AccuTemp 1.9 cubic foot Across International vacuum oven, this certification is required by many municipalities, and it also provides a higher standard of equipment safety and lifespan. Also come standard are the secondary over-temp protection dial, all stainless steel tubing/compression fittings, stainless steel vacuum/vent valve, oil-filled vacuum gauge, 5 sided pad heating technology and two year warranty. The thermal-conductive aluminum pan shelves provide excellent temperature uniformity inside the chamber, while our 3rd gen LCD low proportional gain temperature controllers keep your oven temperature within +/- 1°F accuracy, in either °F or °C.

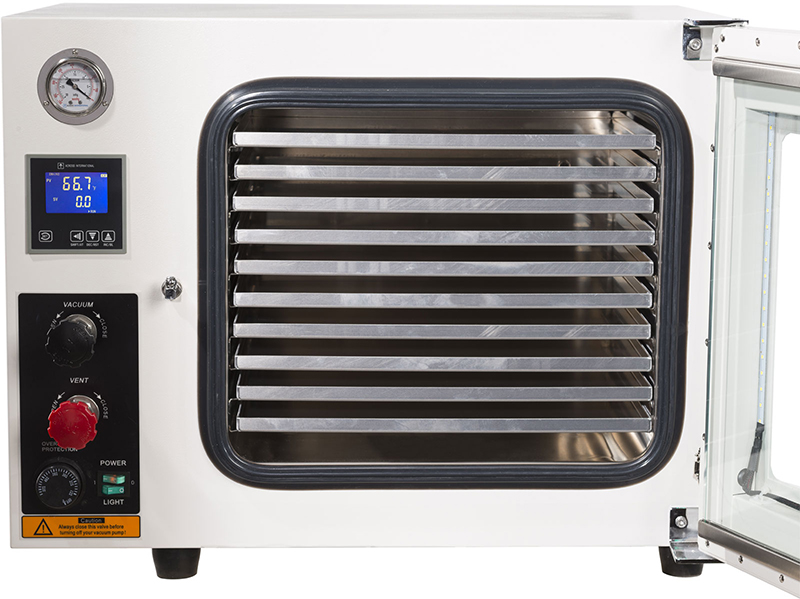

AccuTemp-19 series digital desktop vacuum ovens feature a 1.9 cubic foot easy-to-clean stainless steel chamber with a large dual-layer tempered glass safety window and small footprint. These ovens can greatly reduce drying time by maintaining a consistent vacuum level within the chamber.
This tubing oven goes through a 2-time 24-hour vacuum leak test, and is 100% quality controlled in New Jersey or Nevada before leaving our facilities.
Attention: Before initial use, run oven at 400°F without vacuum for 15 minutes to burn off any residue that may have been introduced during the manufacturing process.
IMPORTANT! NEVER LEAVE YOUR OVEN UNATTENDED WHILE OPERATING. Across International or USA Lab Equipment are not responsible for any loss of material inside of the oven.
Features
• Oil-filled mechanical vacuum gauge provides more accurate reading, longer gauge life and minimizes shipping damage.
• All stainless steel vacuum and vent valves gives you cleaner connection, more accurate control and long term durability.
• New 5 sided pad heating technology and aluminum shelves provide excellent temperature uniformity and faster heating rates (25% faster in our lab test).
• Adjustable gas back fill capability with needle valve and vent port.
• 3rd gen LCD low proportional gain temperature controllers keep your oven temperature within +/- 1°F accuracy, in either °F or °C
• Best choice for the curing and converting of oil extracts. With deep vacuum level, they can operate at temperatures which allow the degassing/purging process to occur rapidly, thus increase productivity and allow for the production of superior quality products with minimal processing time.
• Dual layer observation window with 1/2" tempered safety glass.
• 3" thermal insulation prevents heat loss and minimizes the enclosure's outer surface temperature.
• Easy-to-clean stainless steel interior for exceptional durability and ease of maintenance.
• Built-in alarm alerts you when oven has been shut down by safety circuitry due to out of range temperature.
• All ovens shipped from our New Jersey or Nevada location for quick delivery, and come with two year warranty and lifetime US-based parts and service support.
• Guaranteed US based phone and email assistance within 30 minutes from our engineers.
Manufactured in accordance with
CSA C22.2
ISO 9001:2000
ISO 12100-1:2003, ISO 12100-2:2003
EN1050:1996, EN294:1992, EN60204-1:2006
CE
Vacuum Oven Specifications
THIS IS 110V ONLY IF YOU NEED 220V PLEASE CONTACT US
| Electrical Requirements |
110V +/-10% 50/60Hz 1-PH 13.6A, 1500 watts or 220V +/-10% 50/60Hz 1-PH 6.8A, 1500 watts |
| Chamber |
Size: 16.5 x 14.5 x 14" Material: Stainless steel Capacity: 1.9 cubic foot |
| Temperature Control | Controller: 3rd gen low proportional gain, microcomputer PID controlled with LCD display Range: ambient to 480°F Display units: Fahrenheit or Celsius Accuracy: +/- 1°F Uniformity: +/- 6% of setpoint Dwelling timer range: 1 to 9999 minutes Warm-up time to 100°F: 45 minutes |
| Vacuum |
Ultimate vacuum level: better than 500 microns/millitorrs (may vary based on your altitude) Mechanical gauge range: 0 to 30 inch mercury Vacuum port: KF25 flange x 1 Vent port: 3/8" hose barb |
| Weight | Unit: 140 Lbs, shipping: 240 Lbs |
| Dimensions (WxDxH) | Unit: 28 x 20 x 21.75" With handle and vacuum port: 28 x 23 x 21.75" Shipping: 32 x 28 x 29" |
| Shelves |
Included with oven purchase: 5 aluminum slide-in shelves Size: 16 x 14.25 inches Total area: 228 x 10 = 16 sq ft or 2,280 inch2 Distance between shelves: one inch |
| Door Gasket Material | Silicone |
| Observation Window | 1/2" tempered safety glass |
| Safety |
Built-in circuit breaker, controller overheat protection, secondary over-temp protection dial |
| In-Door Lights | White LED |

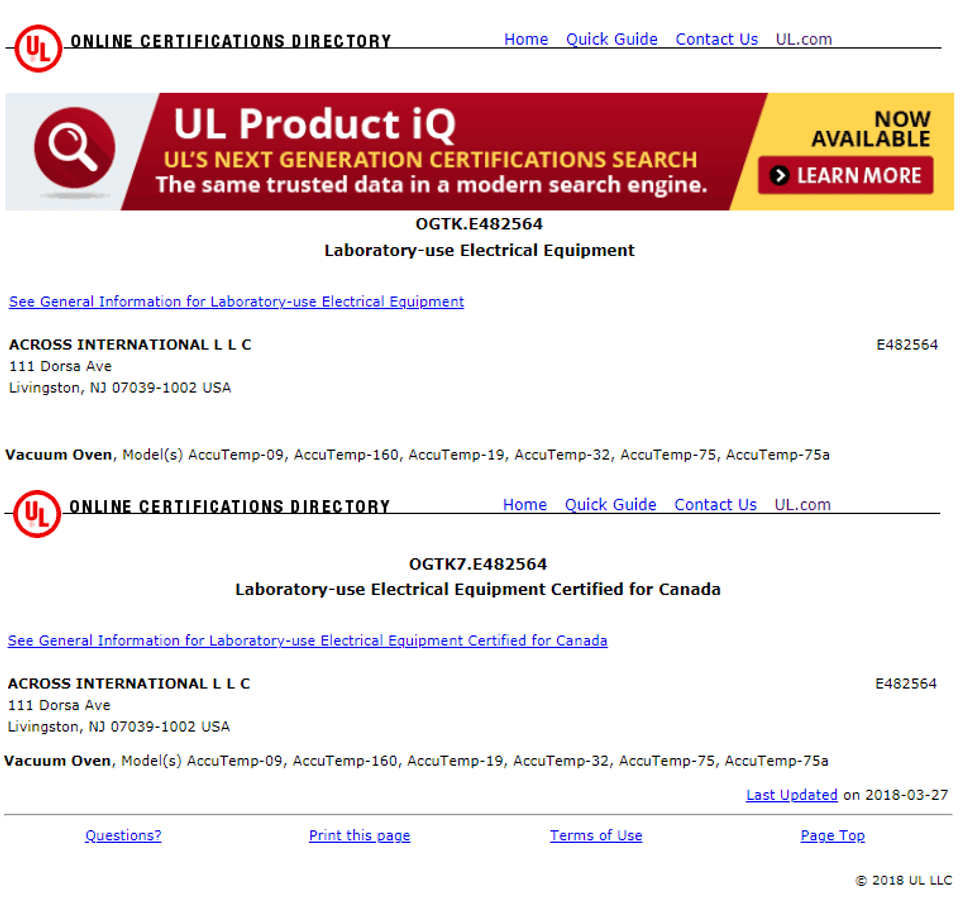

| Compliance | UL (E482564), CSA, CE |
| Download | Brochure |
Standard package
|
Part description |
Quantity |
Part image |
| Ai UL/CSA Certified 1.9 cu ft Vacuum Oven |
1 pc |
|
| Aluminum Shelf |
5 pcs |
|
| KF25 Quick Clamp and Centering Ring | 1 set |
 |
| User's Manual | 1 pc |
|
