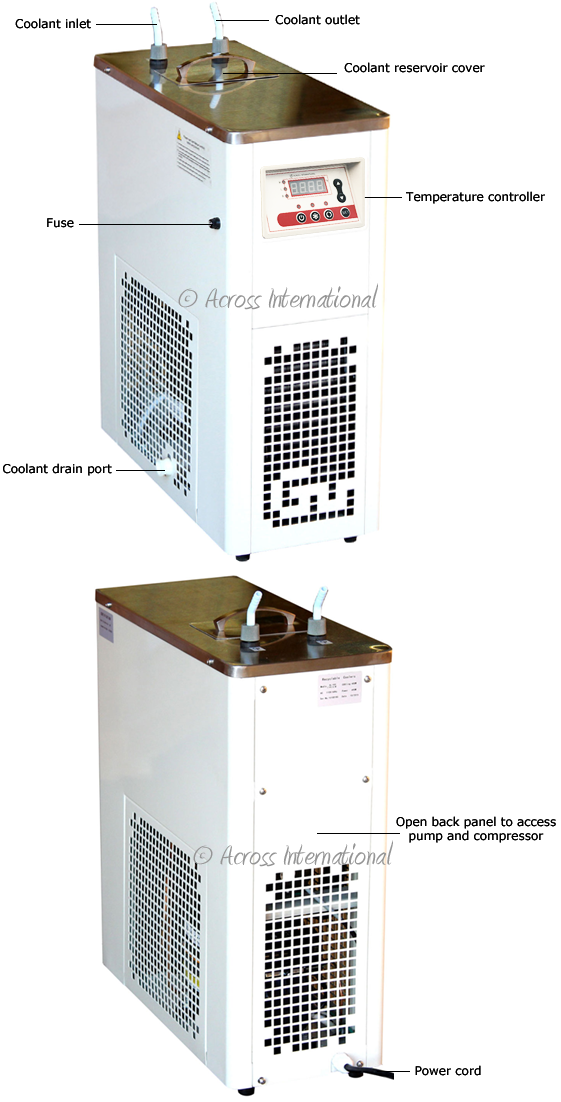

Ai -15°C 3L Compact Recirculating Chiller
*USED ITEM, 30 DAY WARRANTY*
Ai C15 series recirculating chillers are the true thermostatic control laboratory chiller, this closed laboratory chiller is ideal for applications such as cooling rotary evaporators, analytical instrumentation, laser etching, ICP, vacuum systems, plasma etching and jacketed reactors. This system can also be used as a replacement to tap water cooling in laboratory applications.
Ai C15 are compressor-based recirculating chillers that offer outstanding performance and high reliability as well as quiet operation and ease-of-use. Powerful force/suction pump provides constant flow rates, while microprocessor PID controller gives you the ideal solution when you need precise temperature control or cooling below ambient temperature.
IMPORTANT! -15C/5F ULTIMATE TEMPERATURES ARE TESTED UNDER EMPTY LOAD CONDITION (NO ROTARY EVAPORATORS OR JACKETED REACTORS ATTACHED).
Features
Model |
C15-3-2L |
Temperature range |
Ambient to -15°C (No load) |
Electrical requirements |
110V 60Hz 1-PH, 500 watts |
Compressor |
Make: Embraco (Brazil) |
Power: 115V 60Hz 1 HP |
|
Number of compressor: one |
|
Refrigerant: R404A (Eco-friendly) |
|
Cooling capacity |
@0°C: 400W |
Recirculating pump |
Make: Shanghai XinXiShan MP-20R (China) |
Type: Centrifugal |
|
Output: 15 watts |
|
Power: 110V 50/60Hz 310mA 2650-3100 rpm |
|
Pumping speed: 17 L/min or 4.5 gallon/min |
|
Maximum head: 6.6 feet or 2 meter |
|
Maximum pressure: 2.9 psi |
|
Reservoir |
Dimensions: 5 x 11 x 5" (WxDxH) |
Material: Type 304 stainless steel, polished |
|
Chilling fluid connection: 3/8" hose barb x 2 |
|
Capacity: 3 liters or 0.8 gallons |
|
Temperature controller |
Type: Digital microprocessor PID controlled |
Display unit: Celsius °C |
|
Temperature accuracy: +/- 2°C |
|
Temperature range: Ambient to -15°C |
|
Temperature sensor type |
Pt100 |
Housing |
Powder coated type 42 stainless steel |
Recommended coolant |
For 50°F/10°C or higher: |
distilled water |
|
Between 50°F/10°C and 5°F/-15°C: |
|
50% ethylene glycol + 50% distilled water |
|
Working environment |
-15°C/5°F to 25°C/77°F, at <66% humidity |
Built-in swivel casters |
No |
Unit/shipping dimensions |
16 x 9 x 22" / 24 x 14 x 30" (WxDxH) |
Unit/shipping weight |
60 Lbs / 105 Lbs |
Safety |
Compressor over-temp protection |
Short circuit and ground protection |
|
Over-current protection |
|
Compressor delay start protection |
|
Recommended for rotary evaporators |
2L rotary evaporators |
