TRI-CLAMP FITTING SIZES
|
Tube Outer Diameter |
Flange Outer Diameter |
Tube Inner Diameter |
|
1.5" |
1.98" |
1.37" |
|
2" |
2.52" |
1.87" |
|
3" |
3.58" |
2.87" |
|
4" |
4.68" |
3.83" |
|
6" |
6.57" |
5.78" |
|
8" |
8.57" |
7.78" |
|
10" |
10.57" |
9.73" |
|
12" |
12.57" |
11.81" |
|

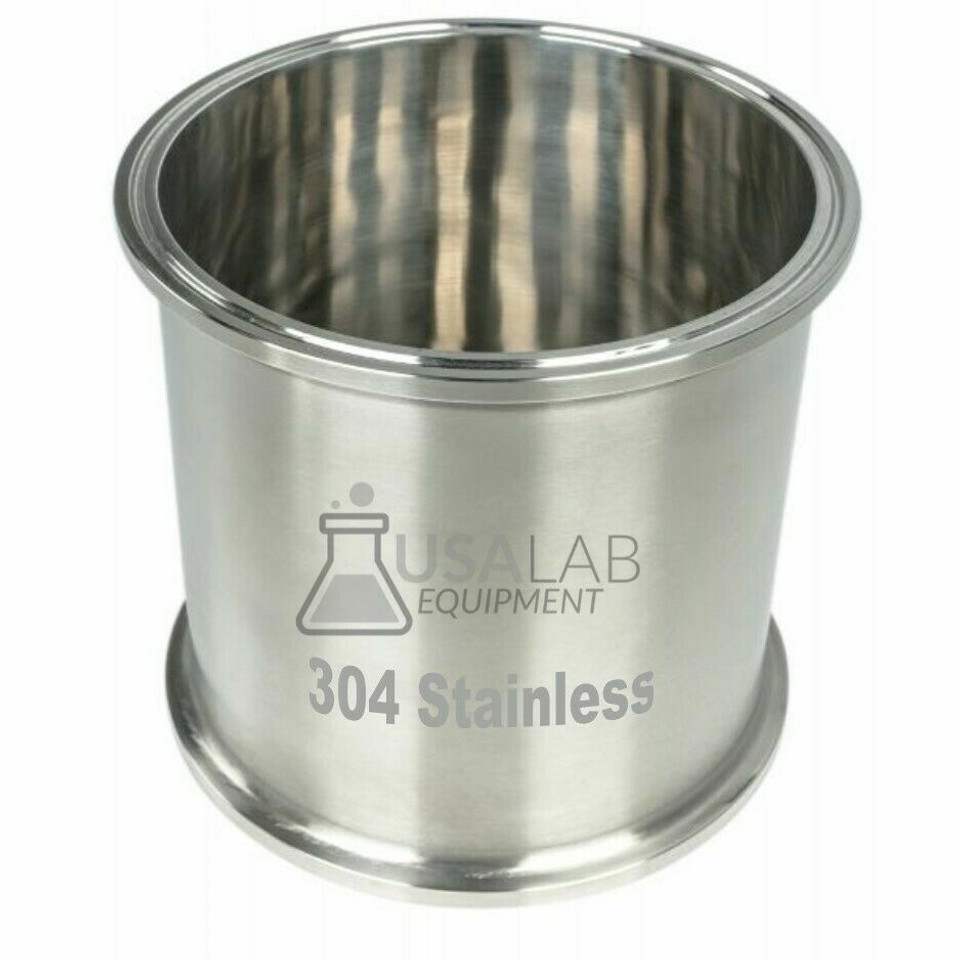

SPOOL8X8 Specifications |
|
|
Tri-Clamp Size |
8" |
|
Material |
304 Stainless Steel |
|
Standard |
3A High Polish |
|
Spool OD |
8" |
|
Spool ID |
7.8" |
|
Flange OD |
8.6" |
For Technical Support, Questions, or Other Issues Please Email or Call Us!
Fittings and steel do NOT carry any warranty. Fittings and steel items with a defect or other issue must be identified within 30 days of arrival and USA Lab MUST be contacted. After 30 days, there will be no replacements sent for fittings or steel items with a defect or issue. Cross threading, misuse, improper storage, or improper care of fittings/steel are considered user error and are not covered under warranty.
