TRI-CLAMP FITTING SIZES
|
Tube Outer Diameter |
Flange Outer Diameter |
Tube Inner Diameter |
|
1.5" |
1.98" |
1.37" |
|
2" |
2.52" |
1.87" |
|
3" |
3.58" |
2.87" |
|
4" |
4.68" |
3.83" |
|
6" |
6.57" |
5.78" |
|
8" |
8.57" |
7.78" |
|
10" |
10.57" |
9.73" |
|
12" |
12.57" |
11.81" |

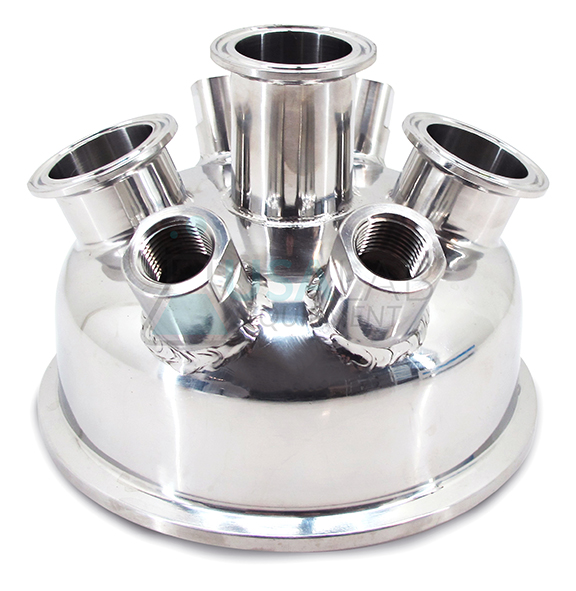

Our Hemispherical Lid comes with various Tri-Clamp and NPT fittings to allow for maximum customization. The Tri-Clamp fitting on the stainless steel lid allows users to attach to numerous spools, dewaxing columns and other fittings. The versatility of these lids makes them a preferable solution for many consumers.
|

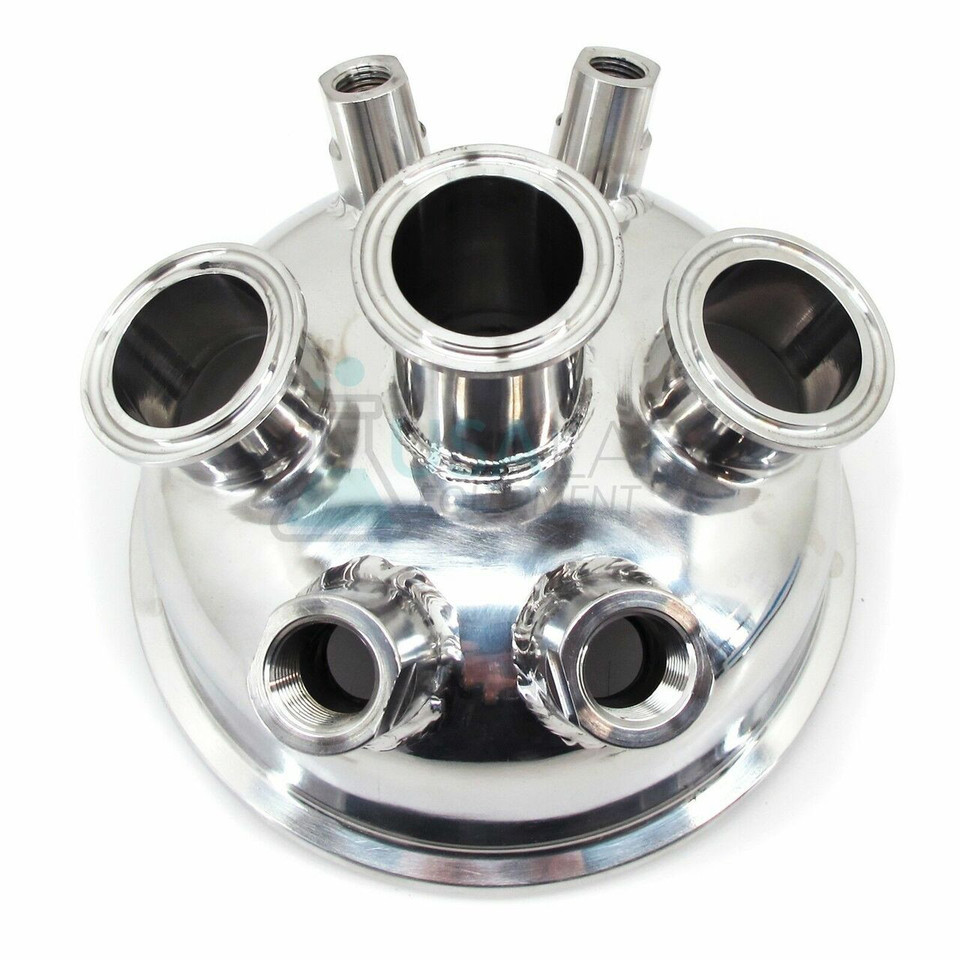

HL-6IN-12NPT SPECIFICATIONS |
|
•Material: 304 Stainless Steel |
|
•Top Connections: (2x 1/2" FNPT) (2x 1/4" FNPT) (3x 1.5" TC clamp) |
|
•Size: 6" x 6" x 5.5" |
|
•Weight: 3lb. 10oz. |
|
•SKU: HL-6IN-12NPT |
For Technical Support, Questions, or Other Issues Please Email or Call Us!
Fittings and steel do NOT carry any warranty. Fittings and steel items with a defect or other issue must be identified within 30 days of arrival and USA Lab MUST be contacted. After 30 days, there will be no replacements sent for fittings or steel items with a defect or issue. Cross threading, misuse, improper storage, or improper care of fittings/steel are considered user error and are not covered under warranty.
