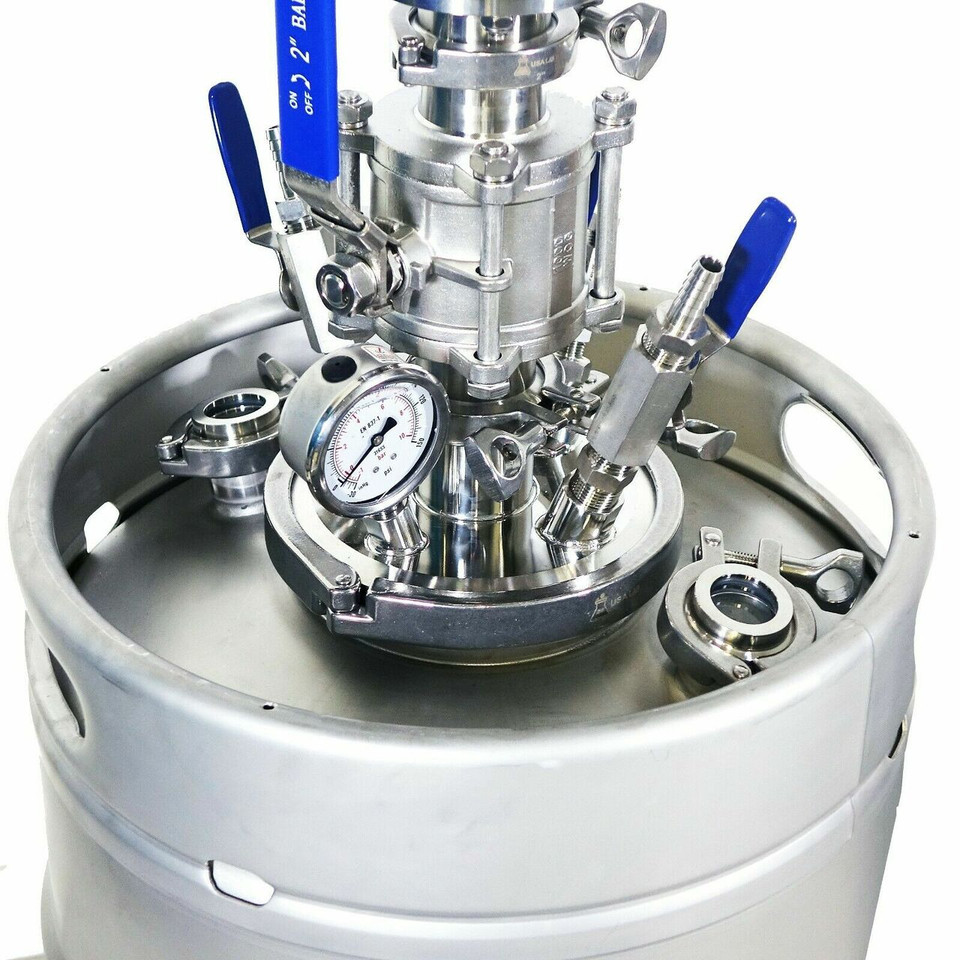

12BUCHNERKEG SPECIFICATIONS |
|
•Material: 304 Stainless Steel |
|
•Side Connections: 1.5" TC (1.5" to KF25 Included) |
|
•Top Connection: 2x (3" TC for Glass), 2x (1/2"MNPT to 1/2" Barb), 1x (1/4"MNPT to 1/4"MJIC for Nitrogen), 1x (1/4" FNPT for Gauge) |
|
•Keg Connection: 2x (1.5" TC for Glass), 2x (1/2" FNPT to 1/2" Barb), 1x (1/2" FNPT to 1/4"MJIC for Nitrogen or Vacuum), 1x (1/4" FNPT for Gauge), 1x (2" TC for Top Port) |
|
•Keg Bottom Connection: 1.5" TC to 1/2" Barb |
|
•Buchner Capacity: 22L |
|
•Keg Capacity: 50L or 100L |
|
PACKING LIST |
|
|
50L or 100L Keg with 1.5" TC Sight Glass |
1 pc |
|

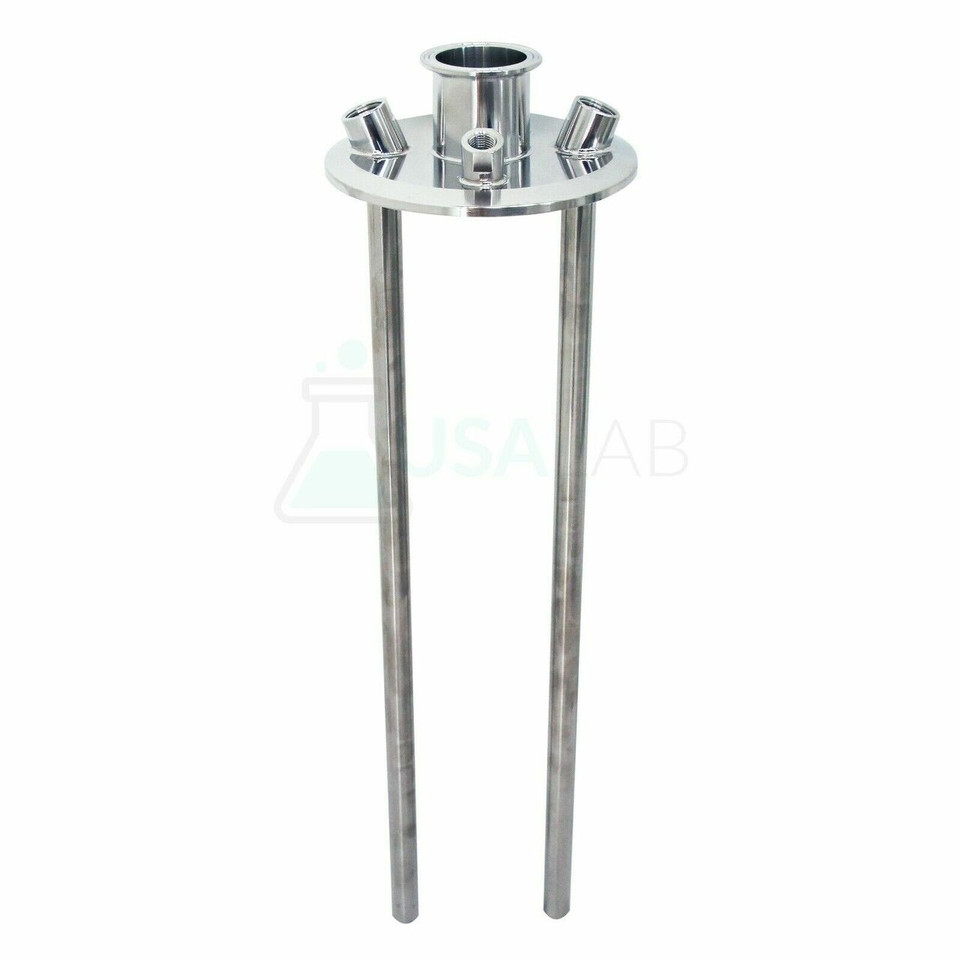

50L or 100L Keg Lid with Dip Tubes |
1 pc |
|
2" TC Ball Valve |
1 pc |
|
2" Short Sight Glass |
1 pc |
|
2" TC to 12" TC Hemi Reducer |
1 pc |
|
12" Filter Plate Kit |
1 pc |
|
12" x 12" TC Spool |
1 pc |
|
12" Hemi Lid with 2x 3" TC |
1 pc |
|
1.5" Borosilicate Sight Glass |
2 pcs |
|
2" Borosilicate Sight Glass |
2 pcs |
|
1.5" Buna-N Gasket |
1 pc |
|
2" Buna-N Gasket |
2 pcs |
|
12" Buna-N Gasket |
3pcs |
|
1.5" Standard Pressure Tri-Clamp |
3pcs |
|
2" Standard Pressure Tri-Clamp |
3 pcs |
|
4" Standard Pressure Tri-Clamp |
1 pc |
|
12" Standard Pressure Tri-Clamp |
3 pcs |
|
1/4" Superlok Valve |
2 pcs |
|
1/2" Superlok Valve |
5 pcs |
|
1/2" MNPT to 1/2" Barb |
5 pcs |
|
1/4" MNPT to 1/4" MNPT |
1 pc |
|
1/2" MNPT to 1/4" MNPT |
1 pc |
|
1/4" MNPT to 1/4" MJIC |
2 pcs |
|
1/2" MNPT to 1/2" MNPT |
5 pcs |
|
1/4" Gauge |
2 pcs |
|
1.5" TC to 1/2" FNPT |
1 pc |
